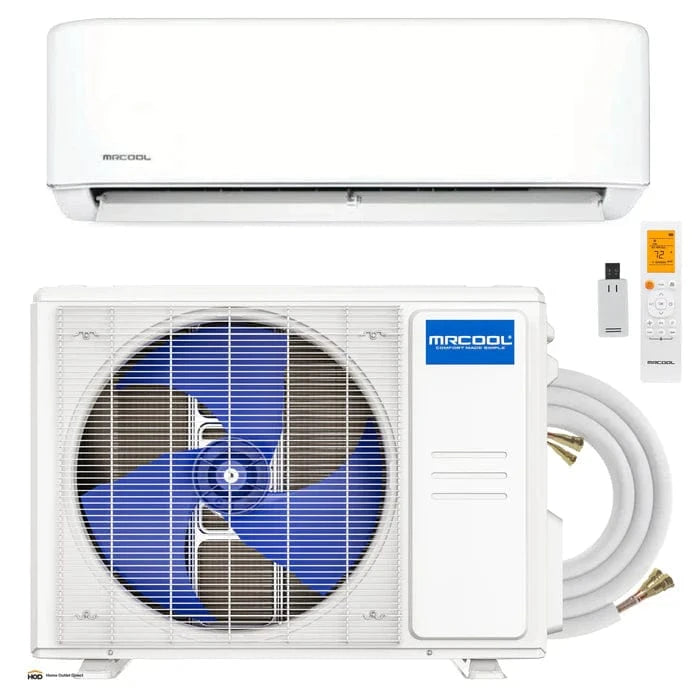

MRCOOL Advantage 5th Gen 36,000 BTU Single Zone Mini Split Complete System with 16 Ft. Line Set, 230V, Wall Mounted (A-36-HP-230D-O)

MRCOOL Advantage 5th Gen 36,000 BTU Single Zone Mini Split Complete System with 16 Ft. Line Set, 230V, Wall Mounted (A-36-HP-230D-O)

MRCOOL Logo
Top Authorized Dealer
Manufacturer Warranty Included
Customers rate us 4.8/5 based on 477 reviews.
SKU A-36-HP-230D-O
$2,303.00 - $2,303.00
$2,303.00
$2,303.00 - $2,303.00
$2,303.00
Availability:
in stock, ready to be shipped

Get it between -

Profile Pic

Have a question? Talk to one of our trusted experts today!

Instant Live Chat: Chat IconChat Now

Call or Text us: Phone Icon 415-481-4075

Price Match Policy

Price Match

Here at OffGrid Living, we want to offer you the best prices online.

If you happen to find a lower price for the same product, we will guarantee to match their price or beat their price. Note, this does not apply to all products in the store. Please reach out to us via email or chat if you want a price match or price beat.

For the policy to apply, please send us a screenshot, link, or any other evidence of the product being priced lower than ours before making the purchase.

Refer to our Price Match Policy Rules.

Refunds & Returns Policy

At OffGrid Living, we are proud to have the best refund and return policies in the industry. If you’re not satisfied with your purchase for any reason, you may return it to us within 30 days for a refund.

If you have a problem with our order (there are missing components, damages, or the product is not functioning), please reach out to us as quickly as possible. Some of the problems can be resolved by going through the product manual or the product FAQs.

Refer to our Refunds & Return Policy for more details.

Shipping & Delivery

Order Processing

Once we receive your order, we will send you a confirmation email. Then we will process the order by confirming that the product is in stock and ready for shipment. If any of the items in your order are back-ordered, we will reach to you via email or phone and you may choose to either wait or receive a 100% refund.

Please allow 1-3 days for processing your order.

Shipping

We ship to the lower 48 continental United States only at this time.

Shipping times and shipping method will depend on the specific product and brand you purchase. If you have any shipping question, feel free to ask on the chat or email us at info@offgridlivingsolutions.com.

We will send tracking information by email the same day the shipping tracking number is created/available.

Before you sign the shipping bill, please THOROUGHLY INSPECT YOUR ITEM. Signing for the receipt of a damaged product removes the liability of the shipping company and OffGrid Living Solutions. Once you accept your shipment as non-damage, your item is your property.

Delivery time

Shipping Timeline listed above is an estimate. Please call or message the web chat for precise ETAs.

MRCOOL Advantage 5th Gen 36,000 BTU Single Zone Mini Split Complete System with 16 Ft. Line Set, 230V, Wall Mounted (A-36-HP-230D-O)

Description

The MRCOOL® 5th Generation 36k BTU Advantage Mini-Split delivers powerful, energy-efficient heating and cooling for spaces up to 1,550 sq. ft. Ideal for larger rooms, open layouts, or multi-use areas, this system includes a sleek, WiFi-enabled indoor air handler and a high-performance outdoor condenser. With eco-friendly R-454B refrigerant, smart controls, and quiet operation, the Advantage Bundle offers reliable year-round comfort with a professional-grade finish.

Features:

  • Powerful Whole-Room Coverage: Effectively heats and cools areas up to 1,550 sq. ft.—perfect for open-plan homes, large bedrooms, or workshops.
  • Smart Home Ready: Built-in Wi-Fi connectivity allows control via the MRCOOL® Smart HVAC Controller® app, Amazon Alexa, or Google Assistant for hands-free operation.
  • Efficient & Eco-Friendly: Operates with R-454B refrigerant, which offers ~80% lower Global Warming Potential (GWP) than previous generations, helping reduce environmental impact.
  • High Efficiency Ratings: Achieves a SEER2 rating of 18 and an HSPF2-4 rating of 8.5 for efficient year-round climate control with lower utility costs.
  • Quiet Comfort: Designed for low-noise operation to ensure a peaceful environment, even in large living areas or shared spaces.
  • Gold Fin® Protection: Outdoor condenser is coated with corrosion-resistant Gold Fin®—ideal for coastal regions or harsh weather conditions,
  • Follow Me® Technology: The included remote features MRCOOL’s Follow Me® function, which senses temperature at your location for more personalized comfort.
  • Built-In Safety & Diagnostics: Features advanced functions like refrigerant leakage detection and timer mode for added protection and convenience.
  • Low Ambient Cooling: Reliable operation even in temperatures as low as 5°F, making it suitable for year-round use, including server rooms or greenhouses.
  • Certified Performance: AHRI certified, NEEP ccASHP listed, and CEE Tier 1 - North qualified to meet high standards of performance and efficiency.

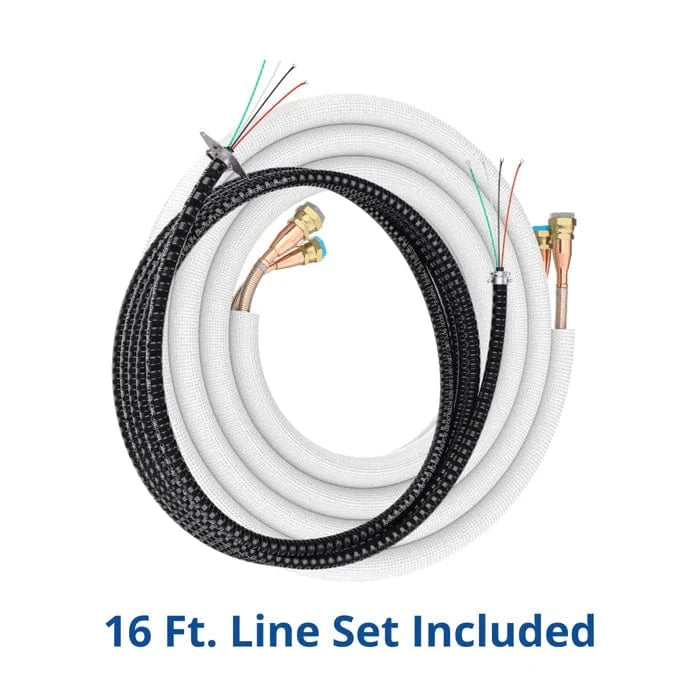

  • Complete Installation Kit: Includes a 16 ft. line set for a streamlined setup by professionals.
  • Warranty Coverage: Comes with a 1-year warranty on parts and remote, a 2-year compressor warranty, and eligibility for the MRCOOL® Care Program, which includes a Limited Lifetime warranty upon enrollment.
  • HVAC Pro Installation Required: This is not a DIY unit—must be installed by a licensed HVAC technician for optimal safety and warranty eligibility.

Product Specifications

MRCOOL Advantage 5th Gen 36,000 BTU Single Zone Mini Split Complete System with 16 Ft. Line Set, 230V, Wall Mounted (A-36-HP-230D-O) Product Specifications

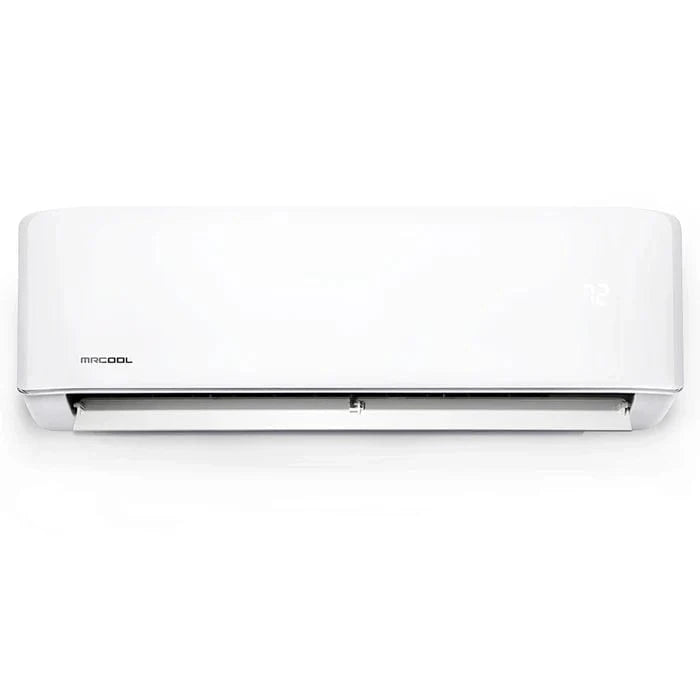

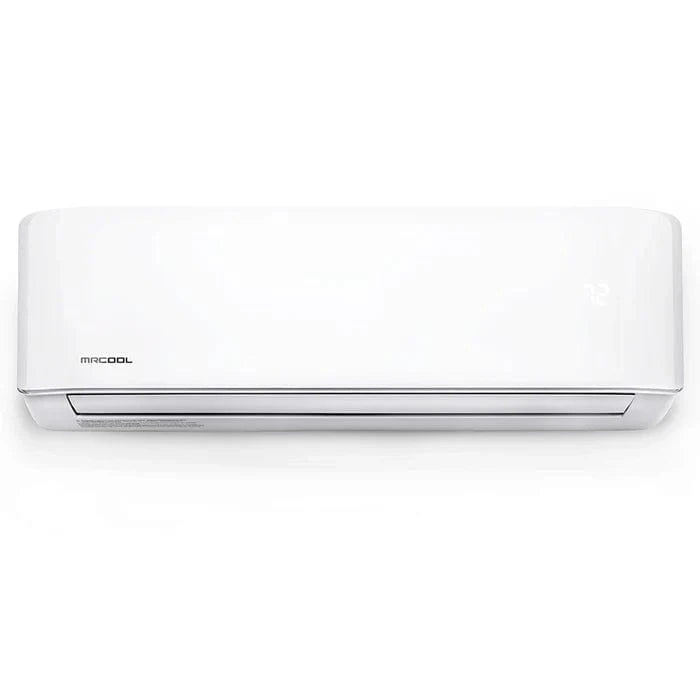

Air Handler Model A-36-HP-WMAH-230D-O
Air Handler Net Dimension (WxDxH) 49.57 x 11.10 x 14.25 inch
Air Handler noise level (Turbo/Hi/Mi/Lo/Si) 56.5/50.5/44.5/34/28
Air Handler Minimum Circuit (Disconnect)  3.0 A
Air Handler Maximum Fuse (Breaker) 15.0 A
Air Handler Net/Gross Weight 40.34/54.01  Lbs

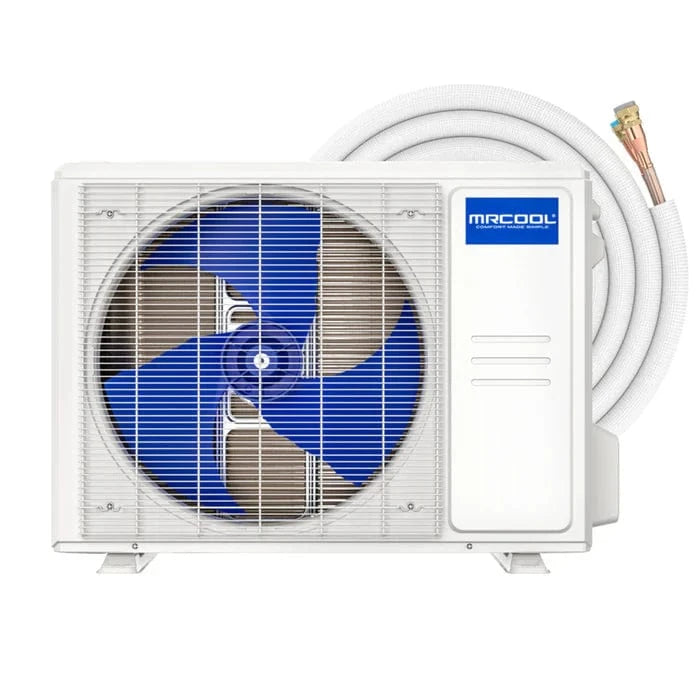

Condenser Model A-36-HP-C-230D-O
Condenser Net Dimension (WxDxH) 37.24 x 16.14 x 31.89  inch
Condenser noise level (Hi)  60.5 dB (A)
Condenser Minimum Circuit (Disconnect)  33.0 A
Condenser Maximum Fuse (Breaker) 35.0 A
Condenser Net/Gross Weight 150.35/160.27 Lbs
Cooling Capacity  36000  BTU/h
SEER2  18 BTU/w
EER2 9.0 BTU/w
Heating Capacity  36,000 BTU/h
HSPF2-4  8.5 BTU/h
HSPF2-5  6.8  BTU/h
Max Coverage Area*  Up to 1550
Power Supply  208-230V-60Hz. 1Ph
†Refrigerant R-454B 112.88
Piping Size Liquid side/Gas side 3/8”-5/8”

Product Manual

Brochure
Install Manual
Performance Data
Remote Manual
Service Manual
Warranty
Accessory Manual

Product Warranty

MRCOOL Limited Lifetime Warranty

MRCOOL distributor (hereinafter “Company”) warrants this product against failure due to defect in materials or workmanship under normal use and maintenance as follows.

All warranty periods begin on the date of original installation. If the date cannot be verified, the warranty period begins one hundred twenty (120) days from date of manufacture. If a part fails due to defect during the applicable warranty period Company will provide a new or remanufactured part, at Company’s option, to replace the failed defective part at no charge for the part.

This limited warranty is subject to all provisions, conditions, limitations and exclusions listed on the right side.

LIMITATIONS OF WARRANTIES

ALL IMPLIED WARRANTIES AND/OR CONDITIONS (INCLUDING IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE OR PURPOSE) ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, SOME STATES OR PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY OR CONDITION LASTS, SO THE ABOVE MAY NOT APPLY TO YOU.

THE EXPRESS WARRANTIES MADE IN THIS WARRANTY ARE EXCLUSIVE AND MAY NOT BE ALTERED, ENLARGED, OR CHANGED BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON, WHAT SO EVER.

Product FAQs

Q1 How do I register my warranty?

Answer: Go to here to file your warranty.

Q2 How do I find the AHRI number of my unit?

Answer: You can find links to the AHRI certificates on the documentation page at mrcool.com/documentation.

Q3 What BTU rating should I choose for my air handler?

  • This depends on the coverage area/room size you are trying to heat/cool
  • An Air Handler's BTU is how powerful the fan is. A higher BTU rating will be able to heat/cool a larger area
Air Handler BTU Coverage Area/Room Size (Sq Ft.)*
9K BTU

Up to 375 Sq. ft
12K BTU Up to 500 Sq. ft
18K BTU Up to 750 Sq. ft
24k BTU Up to 1000 Sq. ft
36k BTU  Up to 1500 Sq. ft

*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
