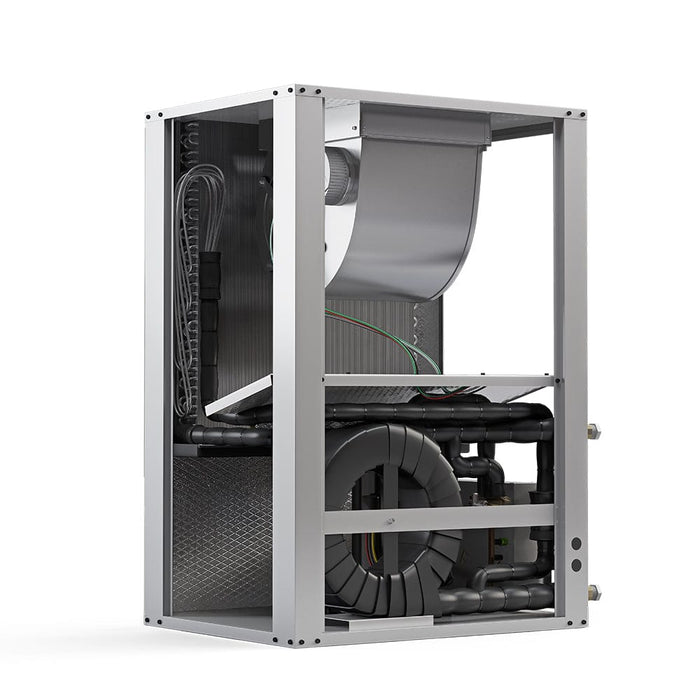

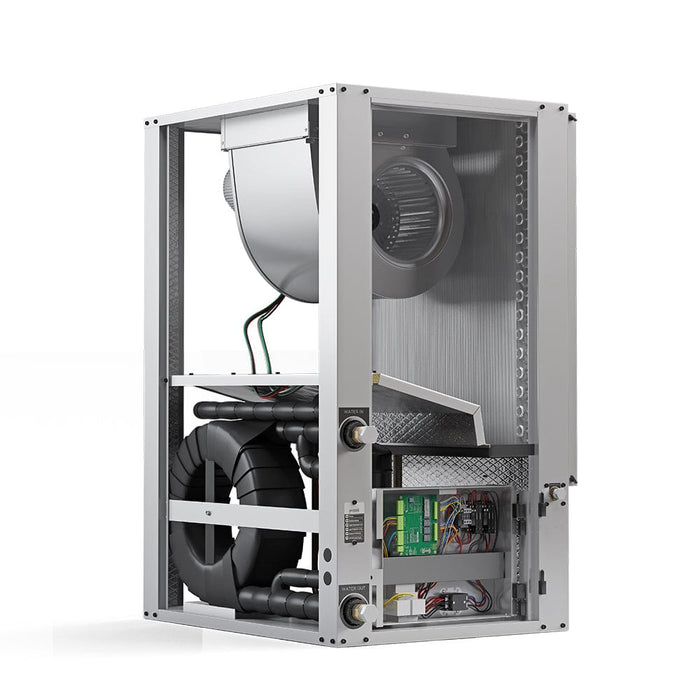

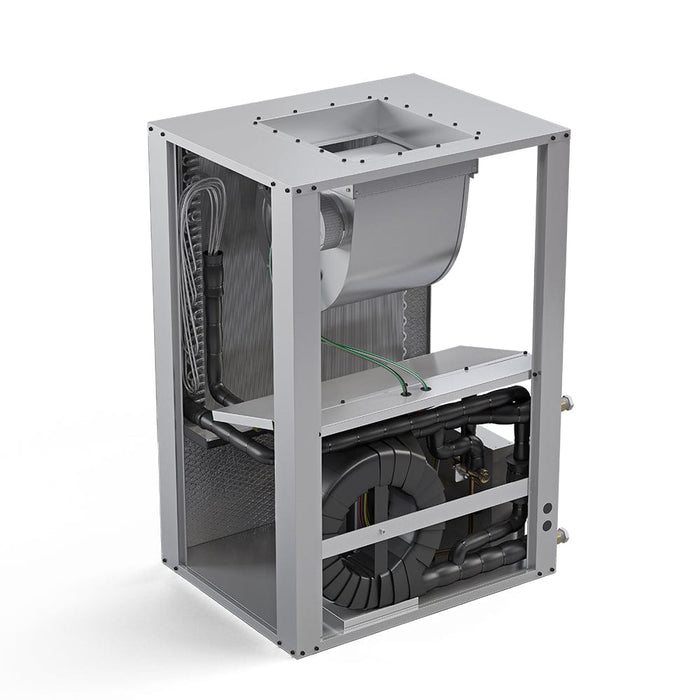

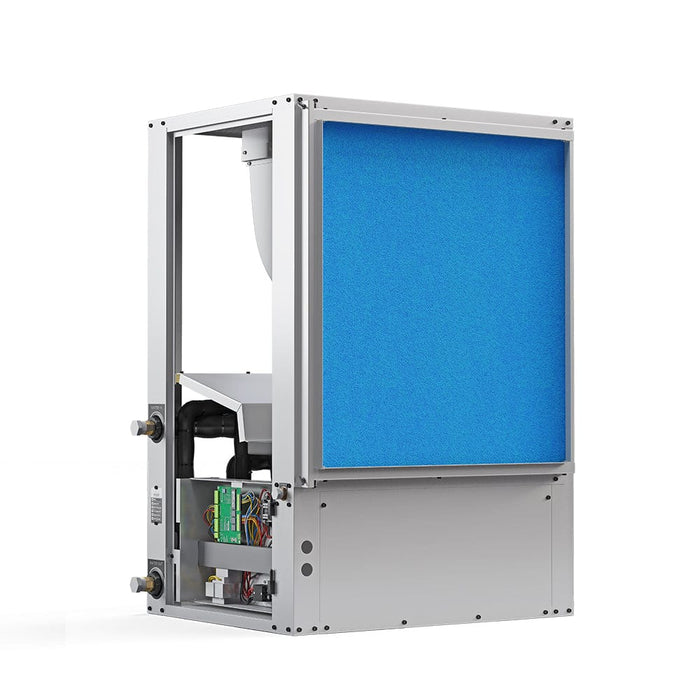

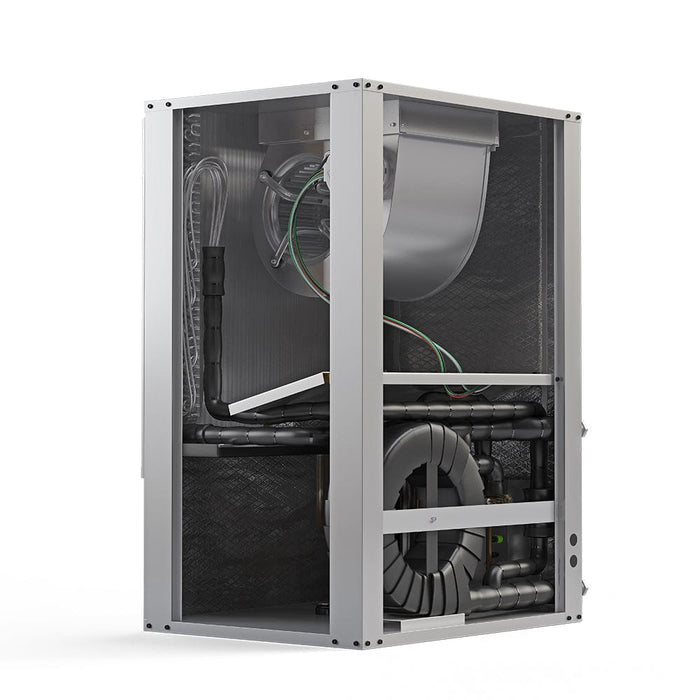

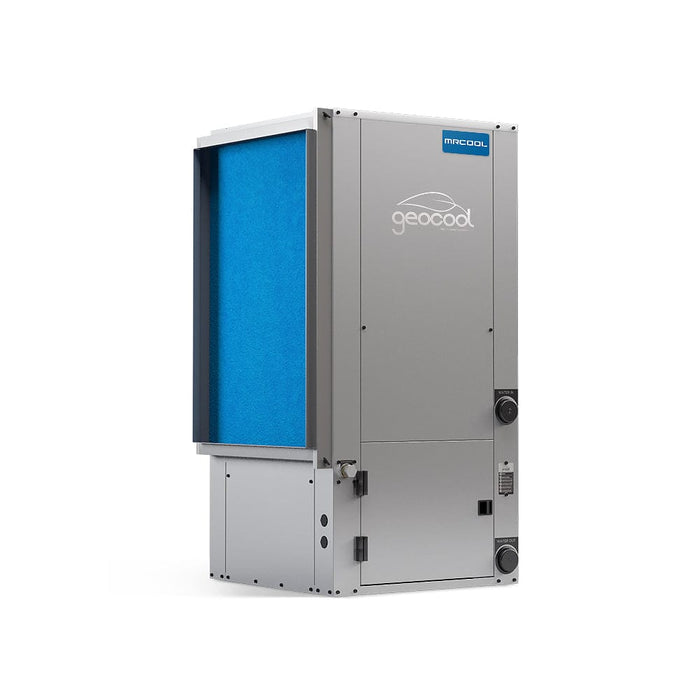

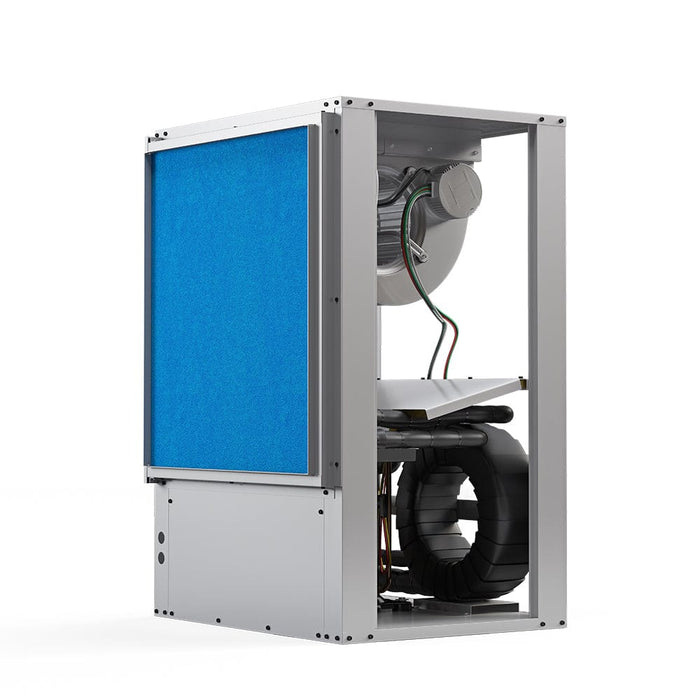

MRCOOL® 36K BTU Horizontal Two-Stage 230V 1-Phase 60Hz CuNi Coil Left Return

by MRCOOL
SKU GCHPH036TGTANXL
Original price $5,903.00 - Original price $5,903.00
Original price
$5,903.00
$5,903.00 - $5,903.00
Current price $5,903.00
Availability:
in stock, ready to be shipped

Get it between -

Price Match Policy

Price Match

Here at OffGrid Living Solutions, we want to offer you the best prices online.

If you happen to find a lower price for the same product, we will guarantee to match their price or beat their price. Note, this does not apply to all products in the store. Please reach out to us via email or chat if you want a price match or price beat.

For the policy to apply, please send us a screenshot, link, or any other evidence of the product being priced lower than ours before making the purchase.

Refer to our Price Match Policy Rules.

Refunds & Returns Policy

At OffGrid Living Solutions, we are proud to have the best refund and return policies in the industry. If you’re not satisfied with your purchase for any reason, you may return it to us within 30 days for a refund.

If you have a problem with our order (there are missing components, damages, or the product is not functioning), please reach out to us as quickly as possible. Some of the problems can be resolved by going through the product manual or the product FAQs.

Refer to our Refunds & Return Policy for more details.

Shipping & Delivery

Order Processing

Once we receive your order, we will send you a confirmation email. Then we will process the order by confirming that the product is in stock and ready for shipment. If any of the items in your order are back-ordered, we will reach to you via email or phone and you may choose to either wait or receive a 100% refund.

Please allow 1-3 days for processing your order.

Shipping

We ship to the lower 48 continental United States only at this time.

Shipping times and shipping method will depend on the specific product and brand you purchase. If you have any shipping question, feel free to ask on the chat or email us at info@offgridlivingsolutions.com.

We will send tracking information by email the same day the shipping tracking number is created/available.

Before you sign the shipping bill, please THOROUGHLY INSPECT YOUR ITEM. Signing for the receipt of a damaged product removes the liability of the shipping company and OffGrid Living Solutions. Once you accept your shipment as non-damage, your item is your property.

Delivery time

Shipping Timeline listed above is an estimate. Please call or message the web chat for precise ETAs.

MRCOOL® 36K BTU Horizontal Two-Stage 230V 1-Phase 60Hz CuNi Coil Left Return

Description

  • Qualifies for federal tax credit, and other incentives
  • Highest energy efficiency in its class
  • Safety high and low pressure switches
  • Quiet operation
  • Full featured sinusoidal eon motor control technology
  • Insulated sloped stainless steel drain pan
  • Advanced unit control board with diagnostic LEDs
  • Double O-ring water connections
  • Easy service access
  • Optional domestic water pre-heating
  • Made in the USA
  • 10 year compressor warranty

Product Specifications

MRCOOL® 36K BTU Horizontal Two-Stage 230V 1-Phase 60Hz CuNi Coil Left Return Product Specifications

EER

Ground Water (FULL) 27.20 / Ground Loop (FULL)17.86

EER PART LOAD

Ground Water (PART) 35.70 / Ground Loop (PART) 25.84

COP 47

Ground Water (FULL) 5.30 / Ground Loop 4.40 (FULL)

COP 47 PART LOAD

Ground Water (PART) 5.60 / Ground Loop 4.80 (PART)

HSPF

Ground Water Fluid Flow Rate | COOLING: (PART) 8 - 9 (FULL) / HEATING: (PART) 8 - 9 (FULL)

AFUE

Ground Loop Fluid Flow Rate | COOLING: (PART) 8 - 9 (FULL) / HEATING: (PART) 8 - 9 (FULL)

CFM

COOLING (PART) 1150 - 1350 (FULL) / HEATING (PART) 1100 - 1100 (FULL)

TONNAGE

3

COOLING CAPACITY

Ground Water (PART) 33000 - 43000 (FULL) / Ground Loop (PART) 30300 - 39000 (FULL)

HEATING CAPACITY

Ground Water (PART) 27500 - 38000 (FULL) / Ground Loop (PART) 24000 - 26900 (FULL)

VOLTAGE

230

PHASE

1

CYCLE

60

STAGE

Two-Stage

MAX FUSE BREAKER

42.1(W/O Desupe

MIN CIRCUIT AMPACITY

26.4(

COLOR

Gray

COLOR FAMILY

Gray

MAX COVERAGE AREA

1500

REFRIGERANT TYPE

R-410A

COMPRESSOR MOTOR TYPE

Scroll

BLOWER MOTOR TYPE

Axial Flux (No Shaft) BLA

BLOWER MOTOR HP

3/4

FILTER TYPE

Replaceable

FILTER SIZE

20x37

UL RECONIZED

No

UL LISTED

No

ETL LISTED

Yes

ETL CERTIFIED

No

LEED CERTIFIED

No

ASHRAE COMPLIANT

No

ENERGY STAR COMPLIANT

Yes

ENERGY STAR CERTIFIED

Yes

AHRI CERTIFIED

Yes

REGISTERED WARRANTY

10 year registered parts limited warranty & 10 year compressor warranty

BASE WARRANTY

5 year limited parts warranty

HAS BATTERIES

No

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS AEROSOL

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

RESTRICTED STATES

No

NET DEPTH

51

NET HEIGHT

23.125

NET WIDTH

25.75

NET WEIGHT

330

FREIGHT CLASS

70



Product Brochure

Product Specifications

Product Manual

Install Manual

Owner Manual

AHRI CERTS

Product Warranty

Limited Lifetime Warranty

MRCOOL distributor (hereinafter “Company”) warrants this product against failure due to defect in materials or workmanship under normal use and maintenance as follows.

All warranty periods begin on the date of original installation. If the date cannot be verified, the warranty period begins one hundred twenty (120) days from date of manufacture. If a part fails due to defect during the applicable warranty period Company will provide a new or remanufactured part, at Company’s option, to replace the failed defective part at no charge for the part.

This limited warranty is subject to all provisions, conditions, limitations and exclusions listed on the right side.

LIMITATIONS OF WARRANTIES

ALL IMPLIED WARRANTIES AND/OR CONDITIONS (INCLUDING IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE OR PURPOSE) ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, SOME STATES OR PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY OR CONDITION LASTS, SO THE ABOVE MAY NOT APPLY TO YOU.

THE EXPRESS WARRANTIES MADE IN THIS WARRANTY ARE EXCLUSIVE AND MAY NOT BE ALTERED, ENLARGED, OR CHANGED BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON, WHAT SO EVER.
