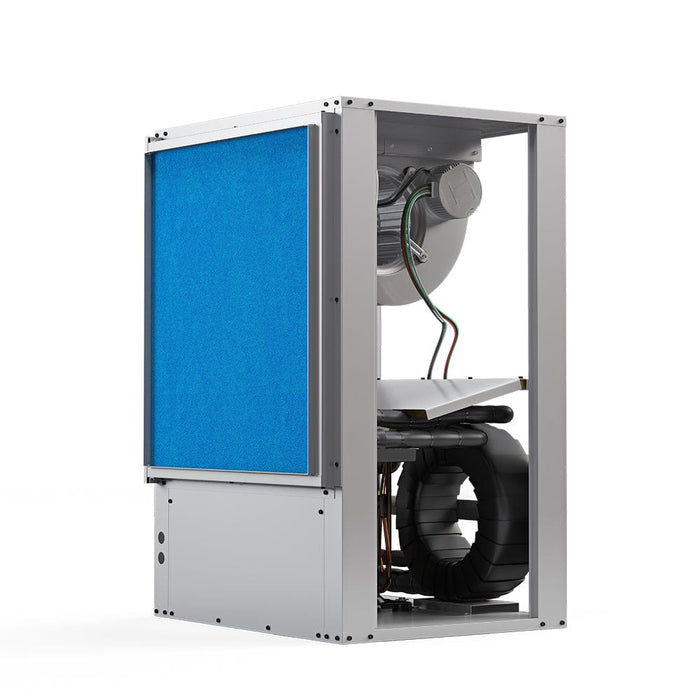

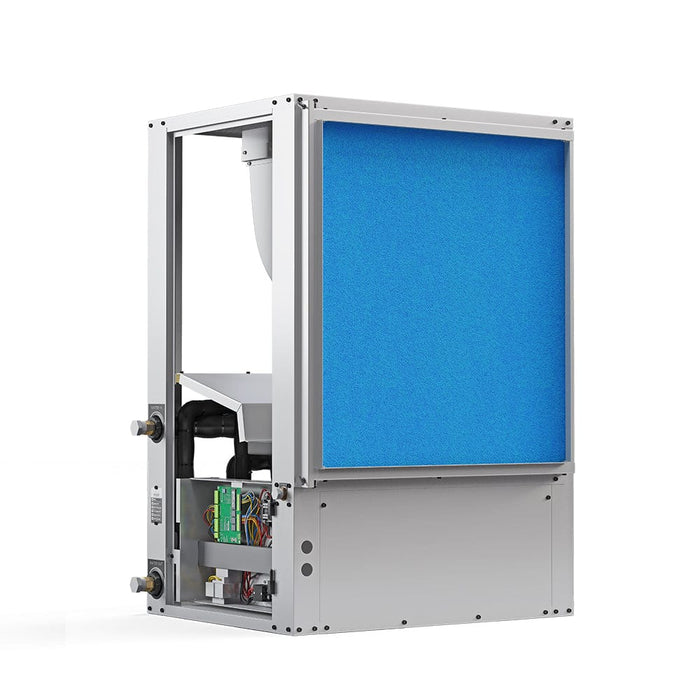

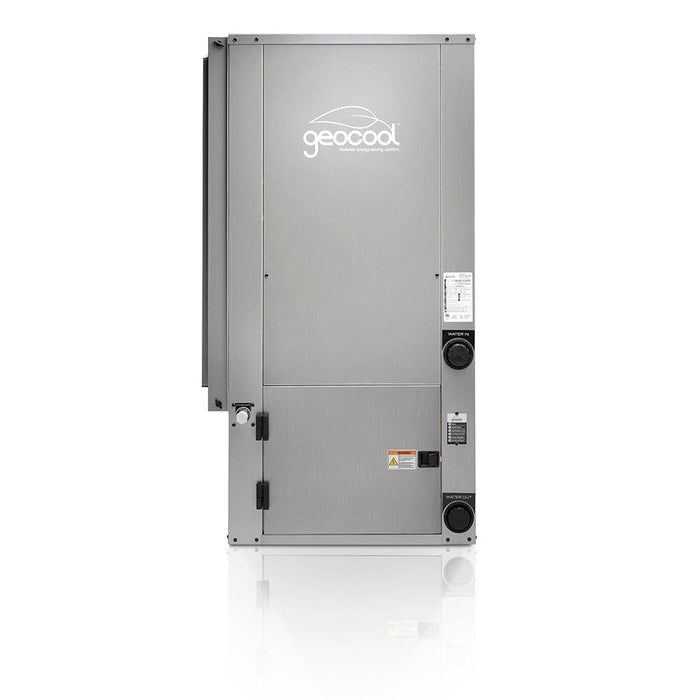

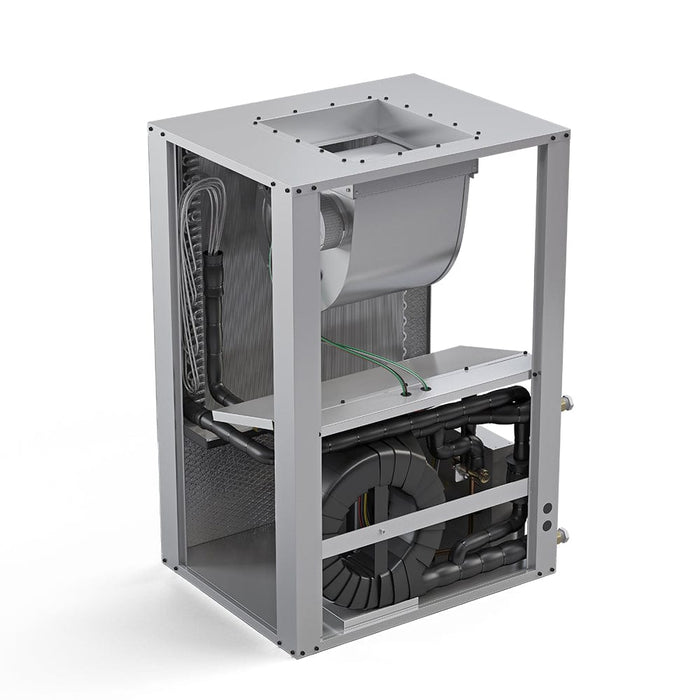

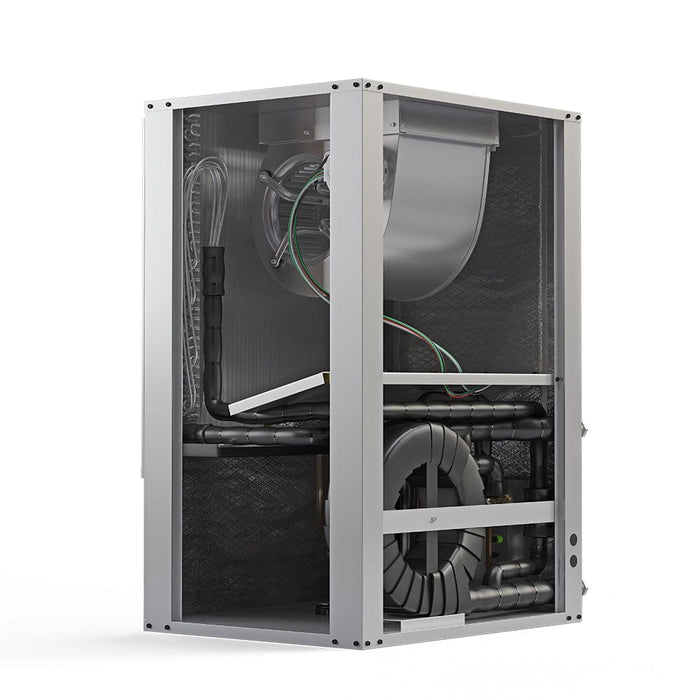

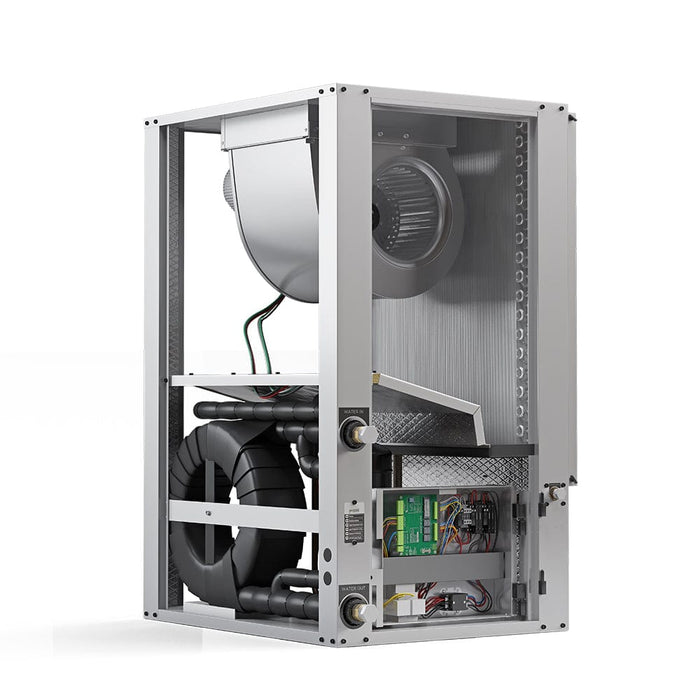

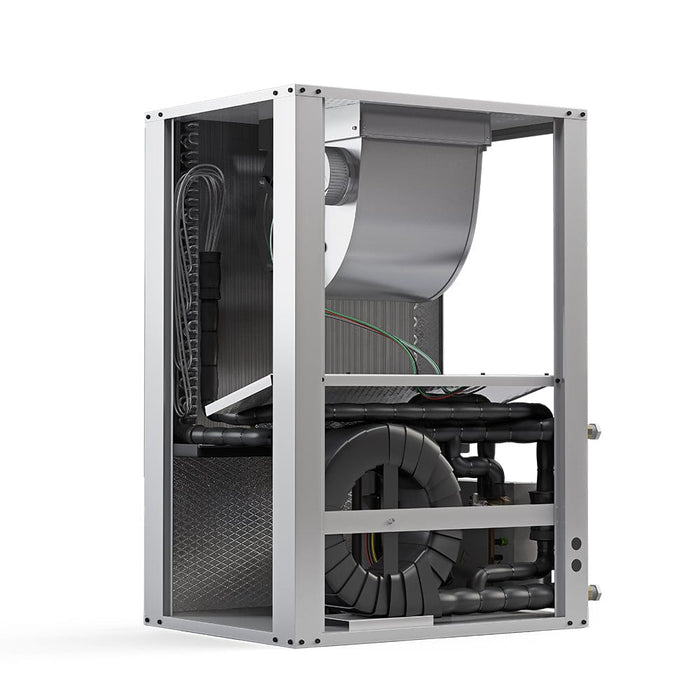

MRCOOL® 24K BTU Vertical Two-Stage 230V 1-Phase 60Hz CuNi Coil Right Return

by MRCOOL
SKU GCHPV024TGTANXR
Original price $5,547.00 - Original price $5,547.00
Original price
$5,547.00
$5,547.00 - $5,547.00
Current price $5,547.00
Availability:
in stock, ready to be shipped

Get it between -

5 Reasons to Buy From Us

1. We are an official authorized North American online distributor of the best in class sustainability products. This means all our products are shipped from warehouses throughout the United States.

2. We pride ourselves in having the best customer and user experience. If you have any questions, please reach out.

3. We offer the Lowest Prices Online. Read our Price Match Policy to see how we can help match and beat competitors' prices!

4. Purchases from our Shopify website are 100% Secure.

5. We offer Klarna to help you buy what you need as soon as possible.

Delivery time

Shipping Timeline listed above is an estimate. Please call or message the web chat for precise ETAs.

MRCOOL® 24K BTU Vertical Two-Stage 230V 1-Phase 60Hz CuNi Coil Right Return

Description

  • Qualifies for federal tax credit, and other incentives
  • Highest energy efficiency in its class
  • Safety high and low pressure switches
  • Quiet operation
  • Full featured sinusoidal eon motor control technology
  • Insulated sloped stainless steel drain pan
  • Advanced unit control board with diagnostic LEDs
  • Double O-ring water connections
  • Easy service access
  • Optional domestic water pre-heating
  • Made in the USA
  • 10 year compressor warranty

Product Specifications

MRCOOL® 24K BTU Vertical Two-Stage 230V 1-Phase 60Hz CuNi Coil Right Return Product Specifications

EER

Ground Water (FULL) 27.40 / Ground Loop (FULL) 17.95

EER PART LOAD

Ground Water (PART) 36.50 / Ground Loop (PART) 25.93

COP 47

Ground Water (FULL) 5.40 / Ground Loop 4.20 (FULL)

COP 47 PART LOAD

Ground Water (PART) 5.50 / Ground Loop 4.70 (PART)

HSPF

Ground Water Fluid Flow Rate | COOLING: (PART) 7 - 8 (FULL) / HEATING: (PART) 7 - 8 (FULL)

AFUE

Ground Loop Fluid Flow Rate | COOLING: (PART) 7 - 8 (FULL) / HEATING: (PART) 7 - 8 (FULL)

CFM

COOLING (PART) 850 - 1000 (FULL) / HEATING (PART) 800 - 950 (FULL)

TONNAGE

2

COOLING CAPACITY

Ground Water (PART) 23000 - 29000 (FULL) / Ground Loop (PART) 21900 - 27000 (FULL)

HEATING CAPACITY

Ground Water (PART) 19000 - 25700 (FULL) / Ground Loop (PART) 16500 - 18500 (FULL)

VOLTAGE

230

PHASE

1

CYCLE

60

STAGE

Two-Stage

MAX FUSE BREAKER

34.0(W/O Desupe

MIN CIRCUIT AMPACITY

21.9(

COLOR

Gray

COLOR FAMILY

Gray

MAX COVERAGE AREA

1000

REFRIGERANT TYPE

R-410A

COMPRESSOR MOTOR TYPE

Scroll

BLOWER MOTOR TYPE

Axial Flux (No Shaft) BLA

BLOWER MOTOR HP

3/4

FILTER TYPE

Replaceable

FILTER SIZE

28x30

UL RECONIZED

No

UL LISTED

No

ETL LISTED

Yes

ETL CERTIFIED

No

LEED CERTIFIED

No

ASHRAE COMPLIANT

No

ENERGY STAR COMPLIANT

Yes

ENERGY STAR CERTIFIED

Yes

AHRI CERTIFIED

Yes

REGISTERED WARRANTY

10 year registered parts limited warranty & 10 year compressor warranty

BASE WARRANTY

5 year limited parts warranty

HAS BATTERIES

No

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS AEROSOL

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

RESTRICTED STATES

No

NET DEPTH

32

NET HEIGHT

44

NET WIDTH

25.75

NET WEIGHT

290

FREIGHT CLASS

85



Product Brochure

Product Specifications

Product Manuals

Install Manual

Owner Manual

AHRI CERTS

Product Warranty

Limited Lifetime Warranty

MRCOOL distributor (hereinafter “Company”) warrants this product against failure due to defect in materials or workmanship under normal use and maintenance as follows.

All warranty periods begin on the date of original installation. If the date cannot be verified, the warranty period begins one hundred twenty (120) days from date of manufacture. If a part fails due to defect during the applicable warranty period Company will provide a new or remanufactured part, at Company’s option, to replace the failed defective part at no charge for the part.

This limited warranty is subject to all provisions, conditions, limitations and exclusions listed on the right side.

LIMITATIONS OF WARRANTIES

ALL IMPLIED WARRANTIES AND/OR CONDITIONS (INCLUDING IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE OR PURPOSE) ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, SOME STATES OR PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY OR CONDITION LASTS, SO THE ABOVE MAY NOT APPLY TO YOU.

THE EXPRESS WARRANTIES MADE IN THIS WARRANTY ARE EXCLUSIVE AND MAY NOT BE ALTERED, ENLARGED, OR CHANGED BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON, WHAT SO EVER.
