Firegear Stainless Steel Linear Flat Pan H Burner Gas Fire Pit Kit with AWS Electronic Ignition System
Description
Firegear Outdoors is the premier provider of outdoor fire products. We specialize in burner systems, outdoor fire features & accessories for the outdoor fire industry.
Overview - AWS Electronic Ignition
Every project is different with its own set of unique challenges. That’s why versatility is paramount when designing and constructing your outdoor project. Firegear Outdoors has developed a new system with the capability to satisfy even the most demanding jobs. This new all weather electronic ignition system will make designing your project easier as well as make installation a breeze.
AWS | All Weather Electronic Ignition System
Every project is different with its own set of unique challenges. That’s why versatility is paramount when designing and constructing your outdoor project. Firegear Outdoors has developed a new system with the capability to satisfy even the most demanding jobs. This new all weather electronic ignition system will make designing your project easier as well as make installation a breeze.
|
Multiple Fire Features
Run up to 4 fire features off of one power supply.
|
100% Pool Certified
Place fire features within 5 feet of a water source.
|
Weather Resistant
Extremely reliable in strong wind and heavy rain
|
-------------------------------------------------------------------------------------
Single Fire Feature
If you chose an FPB or LOF system the system lights by pressing the toggle switch on the faceplate.
Multiple Fire Features
If you choose our A La Carte System, the way to operate your fire features is endless! See below to learn more about the A La Carte Purchasing System!
-------------------------------------------------------------------------------------
AWS | A La Carte Purchase System
Every project is different with its own set of unique challenges. That’s why versatility is paramount when designing and constructing your outdoor project. Firegear Outdoors has developed a new system with the capability to satisfy even the most demanding jobs. This new all weather electronic ignition system will make designing your project easier as well as make installation a breeze.
Single Fire Feature
- Used for a single fire feature.
- Can only be installed in fire features that are greater than 10 feet away from a pool or spa.
- All components can be housed underneath the burner.
Multiple Fire Features
- Used when running 1 – 4 fire features. Also used when running a single or multiple fire features within 5 feet of a pool/spa.
- One kit per fire feature. One power supply (sold separately) for every 4 fire features.
Features

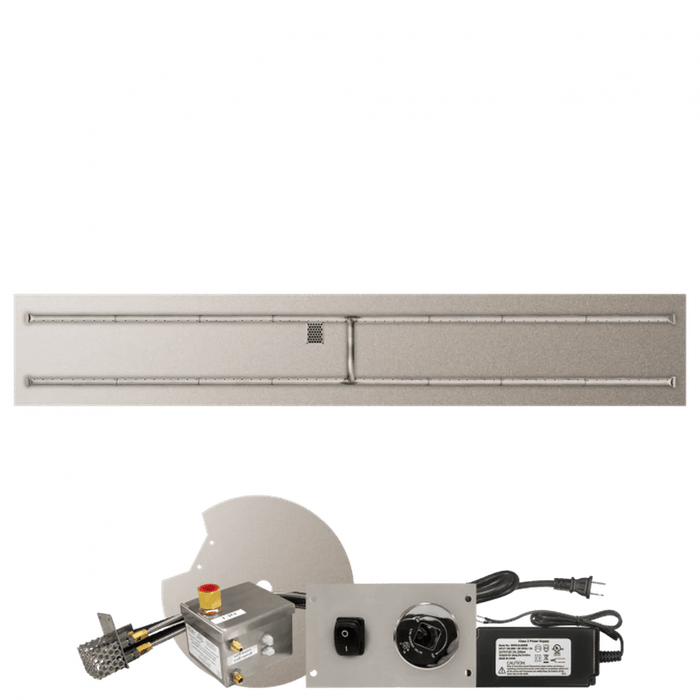

- Linear stainless steel flat pan

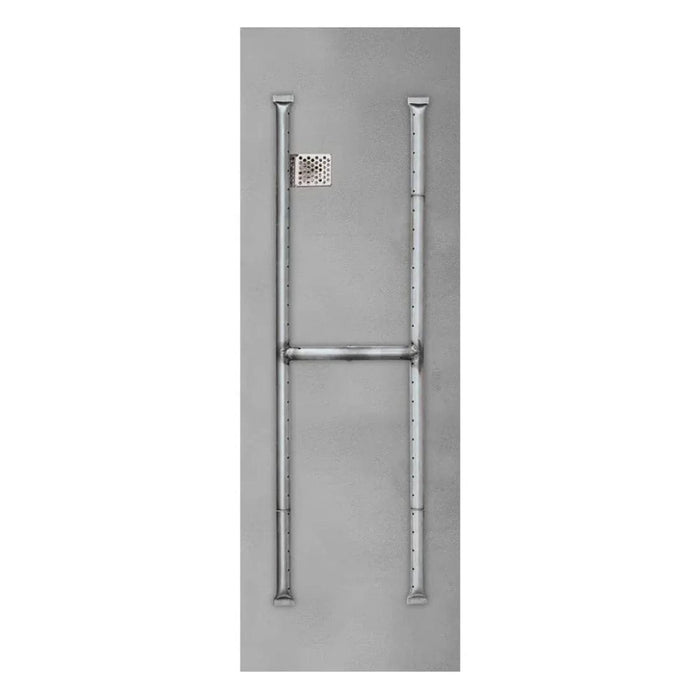

- Stainless steel "H" Burner

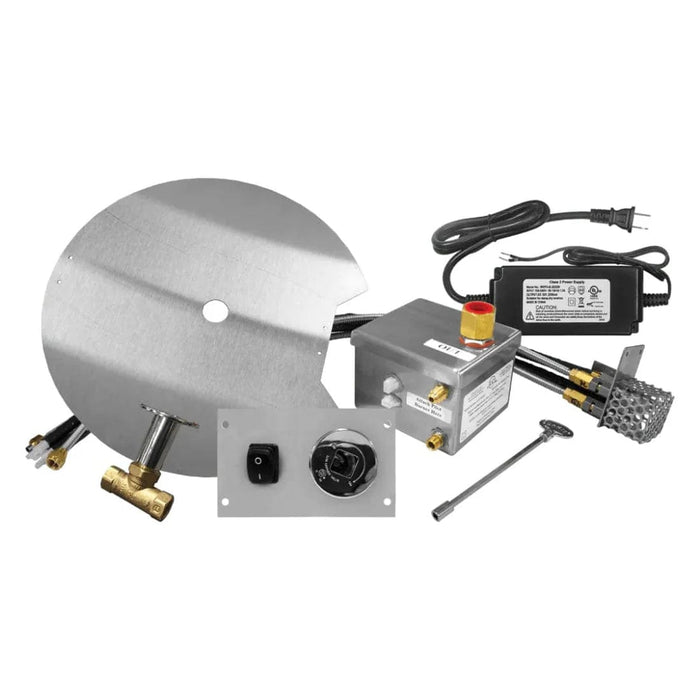

- AWS fully electronic ignition - 30VDC (Requires 120Vac) - Assembled (GOE-30VDC) power supply, AWS control panel with On/OFF weatherproof switch.
- Ships as Natural Gas or Propane. (Propane conversion kits are also available and sold separately.)
Product Specifications
Firegear Stainless Steel Linear Flat Pan H Burner Gas Fire Pit Kit with AWS Electronic Ignition System Product Specifications
| Pan Size |
Burner Size |
BTU |
LP Conv. Kit |
| 36” x 14” |
33" X 10" |
125,000 |
OAS-LPK35 +
FG-AWS-PBO |
| 48” x 14” |
45" X 10" |
150,000 |
OAS-LPK29 +
FG-AWS-PBO |
| 60” x 16” |
57" X 10" |
175,000 |
OAS-LPK26 +
FG-AWS-PBO |
| 72” x 16” |
69" X 10" |
200,000 |
OAS-LPK22 +
FG-AWS-PBO |
| 96” x 16” |
93" X 10" |
250,000 |
OAS-LPK12 +
FG-AWS-PBO |
Options & Accessories
Media Use Guide & Options
| Pan Size |
Lava Rock
|
Glass |
Lava Stones
|
36” x 14”
|
30 lbs.
|
70 lbs. |
30 lbs. |
48” x 14”
|
40 lbs. |
90 lbs.
|
40 lbs.
|
60” x 16”
|
50 lbs.
|
130 lbs.
|
50 lbs.
|
72” x 16”
|
60 lbs. |
150 lbs.
|
60 lbs.
|
96” x 16”
|
80 lbs. |
200 lbs. |
80 lbs. |
Media Options
Broken Glass Media
- Broken glass, approximately 1/2" to 3/4" in size.
|
Black
|
Copper
|
|
Crystal
|
Light Blue
|
|
Seabreeze
|
|
Reflective Glass Media
- Mirror finish broken reflective, approximately 1/2" to 3/4" in size.
|
Black
|
Bronze
|
|
Cobalt
|
Copper
|
|
Silver
|
|
Lava Rock
- Mined from the earth, these dark rocks contrast beautifully against a bright flame. Each rock is approximately 1" to 2" in diameter.
- Available in 10-pound bag and 1 cubic foot bag (Approx weight 30-40lbs.).
Lava Stone
- Made from tumbled lava rock, these stones lend a casual elegance. Each stone is approximately 1" to 2" in diameter.
Product Manual
Product Warranty
Firegear Product Warranty
Limited Warranty:
The combustion chamber is covered for parts only, against defect in manufacture only, for a period of (5) five years from date of purchase.
The gas valve, burner tube, pilot assembly, flame sensor, electrode, control modules, switches and wiring for battery compartment are all covered for (2) two years on parts against defect in manufacture, from date of purchase.
Ceramic logs, spa, and garden stones, glass crystals, and tempered glass wind shield carry a (1) one year warranty against manufacturing defect, from date of purchase.
Specials finishes such as stainless steel components are not covered against environmental damage, misuse, cleaning or handling issues that cause discoloration. To receive consideration any damage claim against stainless steel components must be submitted at the time of installation. Damage from abrasive cleaners and discoloration to stainless steel components caused by heat, are not covered under warranty. Damage reported after installation will not be covered.
Repair/replacement parts purchased by the consumer from firegear Outdoors after the original coverage has expired on the unit will carry a 90 day warranty, valid with a receipt only. Any item shown to be defective will be repaired or replaced at our discretion.
Conditions:
Any part or parts of this unit which in our judgement show evidence of such defects will be repaired or replaced at firegear Outdoors's option, through an accredited distributor or agent provided that the defective part be returned to the distributor or agent Transportation Prepaid, if requested.
It is the general practice of firegear Outdoors to charge for replacement parts and issue credit once the replaced component has been returned to firegear Outdoors and evaluated for manufacturer defect.
The authorized selling dealer is responsible for all in-field service work carried out on your firegear Outdoors product. firegear Outdoors will not be liable for results or costs of workmanship from unauthorized service persons or dealers.
At all times firegear Outdoors reserves the right to inspect product in the field which is claimed to be defective.
All claims must be submitted to firegear Outdoors by authorized selling dealers. It is essential that all submitted claims provide all of the necessary information including customer name, purchase date, serial #, type of unit, problem, and part or parts requested, without this information the warranty will be invalid.
Exclusions:
Batteries are not covered under warranty policy.
At no time will firegear Outdoors be liable for any consequential damages which exceed the purchase price of the unit. firegear Outdoors has no obligation to enhance or modify any unit once manufactured. ie. as products evolve, field modifications or upgrades will not be performed.
firegear Outdoors will not be liable for travel costs for service work.
Installation and environmental problems are not the responsibility of the manufacturer and therefore are not covered under the terms of this warranty policy.
Any unit which shows signs of neglect or misuse is not covered under the terms of this warranty policy.
The warranty will not extend to any part which has been tampered with or altered in any way, or in our judgment has been subject to misuse, improper installation, negligence or problems caused by environmental or geographical conditions, inadequate ventilation.
Freight damage to replacement parts is not covered by warranty and is subject to a claim against the freight carrier by the dealer.
firegear Outdoors will not be liable for acts of God, or acts of terrorism, which cause malfunction of the appliance.
Malfunction | damage of this appliance due to mother nature (wind, rain, snow, etc.) is not covered under the terms of the warranty policy.
Performance problems due to operator error will not be covered by this warranty policy.
Products made or provided by other manufacturers and used in conjunction with the operation of this appliance without prior authorization from firegear Outdoors, may create a danger and nullify your warranty on this product.
Product FAQs
Firegear Product FAQs
How to light your Fire Pit?
Insert the key into the shutoff valve. light a long match or use a butane lighter and hold it near the burner. Then turn the key to the on position while holding the lighter near the burner. The gas should ignite within 10 seconds
If it does not light turn the gas into the off position and wait for Five minutes before attempting to reignite ther fir pit.
What is a proper way to place media into the fire pit?
Do not dump a large amount of media into the firefit all at once, as this can result to damage to the product.
Use gloves and place the media around the tubes and arms.
Make sure to clean the media out and clean the pan,burner and igniter assembly once per year to ensure proper operation.
