EG4 12000XP OffGrid Inverter | 48V Split Phase | 24kW PV Input | 12kW Power Output | EG4-12000XP
Description

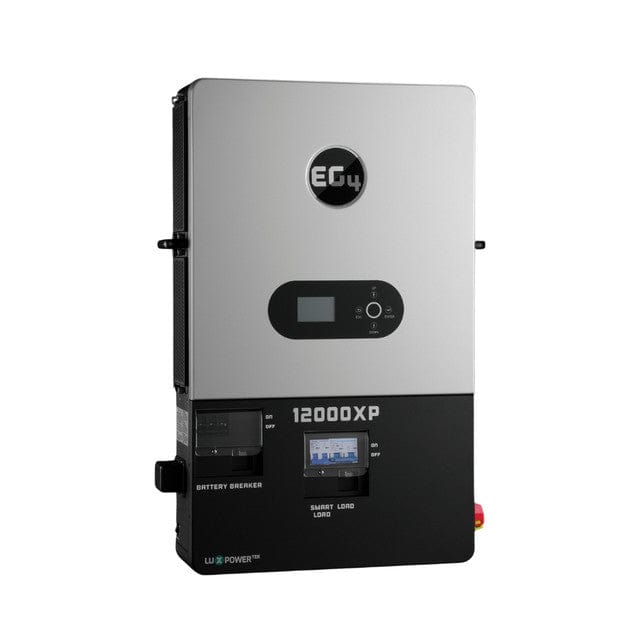

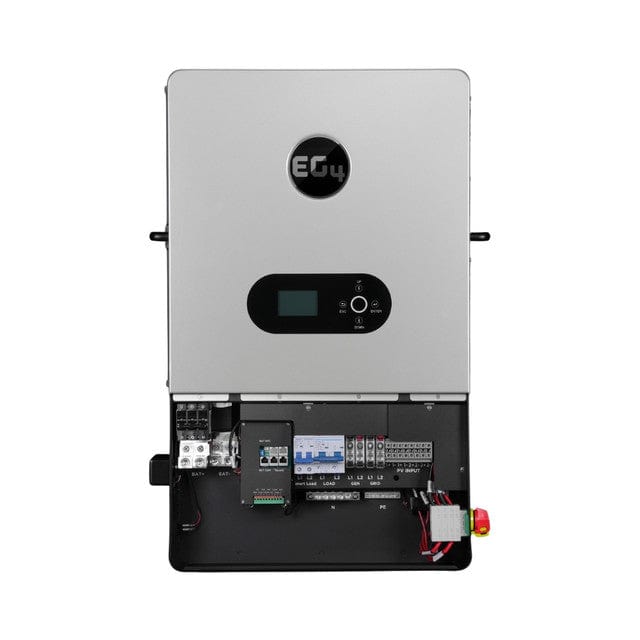

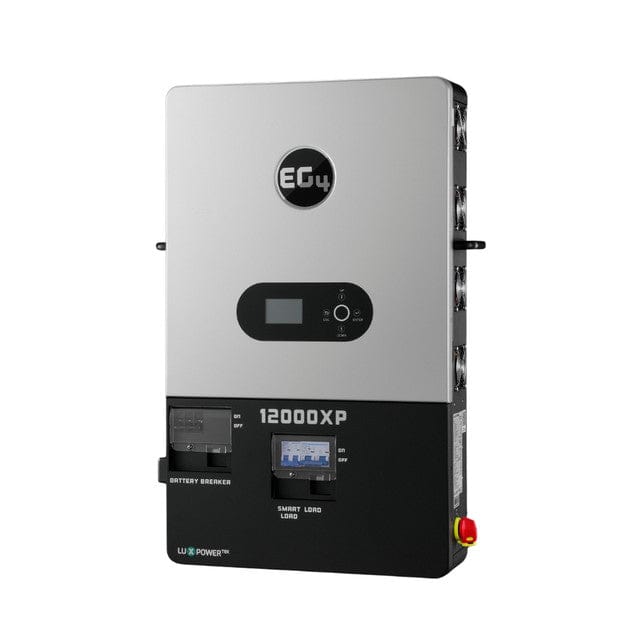

EG4 12000XP Off-Grid Inverter
The EG4 12000XP is designed for anyone seeking an efficient, all-in-one off-grid inverter with high power output, durable construction, and advanced communication features. Capable of running entirely off the grid or using grid electricity, this inverter is perfect for both residential and commercial setups.
Key Features:
-
High Input Voltage (480VDC): Supports high-voltage input, reducing the need for extensive cabling and allowing for up to 24kW PV input without a combiner box.
-
Dual MPPT Design: Ensures optimal solar energy utilization, providing efficiency and stability under varying sunlight conditions.
-
Plug-in Wi-Fi Capability: Monitor and adjust settings remotely using the EG4 app or Monitor system, adding convenience and control from any location.
-
Closed-Loop Communication: Seamlessly integrates with EG4 48V batteries and other supported brands, offering enhanced system performance and safety.
-
Rapid Shut Down Compliance: Equipped with NEC 690.12-ready rapid shutdown (RSD) capabilities for compliance and peace of mind in critical situations.
Performance Highlights:
Technical Specifications:
-
AC Input: 120/240VAC | 50/60 Hz
-
Max Continuous Output: 12kW
-
Surge Capacity: 18kW (5 seconds)
-
Battery Compatibility: Lead-Acid/Lithium, with a recommended minimum of 400Ah per inverter
-
Operating Temperature: 32°F – 113°F (0°C – 45°C)
-
Protection Features: PV Reverse Polarity, Over-Voltage, and Surge Protection
-
Warranty: 5 years
Ideal Applications:
-
Residential Off-Grid Living: Perfect for homes wanting to break free from grid reliance.
-
Remote Worksites and Cabins: Ensures a steady power supply, even in isolated locations.
-
Commercial and Industrial Use: Robust enough to handle demanding off-grid requirements.
Why Choose the EG4 12000XP? With high output power, advanced safety features, and remote management capabilities, the EG4 12000XP off-grid inverter provides an industry-leading solution that meets all your off-grid energy needs. Engineered for efficiency and durability, this inverter is your best choice for reliable and scalable power.
Product Specifications
EG4 12000XP OffGrid Inverter | 48V Split Phase | 24kW PV Input | 12kW Power Output | EG4-12000XP Product Specifications
| AC INPUT DATA |
| NOMINAL AC VOLTAGE (GRID | GENERATOR) |
120/240VAC; 120/208VAC (L1/L2/N required) |
| FREQUENCY (GRID | GENERATOR) |
60 Hz (Default) | 50 Hz (Configurable) |
| GRID MAX. CONTINUOUS AC CURRENT |
100A @ 240VAC |
| MAX. AC INPUT POWER |
24000W |
| GENERATOR MAX. CONTINUOUS CURRENT |
62.5A @ 240VAC |
| RECOMMENDED GENERATOR CAPACITY |
6000W – 15000W |
| AC BYPASS (GRID | GENERATOR) |
100A | 90A |
| AC OUTPUT DATA |
| OUTPUT VOLTAGE |
120/240VAC; 208VAC |
| OUTPUT FREQUENCY |
60 Hz (Default) | 50 Hz (Configurable) |
| MAX. CONTINUOUS OUTPUT CURRENT |
50A @ 240VAC | 57.7A @ 208V |
| NOMINAL POWER OUTPUT |
w/ PV: 12000W @ 240V | 12000W 208V
w/ out PV: 12000W @ 240V | 12000W @ 208V |
| MAX. CONTINUOUS WATTAGE |
12000W (L1-L2) | 6000W (L1-N or L2-N) |
| PEAK POWER (SURGE CAPACITY) |
18000W for ≈5 seconds | 15000W for ≈10s |
| POWER FACTOR VALUE |
.99 |
| THD (V) |
<3% |
| SWITCHING TIME |
<10 ms @ Single / <20 ms @ Parallel |
| EFFICIENCY |
| MAXIMUM EFFICIENCY (MPPT) |
99% |
| MAXIMUM EFFICIENCY (PV TO BATTERY) |
92.8% |
| MAXIMUM EFFICIENCY (AC TO BATTERY) |
92.5% |
| MAXIMUM EFFICIENCY (PV TO LOADS) |
93.5% |
| MAXIMUM EFFICIENCY (BATTERY TO LOADS) |
90.2% |
| IDLE CONSUMPTION (STANDBY MODE)* |
<70W |
| BATTERY DATA |
| COMPATIBLE TYPES |
Lead-Acid/Lithium |
| MAX. CHARGE/DISCHARGE CURRENT (A) |
250A |
| MAX. CHARGE/DISCHARGE POWER (W) |
12000W |
| NOMINAL VOLTAGE |
48 VDC |
| BATTERY VOLTAGE RANGE |
46.4 – 60 VDC (Lithium) | 38.4 – 60 VDC (Lead-Acid) |
| RECOMMENDED BATTERY CAPACITY PER INVERTER |
>400Ah |
| HIGH DC CUT-OFF VOLTAGE |
59 VDC (Lithium) | 60 VDC (Lead-acid) |
| STANDARDS AND CERTIFICATIONS |
| UL1741 |
|
| FCC PART 15, CLASS B |
|
| GENERAL DATA |
| MAX. UNITS IN PARALLEL |
16 |
| PRODUCT DIMENSIONS (H×W×D) |
34.25×20.87×5.91 in. (870×530×150 mm) |
| UNIT WEIGHT |
104.7 lbs. (47.5 kg) |
| DESIGN TOPOLOGY |
High Frequency - Transformerless |
| RELATIVE HUMIDITY |
5 – 95% (non-condensing) |
| OPERATING ALTITUDE |
<6561 ft. (<2000 m) |
| OPERATING AMBIENT TEMPERATURE RANGE |
32°F – 113°F (0°C – 45°C) @ Full Load |
| STORAGE AMBIENT TEMPERATURE RANGE |
5°F – 140°F (-15°C – 60°C) |
| NOISE EMISSION (TYPICAL) |
<60 dB |
| LOCKED ROTOR AMPS (LRA) |
195A |
| COOLING METHOD |
Fan |
| COMMUNICATION INTERFACE |
RS485/CAN/Wi-Fi |
| STANDARD WARRANTY** |
5-year standard warranty |
| INGRESS PROTECTION RATING |
IP20 |
| SAFETY FEATURES |
PV Reverse Polarity Protection, Surge Protection Device,
Output Over-Voltage Protection, Output Over-Voltage Protection
Varistor |
Product Manual
Product Warranty
EG4 Product Warranty
EG4 Electronics offers a 5-year Full Parts Replacement or Full Product Replacement Warranty from the date of original inverter (EG4 12000XP*) purchase.
Your warranty must be registered within the first year of purchase or provide proof of purchase from an EG4 authorized distributor to remain valid. If you choose not to register or cannot provide proof of purchase, your warranty may be invalidated.
This limited warranty is to the original purchaser of the product and is one time transferable only if the product remains installed in the original installation location. All parts exchanges are covered during the warranty period. Outside of the continental US, replacement shipping charges may apply.
Product that is not purchased through an EG4 approved vendor is not covered under this warranty. A list of approved vendors can be found on our website. Reselling or removing the product from the original installation site will void the warranty.
Warranty Exclusions
EG4 Electronics has no obligation under this limited warranty for products subjected to the following conditions (including but not limited to):
- Damages incurred during installation/reinstallation or removal
- Poor workmanship performed by an individual, installer, or a firm
- Damages caused by mishandling the product or inappropriate environmental exposure
- Damages caused by improper maintenance or operating outside the specified operating conditions
- Tampering, altering, and/or disassembly of the product
- Using product in applications other than what the manufacturer intended
- Lightning, fire, flood, earthquake, terrorism, riots, or acts of God
- Any product with a serial number that has been altered, defaced, or removed
- Any unauthorized firmware updates/upgrades/patches
- Damages incurred from a voltage or current spikes due to open-loop lithium battery communications
EG4 product warranty is a limited warranty – EG4 limits its liability in the event of a product defect to repair or replacement in accordance with the terms of this limited warranty. EG4 is not responsible for any additional or indirect damages that may arise from the malfunctioning of the product. These damages could be incidental or consequential, including without limitation, any liability for the loss of revenue, profits, or time. EG4 shall not be liable for any direct or indirect loss of life, including but not limited to bodily injury, illness, or death arising from the misuse or mishandling of the product, whether caused by negligence or otherwise.
Return Policy and Warranty Claims Procedure:
Contact your original place of purchase.
