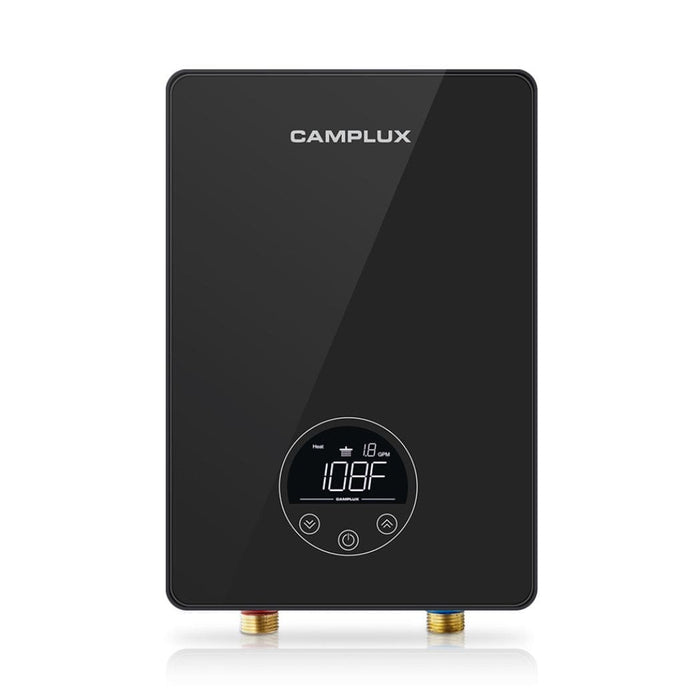

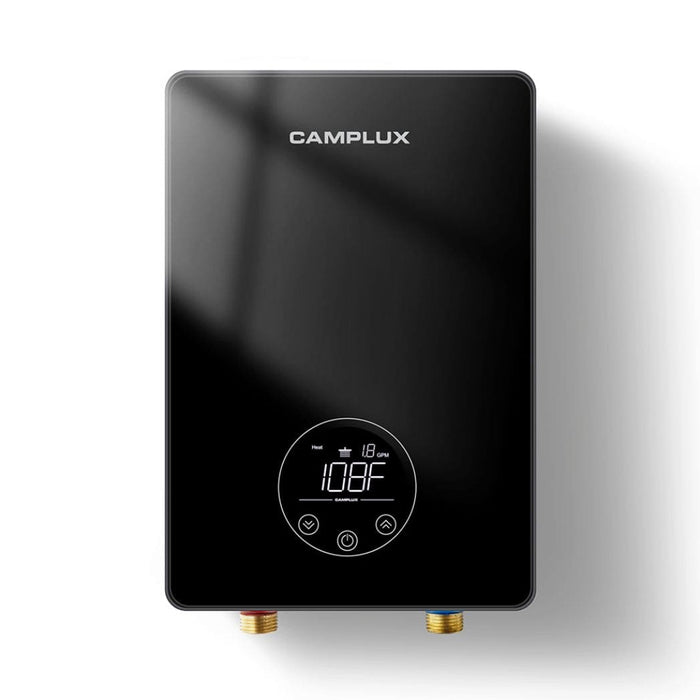

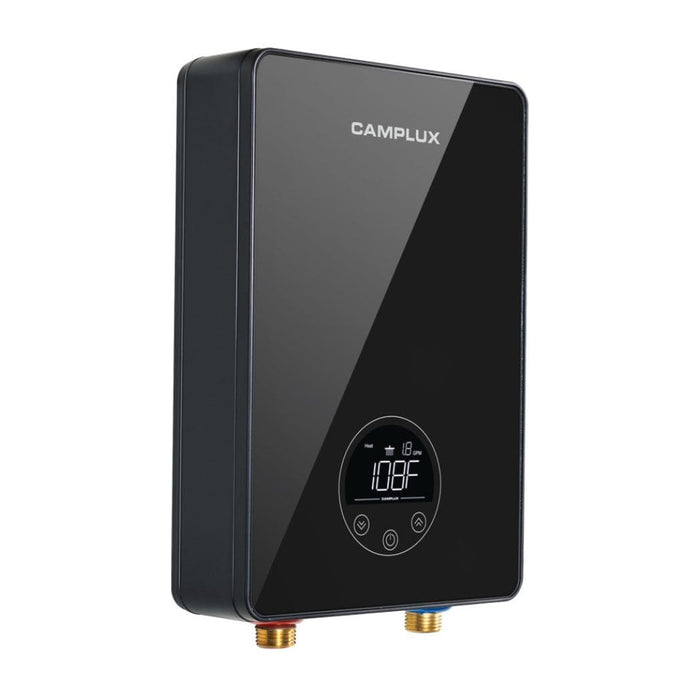

Camplux Tankless Hot Water Heater Electric Point of Use - Black
Description
Enjoy hot water anytime with the Camplux Electric Water Heater 6kw, featuring an instant on-demand heater with a digital display and hard-wired installation. Get consistent hot water, saving up to 50% in energy consumption with a temperature rise of 1.0 GPM up to 50°F. Smartly adjust the real-time temperature with an LED touch display and feel secure with its 304 food-grade stainless steel water tube design, safety features and anti-leakage protection. Get hot water in just 2 seconds!
Consistent Hot Water: The under-sink water heater only heats the water when you need it and no wait to preheat, saving up to 50% in energy consumption. The temperature rise of 1.0 GPM is 50°F. Easy to get hot water between 85°F - 131°F in two seconds

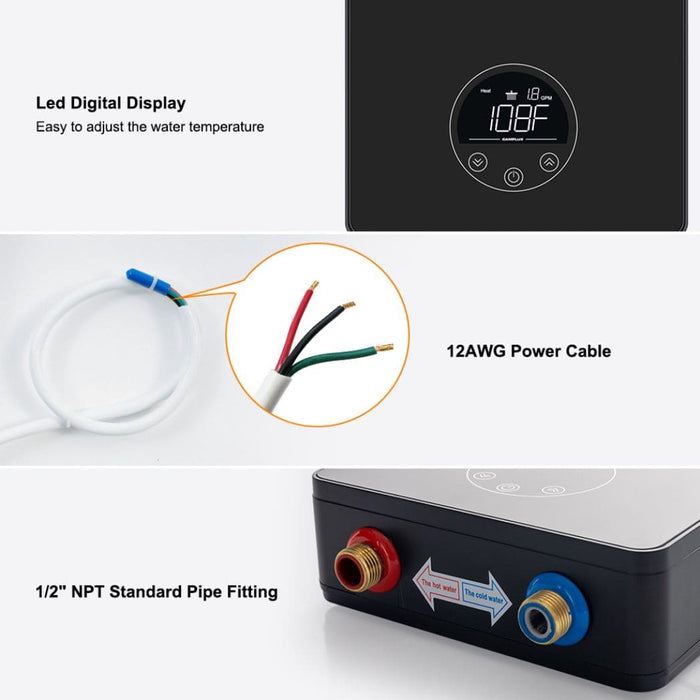

Smart Adjustment: Easy to read the real-time temperature, according to the sink flow rate to adjust your temperature increase or decrease through an LED touch display

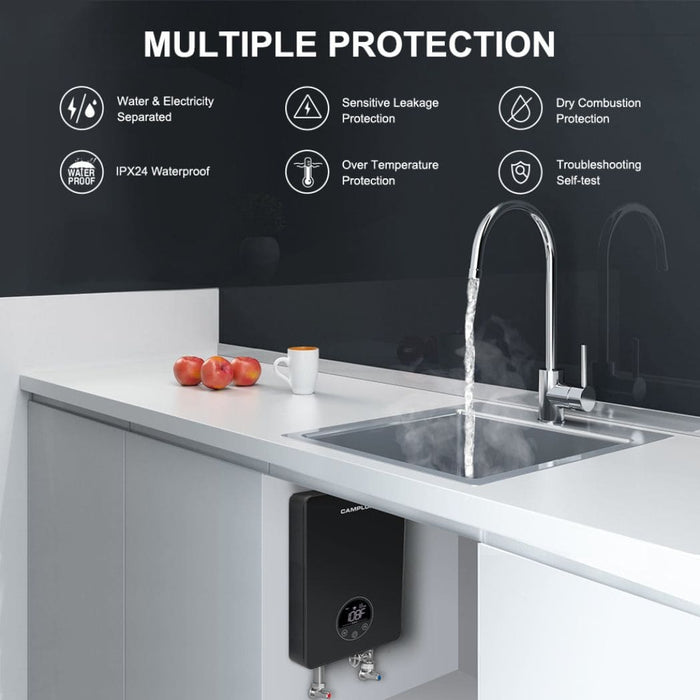

Safe Use: With a 304 food-grade stainless steel water tube design, you don't need to be concerned about scaling reducing the functional life span of the unit when you use hard water. At the same time, this small water heater is accompanied by more safety features: anti-leakage, waterproof, over-heating protection, dry combustion protection, troubleshooting self-test, etc

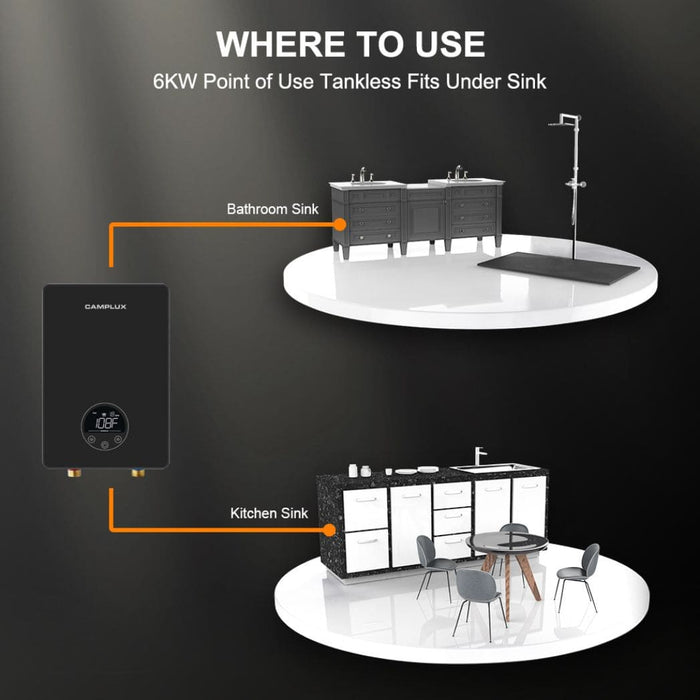

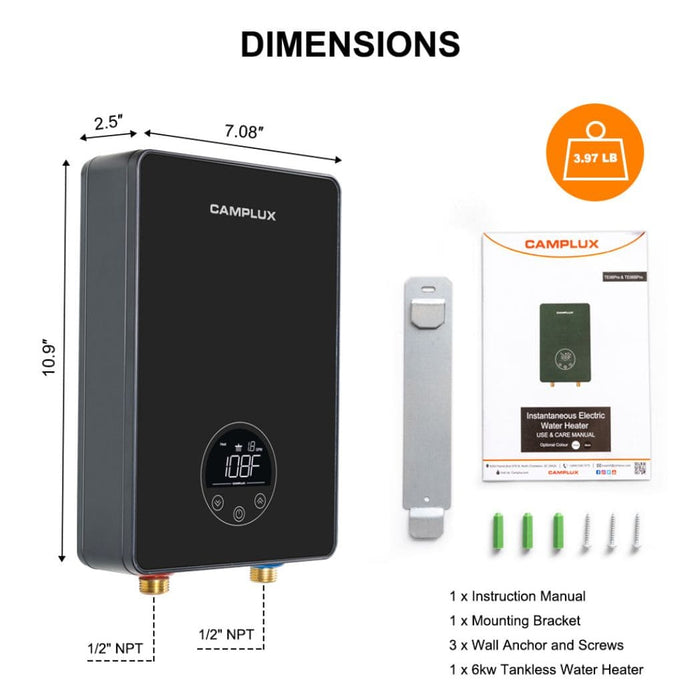

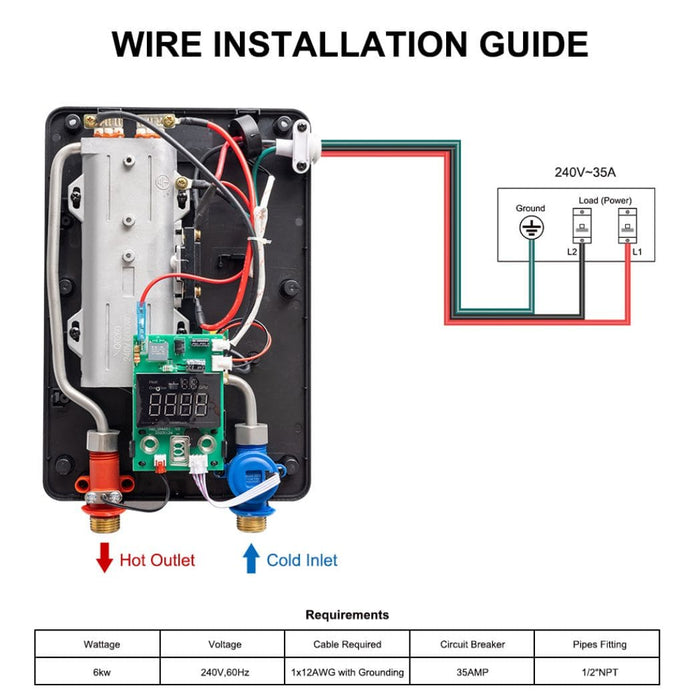

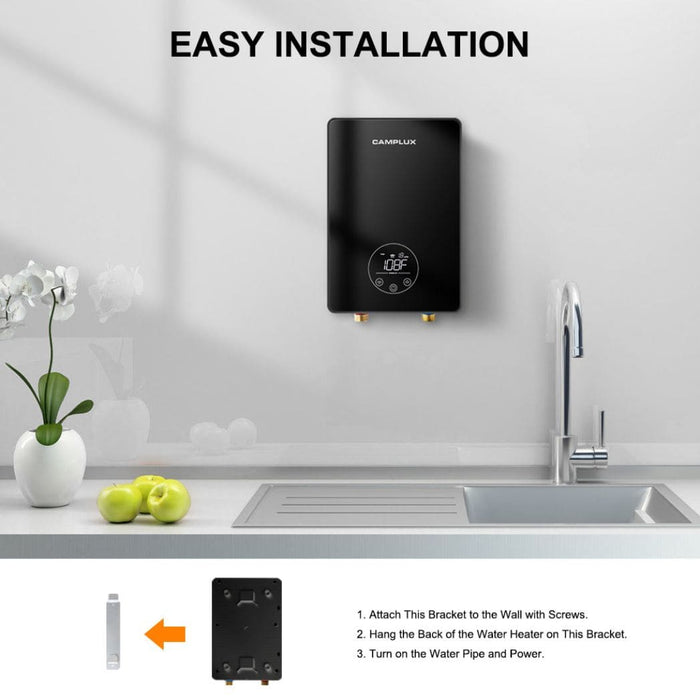

Easily Mounted: The compact size electric hot water heater requires a connection of a 30A circuit breaker, 12AWG min wire size. Hardwire to install close to an outlet for energy saving. It fits under your bathroom sink or kitchen sink to provide hot water right where you need it. Please make sure it is the right size for you: 6kW at 240V, product dimensions 10.95" x 7.4" x 2.52", water pipes fitting: 1/2" NPT male

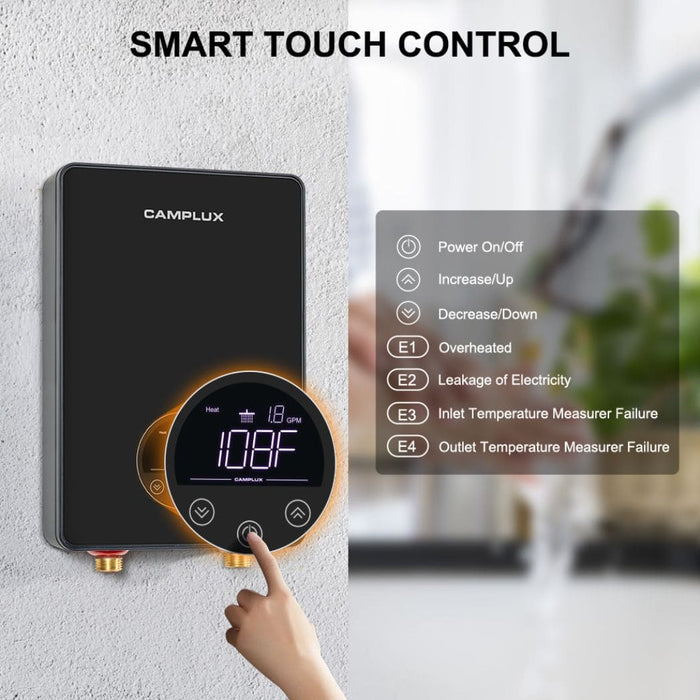

Intelligent Touch Control: Easy to set the temperature, real-time display of water temperature, and inlet water flow. Enjoy instant and endless hot water
IMPORTANT TIP- This 240-volt point of use water heater MUST BE HARD-WIRED, NO PLUG. MUST be permanently connected to the fixed circuit breaker and it must be installed vertically. Please note this mini hot water heater is only suitable for sink use, not for bathing
Product Specifications
Camplux Tankless Hot Water Heater Electric Point of Use - Black Product Specifications
Feature |
Specification |
Power Source |
Corded Electric |
Item Dimensions (LxWxH) |
16.53 x 4.5 x 10.3 inches |
Color |
Black |
Voltage |
240 Volts |
Material |
Stainless Steel |
Heat Output |
6 kW |
Item Weight |
5.26 pounds |
What's in the Box?
Mounting Bracket x 1,
Tankless Water Heater x 1,
Wall Anchor and Screws x 3,
Instruction Manual in US x 1
Product Manual
Product Warranty, Shipping & Return
FREE 1 Year Warranty
Shipping Policy
Free Ground Shipping
We offer free ground shipping for all US orders except to Alaska, Guam, Hawaii, and Puerto Rico.
Shipping Method:
-
Standard/Small Orders: Shipped via USPS, UPS, or FedEx.
-
Large Items or Orders: Shipped via LTL freight.
Shipping Time:
-
Standard Shipping: 4-6 business days.
-
LTL Shipping: 8-10 calendar days.
Order Processing Time: 1-2 business days.
Business days typically do not include weekends. However, Saturday and Sunday deliveries may occur in certain zip codes.
To request a cancellation or make changes to your order, please contact our customer support as soon as possible by telephone at (844) 538-7890 or email at service@camplux.com, Monday - Friday from 9 AM - 5 PM EST. Once an order has been sent to our warehouse, we cannot guarantee cancellations or changes as we work quickly to fulfill your order.
Return Policy
-
Returning an Item:
To return an item, please contact our customer support via email at service@camplux.com or by telephone at (844) 538-7890, Monday - Friday from 9 AM - 5 PM PST, within 30 days of delivery to request a return for a full refund. Ensure you provide your reason for the return.
-
Unapproved Returns:
Returns made without approval will not be accepted, as we have different return addresses for different products.
-
Returns Due to Buyer’s Remorse:
For returns due to buyer’s remorse (e.g., ordered by mistake, does not fit, changed mind, no longer needed), customers are responsible for the return shipping cost and a 20% restocking fee. Save your tracking number to confirm receipt at our location. For items returned due to defects or quality issues, a pre-paid return label will be provided after you send us pictures or videos showing the issue.
-
Damaged Items:
If an item is found to be damaged in shipping, do not accept or sign for the product. Refuse the package with the carrier and contact our customer support as soon as possible.
Product FAQs
Camplux Water Heater Product FAQs
1. My water heater is not igniting
A. Check if the polarity of the batteries are positioned correctly.
B. Check if the water inlet, water outlet and gas inlet are connected to the right pipes.
C. Heater wont ignite if the water pressure is too low, please make sure you have enough water flow.
D. Check the water inlet and filter to make sure there is no clog.
E. Disconnect the shower hose and shower head and let the water gush out from the heater (set gas knob to minimum and water knob to maximum), if it ignites that means there is a clog either in shower hose or shower head.
2. Water Heater Ignites but not producing hot water
A. If it’s the first time you start the heater, to exhaust the extra air completely, please try start it couple of times.
B. Disconnect the gas hose from the gas inlet and check if the gas is flowing. If the regulator is defective the gas will not flow and the unit will not ignite.
C. Check if you have enough propane.
D. If you are using a new tank of gas, the solenoid valve may not work because the gas pressure is too high. Try to turn on the water faucet first, gas source valve later. And try to start the heater again.
E. Disconnect the shower hose and shower head and let the water gush out from the heater (set gas knob to minimum and water knob to maximum), if that fix the problem there is clog either in shower hose or shower head.
PRECAUTION:
F. Please make sure the water heater is connected to the correct type of gas line. If the unit is LP it should be connected to LP line or NG to NG line. It’s possible to cause an ignition failure or an explosion when connected to the wrong gas line. It’ll produce yellow flame or black smoke if connected to the wrong gas line.
3. Heater ignites with a loud noise
A. Kindly restart the water heater few times to exhaust the extra air inside. If does not fix the problem try to replace the gas regulator using a standard grill regulator.
B. Check if the screws are properly secured if the water heater is mounted.
C. Check the battery if it’s still okay.
4. Water Heater flames out suddenly
A. Check if you still have enough gas. Check your gas cylinder.
B. Check if the water pressure is too low to ignite the heater. If you are using well water it is best to use a water pump to increase the pressure.
C. Change the batteries.
D. Disconnect the shower hose and shower head and let the water gush out from the heater (set gas knob to minimum and water knob to maximum), if that fix the problem there is clog either in shower hose or shower head.
5. What to check if the water doesn't heat up?
A. Turn up the gas knob and turn down the water knob.
B. Turn on the gas valve completely.
C. Shorten the gas pipe if it is longer than 5 meters.
D. Choose a suitable gas regulator for low pressure.
E. Avoid using gas in multiple appliances all at the same time.
6. Black smoke coming out from Water heater
A. Open the front panel of the water heater and air blow the heat exchanger with an air compressor to remove if there is any debris or clog inside. After, set the gas knob to minimum and water knob to maximum and start the water heater and check if the black smoke will be gone.
B. If the issue still persist unplug the gas line and stop using the water heater. Call for service.
7. Heater may suddenly start producing too much hot water
A.check and reduce your heater’s temperature setting.
B.you must fully open the shut-off valve and ensure more water flow
8. Heater Yellow Flame
While your Camplux water heater is functioning normally, it will produce a deep blue flame. But when your heater produces a yellow flame, you can’t overlook it as it is another problem.
Yellow flame causes extreme smoking and dirt build-up in the flue tubes, combustion chamber, and gas burner.
A.On your Camplux water heater’s front cover, you will see the middle horizontal window or viewer panels. Look through the window to check whether your heater produces a blue or yellow flame,We strongly recommend you not to use your Camplux water heater when it produces a yellow flame.
B.Replace the cracked gas regulator.
C.From the gas burner’s top, remove the scale and adequately clean the burner and unclog the main burner.
D.Ensure sufficient air circulation and proper ventilation in your heater.
E.Clean the pipes properly and remove the vent or flue’s blockage.
9. Water Heater Leaking
A.Check the correct installation.
B.Check and tighten your water tank’s pipe connection.
C.Replace the cracked heater, malfunctioning T & P relief valve, loose or damaged gaskets, lousy drain valve, and the defective hot and cold water inlet and outlet.
10. Water Heater Error Codes
E0:Hot water sensor not working.
Causes : Short circuit. Loose junction pat. A defective or broken sensor.
Solutions : Prevent your heater’s overheating to avoid short circuits. Tighten the junction pat. Replace the broken or faulty sensor.
E1:Failed ignition system.
Causes : Loose junction pat. Close or partially open gas valve. Close water shut-off valve.
Solutions : Tighten the junction pat. Check and open the gas and water shutoff valve fully.
E2:Flame Failure Protection.
Causes : The heater fails to detect the flame. The gas supply is off. Empty tank or low fuel supply. Damaged fuel sensor.
Solutions : Ensure your water heater is perfectly detecting the flame. Check and turn on the gas supply. Refill the fuel tank and ensure proper fuel supply. Replace the faulty fuel sensor.
E3:Overheating protection.
Causes : Overheating controller. Dry combustion.
Solutions : Ensure your heater controller is not overheating.
E5:Pressure switch failure.
Causes : Too low power supply voltage. Motor malfunction.
Solutions : Ensure high power supply voltage. Replace the bad motor.
E7:Solenoid Valve.
Causes : Valve’s open circuit. Valve’s short circuit. Faulty or disconnected valve.
Solutions : Prevent the valve’s opening and short circuit. Replace the lousy valve. Make sure the valve is properly connected.
Eb:Residual Fire Failure.
Causes : Solenoid issue. Malfunctioning PCB controller.
Solutions : Replace the faulty PCB controller. And fix the solenoid issues.
11. What is the normal temperature for a Tankless water heater?
Against scalding, your Tankless water heater’s recommended normal temperature is 120 degrees Fahrenheit. But the heater’s common default setting is 140 degrees.
12. What are the signs that your hot water heater is going out?
The heater gets too hot, rust in the water, the water heater leaks from the bottom, and the heater making odd noises are signs that your hot water heater is going out.
