BougeRV 400 Watt 12 Volt Solar Starter Kit

by BougeRV
SKU KIT02-ISE114
Original price $789.99 - Original price $789.99
Original price
$789.99
$789.99 - $789.99
Current price $789.99
Availability:
in stock, ready to be shipped

Get it between -

Price Match Policy

Price Match

Here at OffGrid Living Solutions, we want to offer you the best prices online.

If you happen to find a lower price for the same product, we will guarantee to match their price or beat their price. Note, this does not apply to all products in the store. Please reach out to us via email or chat if you want a price match or price beat.

For the policy to apply, please send us a screenshot, link, or any other evidence of the product being priced lower than ours before making the purchase.

Refer to our Price Match Policy Rules.

Refunds & Returns Policy

At OffGrid Living Solutions, we are proud to have the best refund and return policies in the industry. If you’re not satisfied with your purchase for any reason, you may return it to us within 30 days for a refund.

If you have a problem with our order (there are missing components, damages, or the product is not functioning), please reach out to us as quickly as possible. Some of the problems can be resolved by going through the product manual or the product FAQs.

Refer to our Refunds & Return Policy for more details.

Shipping & Delivery

Order Processing

Once we receive your order, we will send you a confirmation email. Then we will process the order by confirming that the product is in stock and ready for shipment. If any of the items in your order are back-ordered, we will reach to you via email or phone and you may choose to either wait or receive a 100% refund.

Please allow 1-3 days for processing your order.

Shipping

We ship to the lower 48 continental United States only at this time.

Shipping times and shipping method will depend on the specific product and brand you purchase. If you have any shipping question, feel free to ask on the chat or email us at info@offgridlivingsolutions.com.

We will send tracking information by email the same day the shipping tracking number is created/available.

Before you sign the shipping bill, please THOROUGHLY INSPECT YOUR ITEM. Signing for the receipt of a damaged product removes the liability of the shipping company and OffGrid Living Solutions. Once you accept your shipment as non-damage, your item is your property.

Delivery time

Shipping Timeline listed above is an estimate. Please call or message the web chat for precise ETAs.

BougeRV 400 Watt 12 Volt Solar Starter Kit

Description

Power up your off-grid lifestyle with the 400 Watt 12 Volt Solar Starter Kit. This comprehensive kit includes four high-efficiency 100W solar panels, a charge controller, mounting hardware, and all necessary cables for an easy and efficient installation.

Package Included


Product Specifications

BougeRV 400 Watt 12 Volt Solar Starter Kit Product Specifications

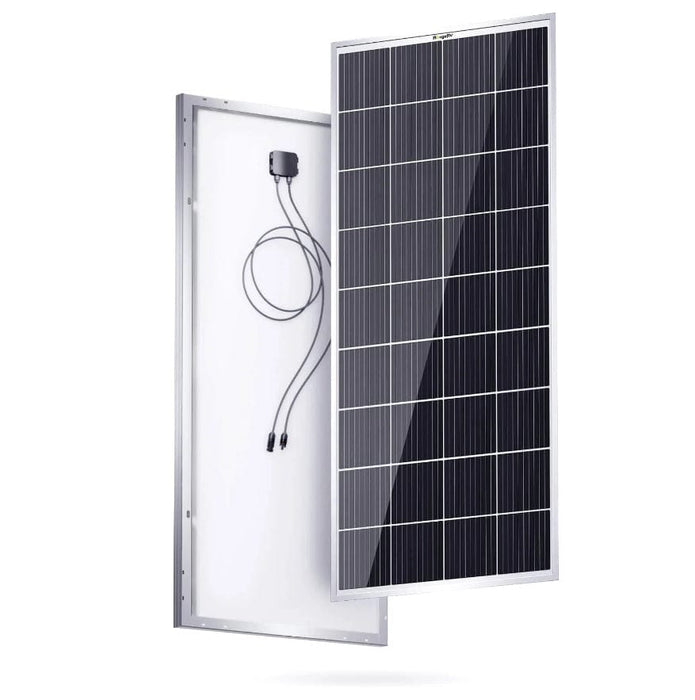

200 Watt Mono 9BB Solar Panel /40Amp MPPT Solar Charge Controller /20ft 10AWG Solar Extension Cable

SKU ISE114(KIT02-ISE114)
Peak Power Pm (W): 200W Solar Cell: Monocrystalline & 9BB Cell
Open circuit voltage Voc (V): 23.4V Package diameter: 59.45* 27.56* 2.56 in
Max.power voltage Vmp (V): 19.8V Product diameter: 58.27* 26.38* 1.38 in
Short circuit current Isc (A): 11.17A Net Weight : 29.54 lbs(13.4 kg)
Max.power current Imp (A): 10.10A Warranty: 18 Months
Solar cells Efficciency: 22.5%

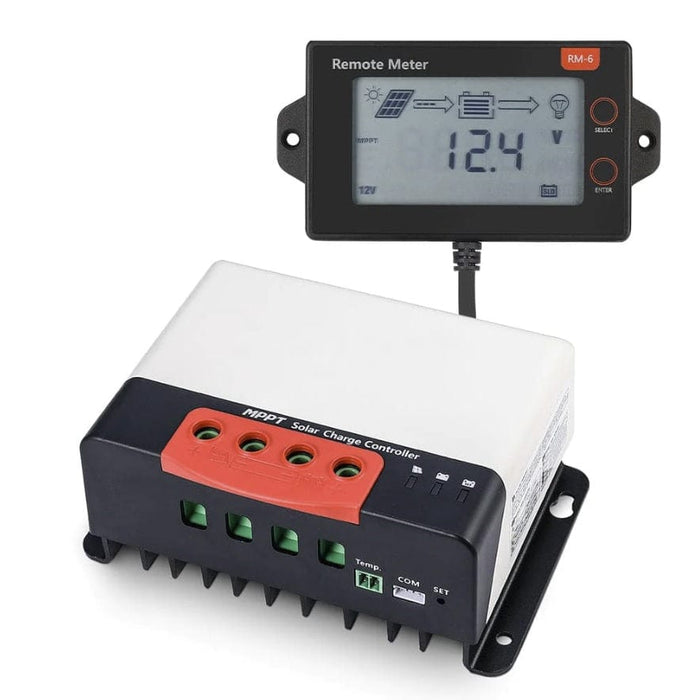

SKU ISE059
Nominal Voltage: 12V/24V Rated Charge Current: 40 A
Max. PV Input Voltage: 92V(25℃);100V(Lowest ambient temperature) Operating Temperature: -31 °F to 113 °F
Weight: 2.66 lb Dimensions: 8.07 x 5.51 x 3.15 inches
Maximum PV input power: 550W/12V; 1100W/24V Charging conversion efficiency: ≤98%
MPPT tracking efficiency: >99% IP rating: IP32
Product Type Solar Kits

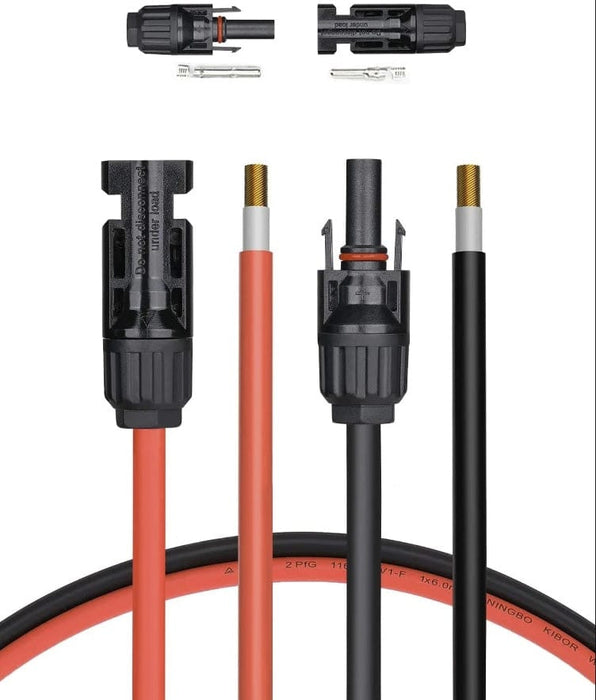

SKU ISE003-B021
Rating Voltage: -DC :1.8KV -AC: 0.6~1KV  Degree of Protection: IP65
Fire Rated: IEC60332-1  Temperature: -40~﹢90℃
Service life: >25 years( -40~﹢90℃) Weight: 2.2 pounds
Wire Gauge: 10AWG Length : 20Ft
Normal Cross Sectional Area of the Conductor (mm2): 6.0

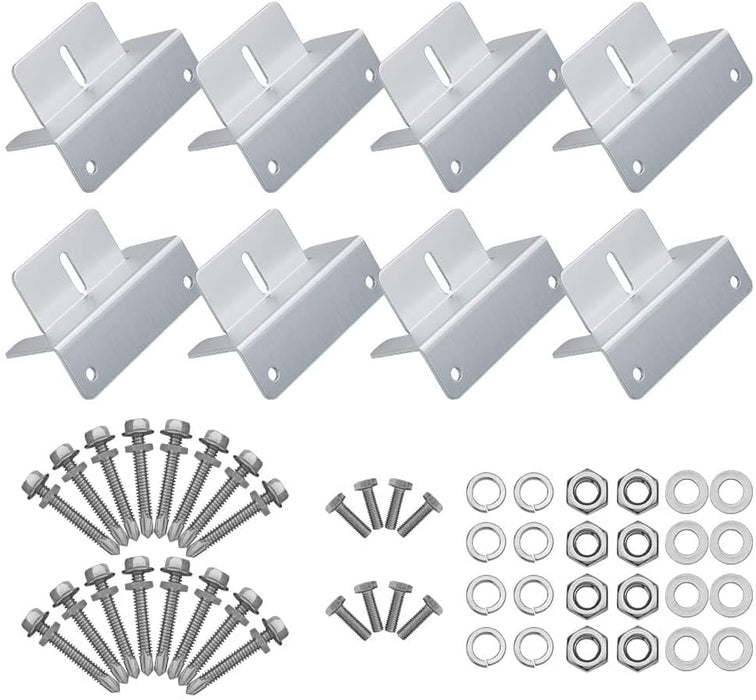

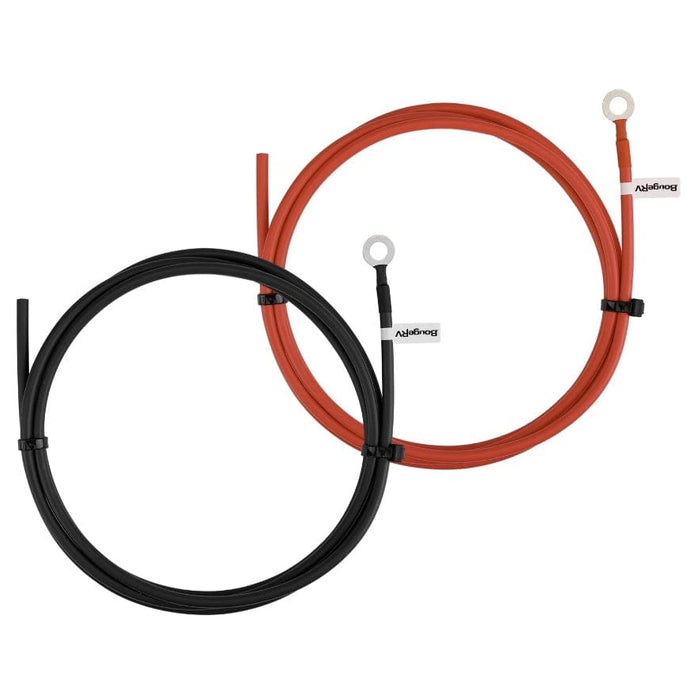

8ft 10AWG Wire Copper Tray Cable /Mounting Z Bracket Mount Kits  /Solar Connectors Y Branch Connectors

SKU  ISE107
Specification: 8ft 10awg (6 square meters) Material: tinned copper
Withstand voltage: DC 1000V  Current: 30A
Temperature: -20℃-80℃ Copper ring material: brass and tin-plated
Aperture: 10mm Thickness: 0.8mm



SKU  ISE107
Specification: 8ft 10awg (6 square meters) Material: tinned copper
Withstand voltage: DC 1000V  Current: 30A
Temperature: -20℃-80℃ Copper ring material: brass and tin-plated
Aperture: 10mm Thickness: 0.8mm

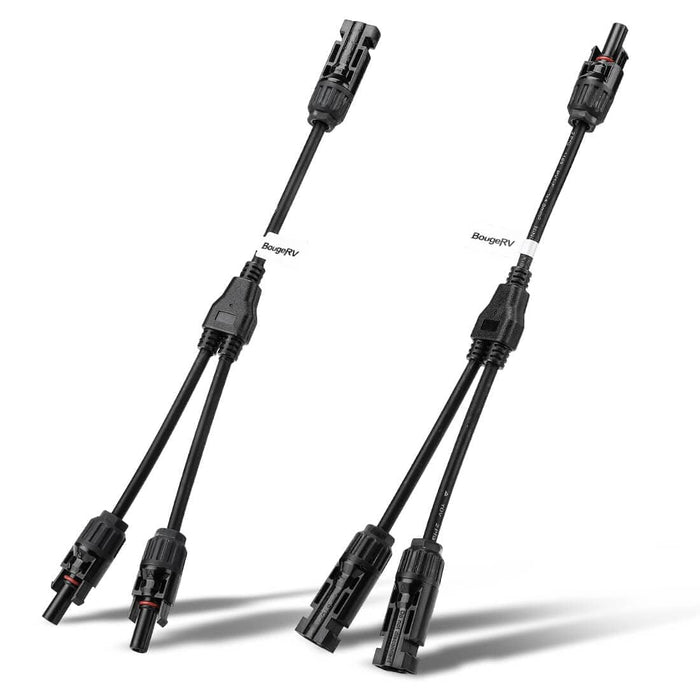

SKU ISE002-B021
 Insulation Material: PPO Rated Current: 20A(4mm²)
Rated Voltage: DC1000V Contact Resistance: ≤5mΩ
 Insulation Resistance: >500mΩ Operating Temperature range: -40℃ ~ +90℃
Degree of Protection: IP67 Flame Class: UL94-V0
Safety Degree: Ⅱ Suitable Single Core Cable Section: 1.5mm² -- 6mm² ( include AWG14, AWG13,AWG12, AWG11,AWG10 )



Product Manual

CIGS Thin-Film Solar Panel Product Manual

MC Series MPPT Solar Charge Controller Product Manual

Product Warranty & Returns

BougeRV Product Warranty

BougeRV Solar Panel comes with an 18-month limited warranty that commences from the date of purchase. If you have any questions during use, please feel free to contact us:
email: service@bougerv.com
website: www.bougerv.com
phone: 1-669-232-7427

Note If you have any after-sales problems with solar panels, please provide the barcodes on the solar panels. We can track the production batches of the solar panels faster and solve your problems more quickly.

Return policy

1. If for some reason you are not completely satisfied with your purchase, you can return packages within 30 days of receipt, as long as they are new, undamaged and unmodified, but in this case, we do not cover shipping costs for returns. If your item does not meet these requirements, we cannot guarantee that your item will be accepted for a return or exchange.

2. BougeRV will cover the shipping costs when there a defective product, a wrong product.

3. If your purchase is out of stock, we will send the notification and offer the option to cancel the order or wait for stock.

4. Please do not return the product without contacting us, as the address on the original package may not be the same as our return address.

5. Please note that BougeRV does not accept returns with product modifications as this would void our warranty policy. Any modified product received will be returned to you at your expense.

6. If you need further assistance, please contact our customer service - we're more than happy to help!

Product FAQs

N/A
