Amerec KT3 Digital Steam Shower Generator Control Kit, AK Series

Description

The Amerec KT3 steam shower generator control kit works with Amerec AK series steam generators. A stylish update to Amerec's KT60 control, this digital control panel is backward compatible with the classic KT60.

Featuring a built-in temperature sensor, this control was designed for use inside the steam room. With the simple ease of 3-buttons, you control on/off, temperature, and time duration settings. The display alternates every 5 seconds between atmospheric room temperature and the remaining time of your steam session. Maximum session settings are up to 125 °F and 60 minutes (residential use). The K3 control kit includes a control cable and ComfortFlo steam head, which is available in a variety of designer finishes to match your fixtures.

For a temperature-controlled steam bath, Amerec AK-Series generators require either a KT3 with a built-in temperature sensor or a K3 with a separate temperature sensor. An Amerec K3 may be added to allow two controls for a steam bath, such as one inside the room and one outside, but if a KT3 is installed it must be inside the steam room. A maximum of two controls may be installed.

The temperature can be adjusted from 84 to 125 °F (29 to 52°C) with an initial default of 120 °F (49°C). The temperature display preference may be set using a jumper on the steamer circuit board to select either °F (default) or °C. The maximum bath time may be set to 60 minutes (default) or 24 hours (for light commercial use) using a jumper on the steamer circuit board.

This control must be mounted inside the steam room, approximately 4 feet up from the floor, as it contains the temperature sensor. A second K3 control may be installed outside the steam room for added convenince. Either control may be used to control the steam bath.

The low voltage controls can be mounted up to 25 feet from the steam generator. This control must be mounted inside the steam room so its built-in temperature sensor will function. String the 25-foot cable from the control location through 1/2” holes in the wall studs or ceiling joists to the generator.

Product Features:

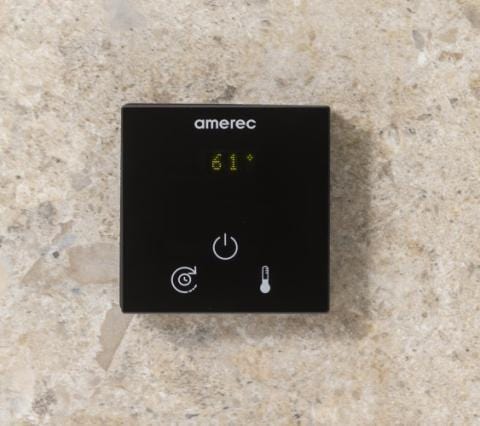

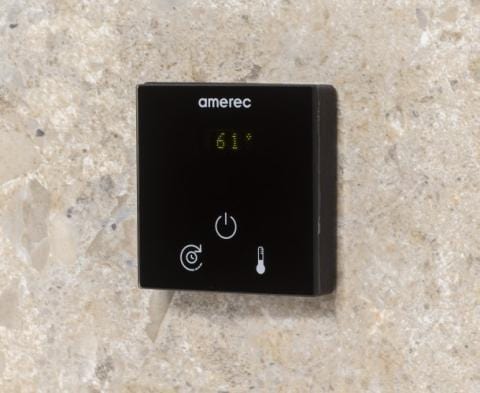

KT3 Control

  • Black control display panel
  • Settable on/off, time, temperature, and delay
  • Settable temperature range of 84-125 °F
  • Inside steam room installation
  • Displays and room temperature
  • Built-in temperature sensor
  • Designed, engineered, and made in the USA
  • Control Console Dimensions: 3"W x 0.5"D x 3"H
  • Limited Lifetime Warranty

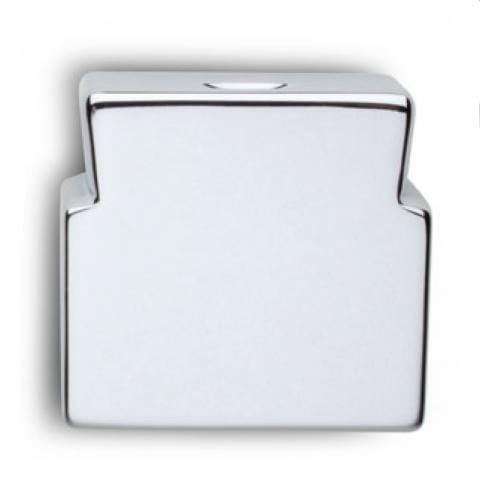

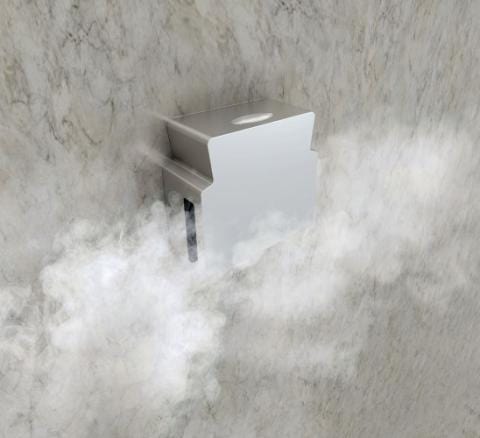

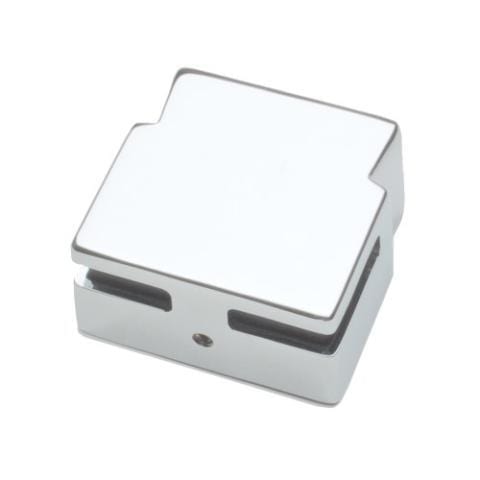

ComfortFlo Steamhead

  • Safe operation
  • Integral reservoir for a scented steam bath
  • 1/2” NPT connection
  • 180º steam dispersion pattern
  • 6 designer finishes available
  • Designed, engineered, and made in the USA
  • Steamhead Dimensions: 3"W x 1.4"D x 2.75"H
  • Limited Lifetime Warranty

Product Specifications

Amerec KT3 Digital Steam Shower Generator Control Kit, AK Series Product Specifications

Model KT3
KT3 Control
Minimum Temperature Setting 84°F
Maximum Temperature Setting 125 °F
Minimum Session Timing 5 minutes
Maximum Session Timing 60 minutes(Residential) 24 Hour(Light Commercial with jumper use)
Installation Wall-mount Inside Steam Room
Width 3"
Depth 0.5"
Height 3"
ComfortFlo Steamhead
Steam Head Connection 1/2" NPT
Width 3"
Depth 1.4"
Height 2.75"



What's in the box?

KT3 Control

  • Control
  • Control Cable
  • Installation and operation manual
  • Limited Lifetime Warranty

ComfortFlo Steamhead

  • Steamhead
  • Installation and operation manual
  • Limited Lifetime Warranty

Product Manual

KT3 Installation and Operation Manual

K3.KT3 IOM 2021.pdf

Spec Sheet

KT3 Control Kit Spec Sheet.pdf

Rough- In Instructions

K Series Control Rough-In Instructions.pdf

Control & Printed Circuit Assembly Compatibility - AK Modes

AK Control & PCA Compatibility_0.pdf

ComfortFlo Installation Manual

CFSH IOM 2013.pdf

Product Warranty

Amerec Limited Lifetime Warranty 2021.pdf
