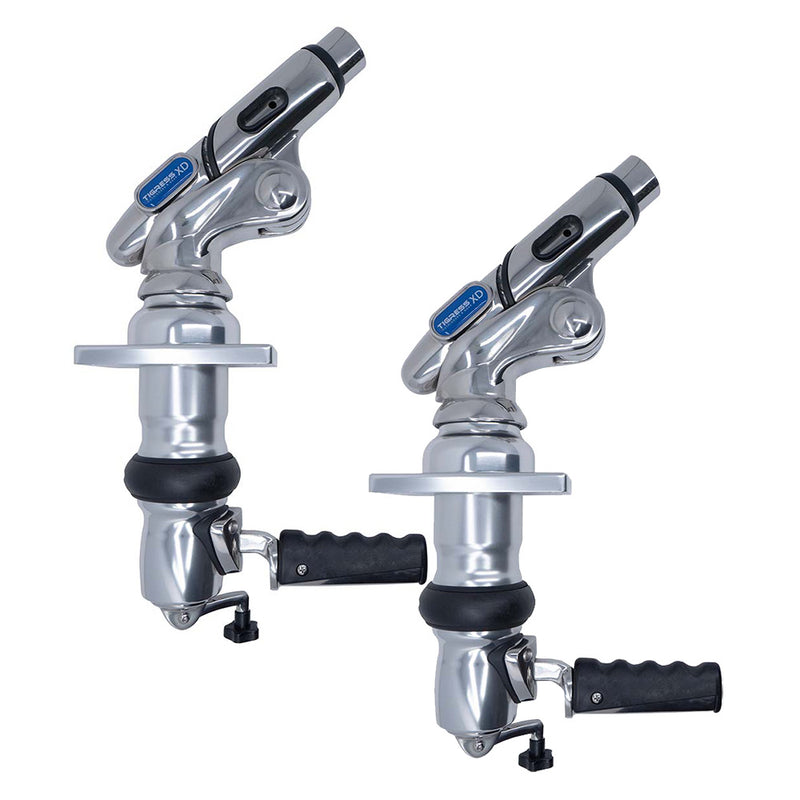

Tigress XD Crank Top Mount [88880]

Features:

  • For use on sport fishing boats up to 50 feet
  • Adjustable Upper Arm with ‘Run’ & ‘Laydown’ position Stops
  • User-friendly Folding Crank Handle with Integrated Drive Brake
  • Upper-Arm adjusting Ball-bearing drive system, with Integrated Balance Spring-assist
  • Extreme Duty Top Plate, Upper Arm, and Housings for Outriggers up to 22ft in length
  • Stainless-Steel & Bronze bushed Head pivot for Maximum trolling strength & durability
  • Unique invertible Tigress handle design for use on both soft and hard tops over 2” thick
  • Accepts all Tigress XD 1-1/2” butt diameter outriggers and XD 1-1/8” butts using an adapter
  • Fits Tigress and other industry-standard 4” x 6” mounting plates (four 5/16” diameter fasteners)
  • Extreme-duty 316L Stainless Steel and anodized aluminum and sealed construction with UV protection
  • 24 adjustable/locking system positions featuring Tigress XD 316L Stainless Steel design
  • Ergonomic 316 Stainless Steel mirror-polished lever design with inverting ability for extra hand clearance on the thickest tops
  • User-friendly underside lever actuation, with 8 optional indexable set-up positions
  • Fits through all standard 3” diameter mounting plates and hardtop holes
  • Sold as pair
  • 3-Year Limited Warranty

Product Specifications

Tigress XD Crank Top Mount [88880] Product Specifications

Technical Specifications:

Model: 88880
Brand: Tigress

Product Type: XD Crank Top Mount (pair) for Telescoping Outriggers

Boat Size Compatibility: Designed for sport fishing boats up to 50 ft

Mounting Dimensions:

  • Fits standard 4″ × 6″ mounting plates with four 5/16″ fasteners

  • Mounts through 3″ diameter hard-top holes

Mechanism & Adjustability:

  • Upper-arm crank with folding handle and integrated drive brake

  • Ball-bearing drive and balance spring assist for smooth operation

  • Includes both “Run” and “Laydown” stops for easy transition to transport/storage

  • 24 locking positions for precision outrigger angle adjustment with stainless lever and eight underside indexable positions

Construction Materials:

  • Machined from 316L stainless steel and anodized aluminum

  • Sealed, UV-resistant construction with stainless-bronze bushed pivot

Outrigger Compatibility:

  • Accepts Tigress XD 1½″ butt-diameter outriggers

  • Adaptor available for 1⅛″ XD poles

Unique Features:

  • Invertible handle accommodates both soft and thick tops (up to 2″)

Warranty: 3‑Year Limited Warranty

Key Benefits:

  • Built tough & smooth: Designed for rugged offshore use with precision operation

  • Highly adjustable: Multiple angle settings and travel stops make it versatile

  • Professional fit: Compatible with industry-standard mounting plates—ideal upgrade for serious anglers
