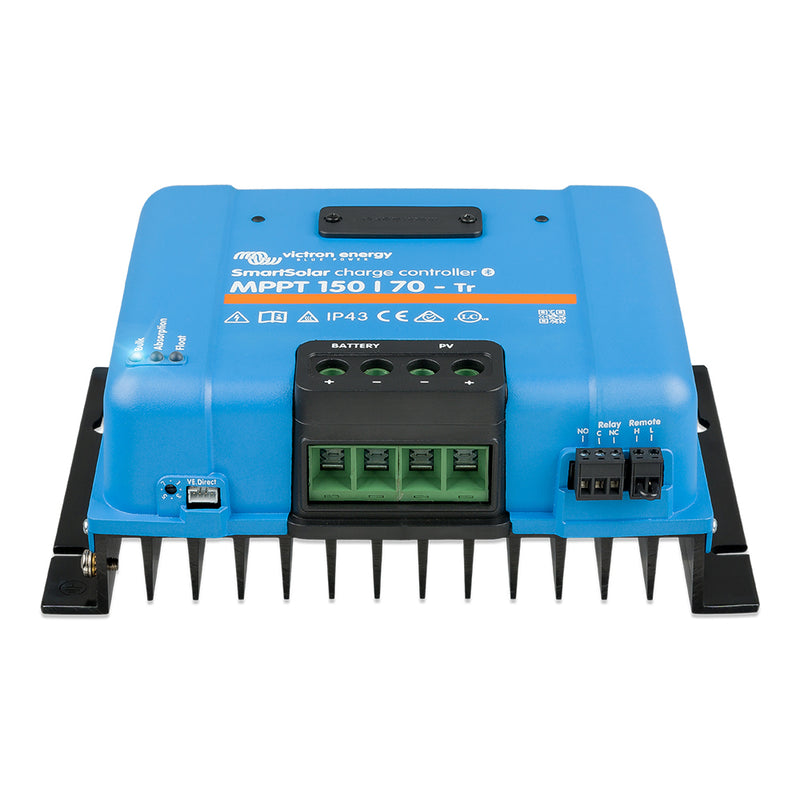

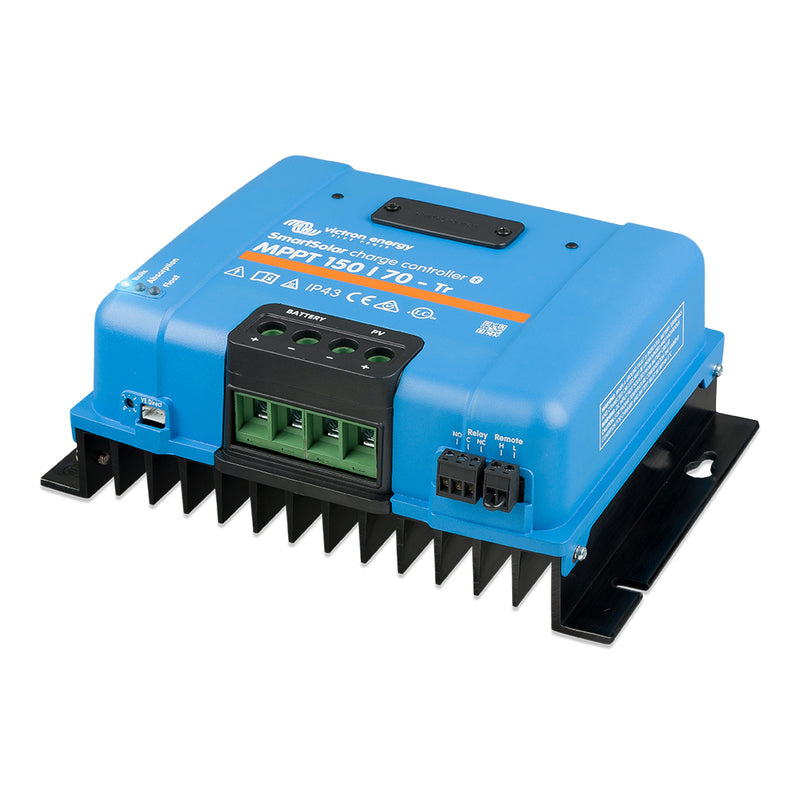

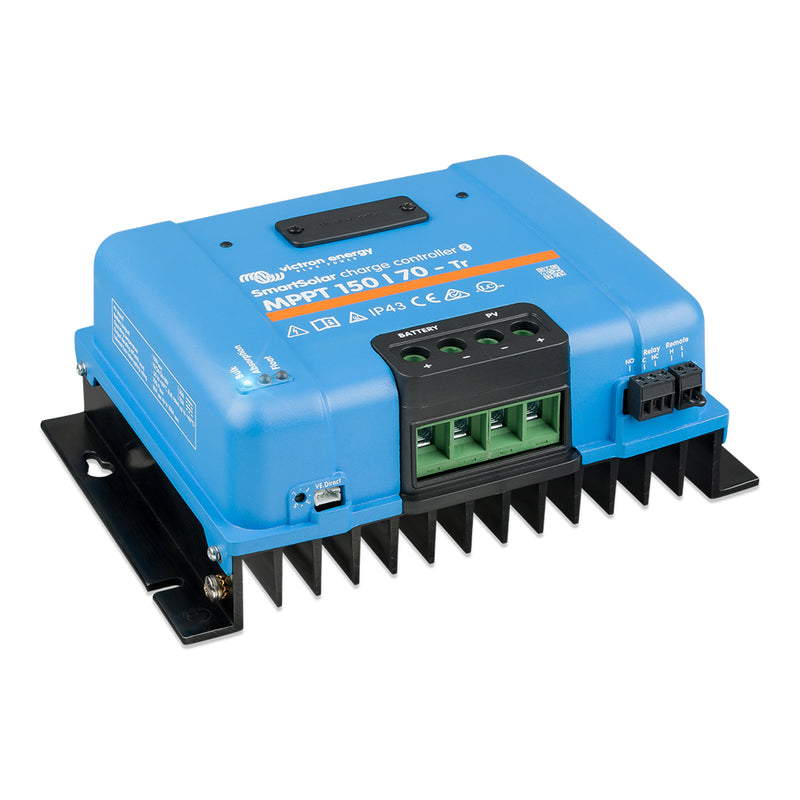

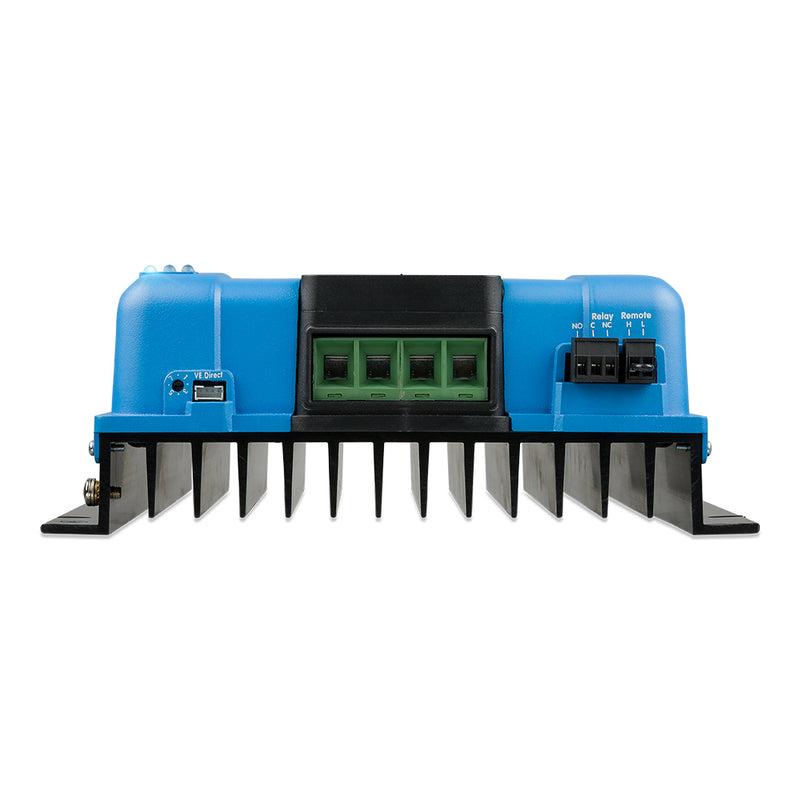

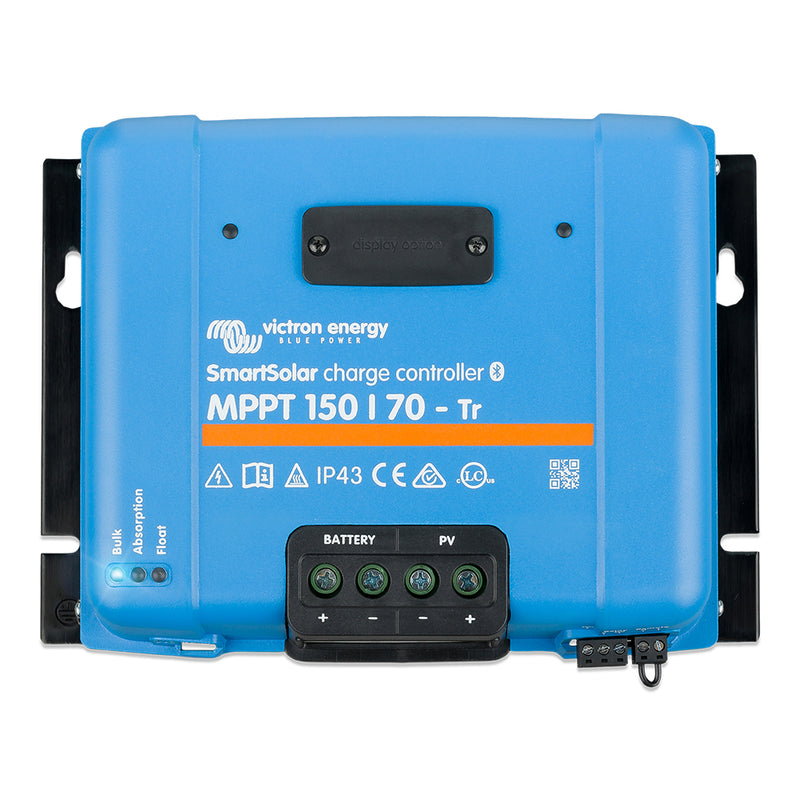

Victron Energy SmartSolar MPPT 150/70-TR Solar Charge Controller - UL Approved [SCC115070211]

Features:

• Bluetooth Smart built-in The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.
• Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
• Advanced Maximum Power Point Detection in case of partial shading conditions If partial shading occurs, two or more maximum power points (MPP) may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
• Outstanding conversion efficiency No cooling fan. Maximum efficiency exceeds 98%.
• Flexible charge algorithm Fully programmable charge algorithm (see the software page on our website), and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details).
• Extensive electronic protection Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.
• Internal temperature sensor Compensates absorption and float charge voltage for temperature.
• Optional external battery voltage and temperature sensing via Bluetooth A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers.
• VE.Direct For a wired data connection to a Color Control GX, other GX products, PC or other devices
• Remote on-off To connect for example to a VE.BUS BMS.
• Programmable relay Can be programmed to trip on an alarm, or other events

Once purchased and in use, this product is non-returnable.

Product Specifications

Victron Energy SmartSolar MPPT 150/70-TR Solar Charge Controller - UL Approved [SCC115070211] Product Specifications

Power & Input Specifications:

• Maximum PV Open-Circuit Voltage (Voc): 150 V (start-up) / 145 V operating

• Battery Voltage Range: 12 V, 24 V, or 48 V systems (auto-detected)

• Rated Charge Current: 70 A

• Maximum PV Input Power:

  • 1000 W @ 12 V

  • 2000 W @ 24 V

  • 4000 W @ 48 V

Efficiency & Charging Features:

• Peak Efficiency: 98%

• MPPT Tracking: Ultra-fast maximum power point tracking

• Battery Charging Algorithm: Adaptive three-stage charging (bulk, absorption, float)

• Deep-Discharge Recovery: Charges batteries down to 0 V

• Self-Consumption: <35 mA (12 V), <20 mA (48 V)

Connectivity:

• VE.Can Port: For parallel operation and communication

• VE.Direct Port: For monitoring and integration

• Built-in Bluetooth: Wireless monitoring via VictronConnect app

• Remote On/Off Terminal: For external control

• Programmable Relay: Configurable for alarm or other functions

Safety & Protection:

• Electronic Protections:

  • Over-temperature

  • PV short circuit

  • Reverse polarity (PV and battery)

  • Battery over-voltage

• Parallel Charging Support: Up to 25 units via VE.Can

• Snag-Free Design: Minimizes risk of fouling and line damage

Physical & Environmental:

• Dimensions: 185 x 250 x 95 mm

• Weight: Approx. 3 kg

• Enclosure: Fanless, convection cooled

• Operating Temperature Range: –30 °C to +60 °C

• Humidity: Max. 95%, non-condensing

• Altitude Rating: Full power up to 5000 m

• Ingress Protection: IP43 (electronics), IP22 (connection area)

Product Manual

Quick Guide (pdf)

Product Warranty

Victron Energy Product Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries; 2 years from date of purchase by the end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries; 3 years from date of purchase by the end-user. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before expiration of the original term.

During the warranty period, Victron Energy will, at its discretion, repair, replace or credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

• Reverse of battery polarity.

• Inadequate connection.

• Mechanical shock or deformation.

• Contact with liquid or oxidation by condensation.

• Use in an inappropriate environment(dust, corrosive vapor, humidity, high temperature, biological infestation...).

• Breakage or damage due to lightning.

• Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening.

• For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair, replacement or credit are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended.

All remedies and the measure for damages are limited to the above.

Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of five (5) years from the date of purchase, with the exception of batteries. For lead acid batteries a two (2) year period applies and for lithium batteries a three (3) year period applies.
