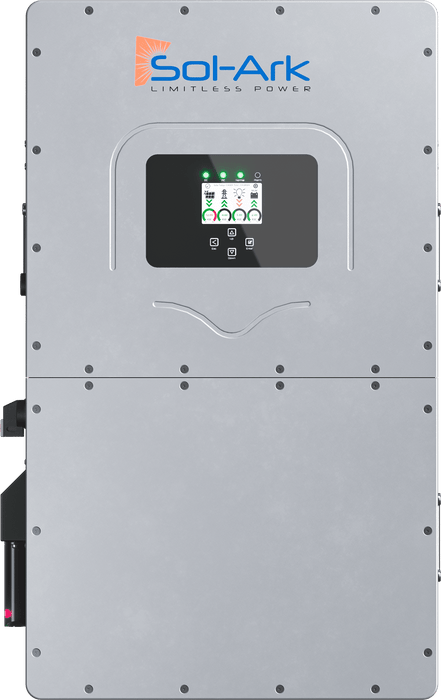

Sol-Ark 30K-3P | 30kW Commercial Inverter | 208 VAC 3 Phase | High Voltage DC Battery | Indoor/Outdoor | NEMA-3R

Description

The Sol-Ark 30K-3P-208V-N offers both AC and DC coupling, a maximum output of 30kW, and includes a 200A Transfer Switch with an ultra-fast 5ms response time. With four MPPT channels, you can efficiently manage and harvest energy from various inputs, and the built-in PV disconnect switch and rapid shutdown keep your entire system safe. The inverter also provides continuous AC grid/generator power at 72kW with a 200A input.

Operating at 120/208V Three Phase, this inverter was designed specifically to meet the needs of commercial and high-end residential settings. The built-in WiFi and LAN communication capabilities allow for remote monitoring and control of your entire Sol-Ark fleet from wherever you are. Additionally, you can stack up to 12 of these inverters in parallel.

Features:

  • 200A built-in transfer switch
  • Able to be in parallel with up to 12 units
  • Capable of different modes, including grid sell, limited power to home, limited power to load, and time of use
  • Able to turn on loads when excess power is available
  • UL 1741 certified
  • It has AC and DC coupling, allowing for a combination of DC-coupled and AC-coupled solar panels
  • Used with high-voltage batteries
  • Built-in Rapid shutdown and emergency stop
  • Built-in remote monitoring system

Product Specifications

Sol-Ark 30kW Inverter 208VAC 3-Ph, High Voltage DC Battery, Indoor/Outdoor NEMA-3R Product Specifications

  • 39,000W of Max Allowed PV Power
  • 500VDC Max PV Voltage
  • MPPT Voltage Range: 170-500V
  • 4 MPPTs
  • 100A of Battery Charge Current
  • Idle Consumption: 60W
  • 96% Efficiency
  • 300V+ battery voltage
  • Hybrid All-In-One unit
  • UL 1741-2001 Certified

Product Manuals

30K-3P UL1741 CRD Power Control System (PCS) Certification
30K-3P-208V Datasheet
30K-3P-208V Installation Manual
30K-3P-208V UL1741SB and UL1699 Certificate
30K-3P-208V Wiring Diagrams

Product Warranty

Limited Warranty: Sol-Ark 30K-3P-208V

Product FAQs

N/A
