Growatt 11.4kW Grid-Tie Inverter | MIN11400TL-XH-US | V3

Description

Efficient and Versatile: Growatt 11.4kW Grid Tie Inverter

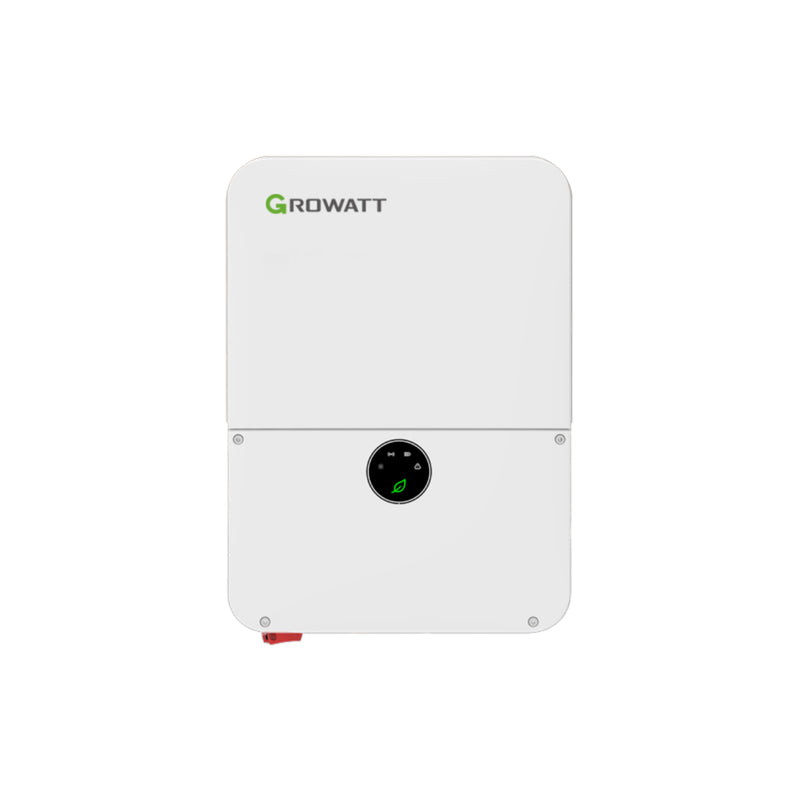

The Growatt 11.4kW Grid-Tie Inverter (MIN11400TL-XH-US) offers advanced performance with a nominal output of 11,400W and up to 98.5% efficiency, ensuring maximum energy production for both residential and commercial solar systems. Designed to handle up to 22,800W of PV input, this inverter features 4 MPP trackers and supports both DC and AC coupled systems for flexibility in diverse setups. It also includes battery readiness, backup power functionality, and dark start operation, making it an ideal choice for homes and businesses seeking reliable and efficient solar solutions. With enhanced safety features like AFCI, RSD, and compliance with UL1741SA/SB, CA Rule 21, and HECO, it guarantees the highest standards of protection and performance.

Key Features:

  • Nominal Output of 11,400WĀ with high efficiency up to 98.5%
  • Battery ReadyĀ for DC and AC coupled systems
  • Supports Backup PowerĀ andĀ Dark StartĀ functionality
  • 4 MPP TrackersĀ for optimized energy harvesting
  • Operating Temperature RangeĀ from –13°F to +140°F for reliable performance in all conditions
  • NEMA4X (IP65) RatedĀ for durability in outdoor environments
  • UL1741SA/SB, CA Rule 21, and HECO CompliantĀ for safety and regulatory compliance
  • Built-in 4G/Wi-Fi CommunicationĀ for remote monitoring via App (iOS, Android, Windows)

From unboxing to install, we’re with you every step. Reach out to our lifetime, USA-based support team anytime you need guidance.

Product Specifications

Growatt 11.4kW Grid-Tie Inverter | MIN11400TL-XH-US | V3 Product Specifications

Category Specification
Model MIN11400TL-XH-US (V3)
Nominal Output Power 11,400W (11.4kW)
Maximum PV Input Power 22,800W
Maximum MPPT Operating Voltage 550V
Rated AC Output Voltage 240V (Single-phase)
Maximum Output Current 48A
Maximum Efficiency 98.5%
MPPT Trackers 4
Strings per MPPT 2
DC/AC Ratio Up to 2.0
Battery Compatibility DC and AC coupled systems; supports Growatt ARO/APX high-voltage batteries
Backup Power Yes (Whole home backup and dark start functionality)
Safety Features AFCI, RSD, Anti-islanding, Ground Fault, Grid Monitoring, Type III AC Surge Protection
Certifications UL1741SA/SB, UL1741, UL9540, CA Rule 21, HECO
Operating Temperature Range –13°F to +140°F
Protection Rating NEMA4X (IP65)
Cooling Method Natural convection
Communication Built-in 4G/Wi-Fi, RS485, CAN2.0, SunSpec, App (iOS, Android, Windows)
Dimensions (W x H x D) 15.8" x 25.2" x 7" (400 x 638 x 187 mm)
Weight 45.2 lbs (20.5 kg)
Warranty 10 years
