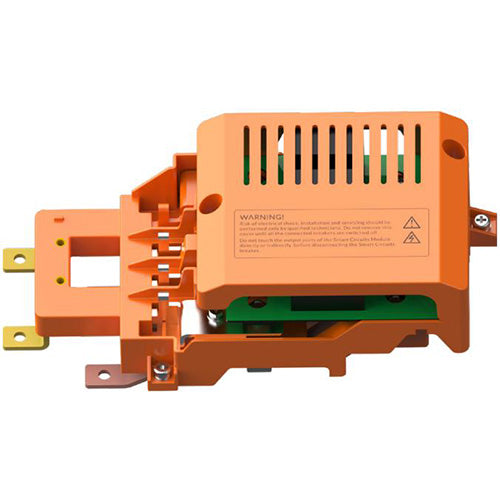

FranklinWH Smart Controllable Circuits Module | ACCY-SCV2-US
Description
Home electrical devices are becoming increasingly more intelligent and connected. Homeowners can manage individual devices through networked software linked to smart phones. However, that focus is on those devices regardless of the power being supplied to the home.
The Franklin Home Power (FHP) system is an intelligent home energy solution that enables you to manage your home's energy. The FHP integrates solar, energy storage (batteries), the utility grid, and even standby generators into a single app to allow you to manage your power consumption, and supply, day-to-day and during grid outages. The FranklinWH aGate is the smart controller that manages power supply. The aGate can be programmed to optimize daily energy supply, including to minimize grid usage during expensive, high-demand periods. Load shifting helps homeowners by relying on battery and solar power during those peak periods, while recharging batteries during low-demand, low-price time periods.
However, some loads are unique. Electric vehicle (EV) chargers, air conditioners, and other electrical devices need to be managed more intelligently. The FranklinWH Smart Circuits Module, an optional aGate component, provides the ability to manage those unique devices remotely and automatically from anywhere and anytime.Users can connect and disconnect up to three Smart Circuits via the FranklinWH app. Smart Circuit 1 & Smart Circuit 2, 1-pole circuit breakers, can be merged into a single, 2-pole circuit as needed. SmartCircuit 3 requires a 2-Pole circuit breaker.
In the FranklinWH app, homeowners can schedule times for the circuits to automatically turn on and off. For instance, the EV charger can be setto only run from 1:00 am to 5:00 am, during a low-demand, low-cost period. Alternatively, homeowners can manually turn on and turn off individual Smart Circuits as needed. An example of this is turning on the air conditioner shortly before returning home.
Time-of-use Load Shifting
Utilities companies continue to migrate to a time-of-use (TOU) billing plan. The cost of a kilowatt-hour of energy varies throughout the day, and the week, depending on expected user demand. That means afternoon and evening hours are usually the most expensive while late night and early morning are typically the least expensive.
The above EV charger example shows how load shifting can save money. When a homeowner returns home and plugs the car into the charger, that's typically early evening. If the car charged then, it would be at the highest billed rate.
Smart Circuits allow the owner to plug in and forget about the charge. The set schedule will turn on the charger during the lowest billing rate period, saving money.
Backup Energy Management
When the FHP is running from batteries, either because of a grid outage or because the home is completely off-grid, Smart Circuits can be automatically managed.
Homeowners can set a state-of-charge (SOC) threshold below which the Smart Circuits are automatically turned off. When the FranklinWHaPower batteries drop below the set SOC level, the circuits are disconnected. When the solar array, a generator, or the grid powers the batteries back above the SOC threshold, the circuits will be reconnected.
This is good for devices such a pool pump, as shutting it down will provide longer backup time for other household devices.
Easy Control
- Remotely and automatically manage unique family loads, connecting and disconnecting them easily via the FranklinWH app
Cost Saving
- Set the appropriate working time for family appliances, add convenience to your daily life
Smart Use
- Work within TOU rate structures to power large loads at a low electricity price.
Product Specifications
FranklinWH Smart Controllable Circuits Module | ACCY-SCV2-US Product Specifications
Product Manual
Product Warranty
FranklinWH Warranty
Twelve-Year Limited Warranty
It applies to the following FranklinWH System products (“Products” or “FranklinWH
System”)
*The aGate communications module, which supports Ethernet, Wifi, 4G, and Bluetooth, comes
with a limited warranty of up to 5 years. However, this warranty does not cover the continuity,
quality, strength, or coverage of 4G service at the location where the FranklinWH System is
installed.
The limited warranty includes a warranty period and performance warranty.
Warranty Period
FranklinWH warrants that your Products will be free from defects for twelve (12) years
starting from 1) the date of the initial installation; or 2) twelve (12) months from the
manufacture date, whichever comes first. FranklinWH will offer remedies according to
the Remedies section.
Performance Warranty
FranklinWH guarantees that the FranklinWH aPower X will have the rated energy
capacity of 13.6 kWh when this limited warranty begins, and the capacity retention will
be not less than 70% of the rated capacity when 1) the 12-year warranty period expires,
or 2) the aggregate energy throughput reached 43 MWh, whichever comes first.
Provided the products are installed and used as per the requirements in the installation
manual and the user manual.
Warranty Period
FranklinWH warrants that your Products will be free from defects for fifteen (15) years
starting from 1) the date of the initial installation; or 2) twelve (12) months from the
manufacture date, whichever comes first. FranklinWH will offer remedies according to
the Remedies section.
Performance Warranty
FranklinWH guarantees that the FranklinWH aPower 2 will have the rated energy
capacity of 15 kWh when this limited warranty begins, and the capacity retention will be
not less than 70% of the rated capacity when 1) the 15-year warranty period expires, or
2) the aggregate energy throughput reached 60 MWh, whichever comes first. Provided
the products are installed and used as per the requirements in the installation manual
and the user manual.
Remedies
If your FranklinWH System is defective within the warranty period, FranklinWH will, at its
sole discretion, repair or replace your faulty device (aPower/aGate) with an equivalent
product (new or refurbished). The remaining warranty period will be transferred to the
repaired or replacement product. Under no circumstances will the original warranty
period be extended as a result of your FranklinWH product being repaired or replaced.
FranklinWH can also refund you the actual purchase price of the defective products less
reasonable depreciation based on use at the time of the warranty claim when 1)
FranklinWH is unable to provide a replacement and repair is not commercially
practicable or cannot be timely made, or 2) You are willing to accept such a refund.
In the event of a defect, to the extent permitted by law, the above-mentioned repair,
replacement or refund are the sole and exclusive remedies that FranklinWH provide.
FranklinWH's responsibility under this warranty extends to valid service tickets or
replacement requests initiated before the expiration date of the warranty for items and
services covered by the warranty, even if the resolution occurs after the warranty period
has expired. All remaining liability shall terminate upon expiration of the warranty
period.
Warranty Exceptions
This Limited Warranty does not cover, and FranklinWH will not be liable for, any
defects, damages, or performance issues caused by, arising from, or related to any of
the following circumstances:
Misuse, Negligence, or Improper Use
- Damage due to improper use, misuse, abuse, negligence, unauthorized
modifications, or operating beyond intended conditions as outlined in product
documentation.
Shipping, Handling, and Storage Damage
Installation-Related Issues
- Installation performed by non-certified or unlicensed personnel, or installation
not adhering to FranklinWH installation instructions, guidelines, or applicable
local and federal electrical codes and standards. (Certification is required to
carry out installations. Learn more at: How Do I Get Certified)
Removal, relocation, reinstallation, or alteration of the product from its original
installation location without prior written consent from FranklinWH.
Unauthorized Repairs or Modifications
- Repair, disassembly, modification, tampering, or replacement attempts
performed by personnel not explicitly authorized by FranklinWH. Obtain
authorization by starting a service ticket and to ensure personnel are
FranklinWH Certified Installers.
Damage or defects arising from unauthorized third-party service or
maintenance actions.
Purchase from Unauthorized Channels
External and Environmental Factors
- Damage due to external environmental events, such as lightning, power surges,
floods, tidal waves, fires, earthquakes, storms, or other force majeure.
Installation in conditions outside of FranklinWH guidance, such as extreme
temperatures, humidity, altitude, or corrosive environments.
Physical or electrical stress beyond the documented operating conditions,
including exposure to abnormal voltage, power surges, or interference. For
detailed technical specifications, refer to the Product Data Sheet.
Failure to Report Issues in a Timely Manner
- Defects, damage, or performance problems not reported to FranklinWH or your
certified installer within two (2) months from the date of occurrence or
discovery.
Normal Wear, Tear, and Cosmetic Issues
- Regular wear, cosmetic imperfections, dents, scratches, glue marks,
discoloration, superficial defects, or cosmetic deterioration that do not
materially affect product performance or reliability. Paint should be limited to
external application for scratches and small damage as referenced in the
FranklinWH installation manuals.
Normal operating noise or vibration that is below 50 dB and does not adversely
affect system performance or reliability.
Remote Updates and Internet Connectivity
- To maintain the full warranty coverage (12-year or 15-year), your FranklinWH
System must maintain consistent internet connectivity allowing FranklinWH
to remotely update system software.
By installing the FranklinWH System and connecting it to the internet, you agree
to allow FranklinWH to perform these remote software updates without prior
notice, which may temporarily interrupt system operation.
If the FranklinWH System remains disconnected from the internet for more than
90 consecutive days, FranklinWH will issue a notification requesting
reconnection. If internet connectivity is not restored, the warranty period will
automatically reduce to a four-year limited warranty from the initial
installation date.
Unregistered Products
- FranklinWH Systems must be registered at the time of installation. Systems
that are not registered upon installation will only be eligible for a four-year
limited warranty from the installation date.
