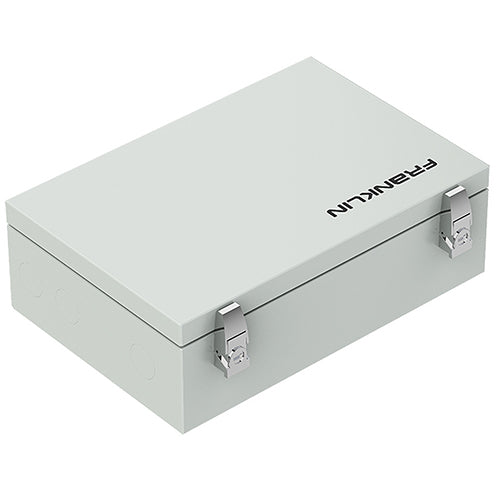

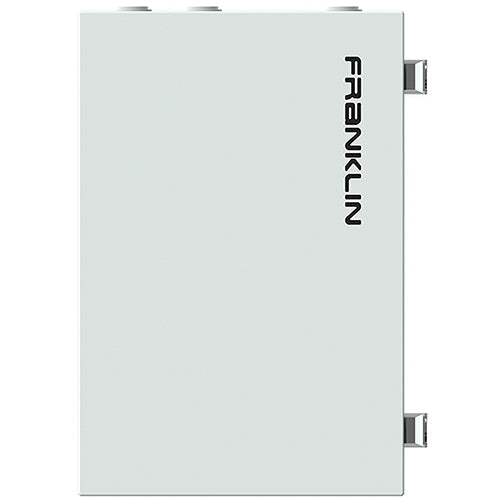

FranklinWH aPbox Remote Junction for Remote or Overside PV System | ACCY-RCV1-US
Description
FranklinWH aPbox
Remotely and automatically manage a solar system
There are circumstances in which a solar (PV) system cannot be connected through the aGate X solar breaker, either on grid side or load side. The FranklinWH aPbox is a junction that provides an intelligent solution, linking those PV systems into the Franklin Home Power architecture for ease of management and control.
When installing a Franklin Home Power (FHP) system alongside a PV system, there are multiple PV installation conguration which require different methods to connect them with a home energy management system such as the FHP. The aPbox is designed to help installers address those issues. It is also designed to protect the aPower X battery from overcharging while maximizing the utilization of photovoltaics.
The aPbox has built-in meters and current transformers (CTs)to measure electricity. It can also connect and disconnect the solar systems as conditions require.
Remote solar system
An existing solar system is far from the aGate X installation location and changing the power line wiring will increase overall costs. An aPbox can be used for easier connection without changing the power line route. Newly added solar systems can also use aPbox for control or metering. An aPbox can disconnect the solar system when it is over generating power in an Off-grid or blackout situation, or when excess generation can't be exported to the grid due to regulatory limitations
Oversized solar system
The total power of a solar system exceeds the maximum continuous current of 64A for the 80A solar circuit breaker in the aGate X. Panels providing the excess can be connected to load-side of the aGate X. and the aPbox will be used for metering and control.
Over generating solar system
The generated power of the solar system exceeds the total continuous power of the aPower X batteries installed. To prevent the entire solar system from being shut down. The excess production will be connected to load-side, and aPbox will be used for metering and control.
Flexible Configuration
- Flexibly arrange the power generated by the solar system to realize the maximum utilization of solar energy
Simple Installation
- Easily connect remote solar systems to the aGate X. Saving labor costs and shortening project time
Highly Compatible
- One aGate X can control up to 2 aPbox units. a maximum of 130A controllable solar current
Easy Control
- Automatically manage your solar system. In off-grid or blackout scenario. It will automatically control the overgenerating solar system
Product Specifications
FranklinWH aPbox Remote Junction for Remote or Overside PV System | ACCY-RCV1-US Product Specifications
Product Manual
N/A
Product Warranty
FranklinWH Warranty
Twelve-Year Limited Warranty
It applies to the following FranklinWH System products (“Products” or “FranklinWH
System”)
*The aGate communications module, which supports Ethernet, Wifi, 4G, and Bluetooth, comes
with a limited warranty of up to 5 years. However, this warranty does not cover the continuity,
quality, strength, or coverage of 4G service at the location where the FranklinWH System is
installed.
The limited warranty includes a warranty period and performance warranty.
Warranty Period
FranklinWH warrants that your Products will be free from defects for twelve (12) years
starting from 1) the date of the initial installation; or 2) twelve (12) months from the
manufacture date, whichever comes first. FranklinWH will offer remedies according to
the Remedies section.
Performance Warranty
FranklinWH guarantees that the FranklinWH aPower X will have the rated energy
capacity of 13.6 kWh when this limited warranty begins, and the capacity retention will
be not less than 70% of the rated capacity when 1) the 12-year warranty period expires,
or 2) the aggregate energy throughput reached 43 MWh, whichever comes first.
Provided the products are installed and used as per the requirements in the installation
manual and the user manual.
Warranty Period
FranklinWH warrants that your Products will be free from defects for fifteen (15) years
starting from 1) the date of the initial installation; or 2) twelve (12) months from the
manufacture date, whichever comes first. FranklinWH will offer remedies according to
the Remedies section.
Performance Warranty
FranklinWH guarantees that the FranklinWH aPower 2 will have the rated energy
capacity of 15 kWh when this limited warranty begins, and the capacity retention will be
not less than 70% of the rated capacity when 1) the 15-year warranty period expires, or
2) the aggregate energy throughput reached 60 MWh, whichever comes first. Provided
the products are installed and used as per the requirements in the installation manual
and the user manual.
Remedies
If your FranklinWH System is defective within the warranty period, FranklinWH will, at its
sole discretion, repair or replace your faulty device (aPower/aGate) with an equivalent
product (new or refurbished). The remaining warranty period will be transferred to the
repaired or replacement product. Under no circumstances will the original warranty
period be extended as a result of your FranklinWH product being repaired or replaced.
FranklinWH can also refund you the actual purchase price of the defective products less
reasonable depreciation based on use at the time of the warranty claim when 1)
FranklinWH is unable to provide a replacement and repair is not commercially
practicable or cannot be timely made, or 2) You are willing to accept such a refund.
In the event of a defect, to the extent permitted by law, the above-mentioned repair,
replacement or refund are the sole and exclusive remedies that FranklinWH provide.
FranklinWH's responsibility under this warranty extends to valid service tickets or
replacement requests initiated before the expiration date of the warranty for items and
services covered by the warranty, even if the resolution occurs after the warranty period
has expired. All remaining liability shall terminate upon expiration of the warranty
period.
Warranty Exceptions
This Limited Warranty does not cover, and FranklinWH will not be liable for, any
defects, damages, or performance issues caused by, arising from, or related to any of
the following circumstances:
Misuse, Negligence, or Improper Use
- Damage due to improper use, misuse, abuse, negligence, unauthorized
modifications, or operating beyond intended conditions as outlined in product
documentation.
Shipping, Handling, and Storage Damage
Installation-Related Issues
- Installation performed by non-certified or unlicensed personnel, or installation
not adhering to FranklinWH installation instructions, guidelines, or applicable
local and federal electrical codes and standards. (Certification is required to
carry out installations. Learn more at: How Do I Get Certified)
Removal, relocation, reinstallation, or alteration of the product from its original
installation location without prior written consent from FranklinWH.
Unauthorized Repairs or Modifications
- Repair, disassembly, modification, tampering, or replacement attempts
performed by personnel not explicitly authorized by FranklinWH. Obtain
authorization by starting a service ticket and to ensure personnel are
FranklinWH Certified Installers.
Damage or defects arising from unauthorized third-party service or
maintenance actions.
Purchase from Unauthorized Channels
External and Environmental Factors
- Damage due to external environmental events, such as lightning, power surges,
floods, tidal waves, fires, earthquakes, storms, or other force majeure.
Installation in conditions outside of FranklinWH guidance, such as extreme
temperatures, humidity, altitude, or corrosive environments.
Physical or electrical stress beyond the documented operating conditions,
including exposure to abnormal voltage, power surges, or interference. For
detailed technical specifications, refer to the Product Data Sheet.
Failure to Report Issues in a Timely Manner
- Defects, damage, or performance problems not reported to FranklinWH or your
certified installer within two (2) months from the date of occurrence or
discovery.
Normal Wear, Tear, and Cosmetic Issues
- Regular wear, cosmetic imperfections, dents, scratches, glue marks,
discoloration, superficial defects, or cosmetic deterioration that do not
materially affect product performance or reliability. Paint should be limited to
external application for scratches and small damage as referenced in the
FranklinWH installation manuals.
Normal operating noise or vibration that is below 50 dB and does not adversely
affect system performance or reliability.
Remote Updates and Internet Connectivity
- To maintain the full warranty coverage (12-year or 15-year), your FranklinWH
System must maintain consistent internet connectivity allowing FranklinWH
to remotely update system software.
By installing the FranklinWH System and connecting it to the internet, you agree
to allow FranklinWH to perform these remote software updates without prior
notice, which may temporarily interrupt system operation.
If the FranklinWH System remains disconnected from the internet for more than
90 consecutive days, FranklinWH will issue a notification requesting
reconnection. If internet connectivity is not restored, the warranty period will
automatically reduce to a four-year limited warranty from the initial
installation date.
Unregistered Products
- FranklinWH Systems must be registered at the time of installation. Systems
that are not registered upon installation will only be eligible for a four-year
limited warranty from the installation date.
