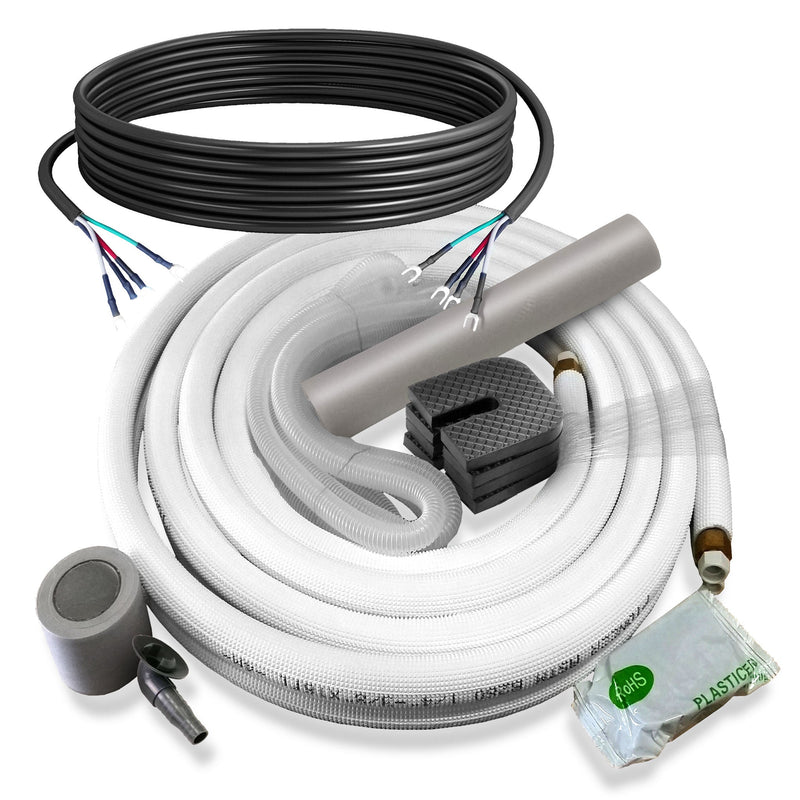

Include System Installation Kit: Add Standard Copper Lineset
Installation Kit Length: 10 Ft.
Profile Pic

Have a question? Talk to one of our trusted experts today!

Instant Live Chat: Chat IconChat Now

Call or Text us: Phone Icon 415-481-4075

Price Match Policy

Price Match

Here at OffGrid Living, we want to offer you the best prices online.

If you happen to find a lower price for the same product, we will guarantee to match their price or beat their price. Note, this does not apply to all products in the store. Please reach out to us via email or chat if you want a price match or price beat.

For the policy to apply, please send us a screenshot, link, or any other evidence of the product being priced lower than ours before making the purchase.

Refer to our Price Match Policy Rules.

Refunds & Returns Policy

At OffGrid Living, we are proud to have the best refund and return policies in the industry. If you’re not satisfied with your purchase for any reason, you may return it to us within 30 days for a refund.

If you have a problem with our order (there are missing components, damages, or the product is not functioning), please reach out to us as quickly as possible. Some of the problems can be resolved by going through the product manual or the product FAQs.

Refer to our Refunds & Return Policy for more details.

Shipping & Delivery

Order Processing

Once we receive your order, we will send you a confirmation email. Then we will process the order by confirming that the product is in stock and ready for shipment. If any of the items in your order are back-ordered, we will reach to you via email or phone and you may choose to either wait or receive a 100% refund.

Please allow 1-3 days for processing your order.

Shipping

We ship to the lower 48 continental United States only at this time.

Shipping times and shipping method will depend on the specific product and brand you purchase. If you have any shipping question, feel free to ask on the chat or email us at info@offgridlivingsolutions.com.

We will send tracking information by email the same day the shipping tracking number is created/available.

Before you sign the shipping bill, please THOROUGHLY INSPECT YOUR ITEM. Signing for the receipt of a damaged product removes the liability of the shipping company and OffGrid Living. Once you accept your shipment as non-damage, your item is your property.

Delivery time

Shipping Timeline listed above is an estimate. Please call or message the web chat for precise ETAs.

Pioneer® Quantum Ultra™ 24,000 BTU 23 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Heat Pump Full Set

Description

Quantum Ultra™ High-Wall Series

At Pioneer Mini Split, we offer ductless wall-mounted mini split systems in various capacities and efficiency ratings, making them easy to install and providing reliable single-zone comfort. Each unit features a remote control for cooling, heating, dehumidification, and ventilation, while automatic louvers and variable airflow ensure ideal conditions with minimal energy consumption.

IMPORTANT
The outdoor unit is pre-charged with
R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option unless you are providing one yourself.

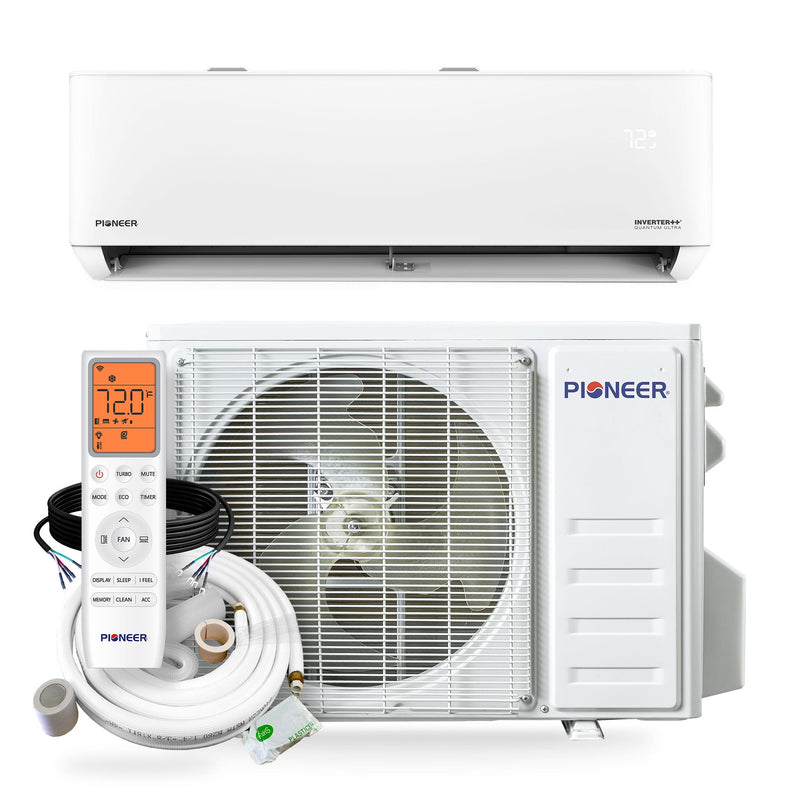

What's Included in Your Purchase

  • Indoor Unit
  • Outdoor Unit
  • Wireless Remote Control
  • Remote Control Wall Holder
  • Remote Control Batteries
  • Customizable Length Copper Lines
  • Customizable Length Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual

Summary

  • Ultra High Efficiency Quantum Ultra Ductless Mini Split Heat Pump System
  • Cooling capacity: 23,000 BTU/H with 23 SEER2 / 12 EER2 efficiency
  • Heating capacity: 25,000 BTU/H with 9.5 HSPF2 / 3.41 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • High Wall-Mounted Ductless Air Conditioning & Heating System

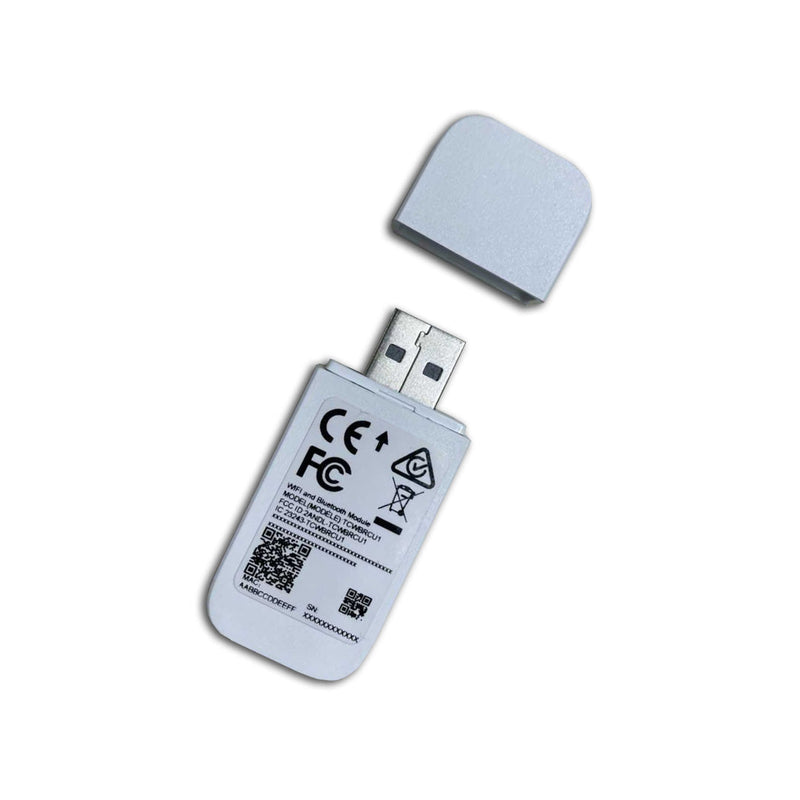

  • Wi-Fi Enabled and Controllable By Smartphone via the Free Pioneer Airlink App
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

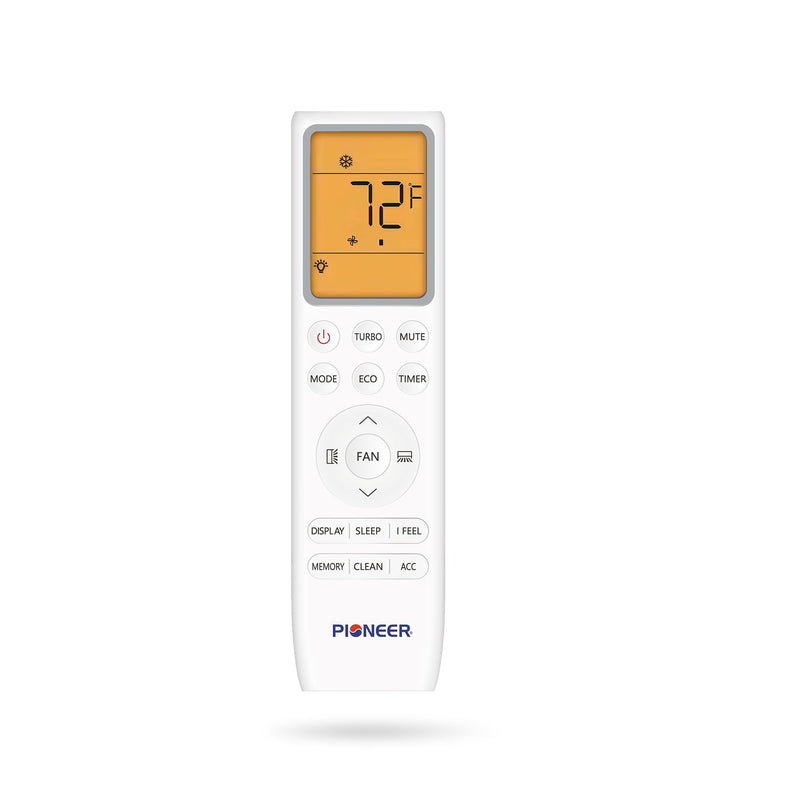

  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

Product Specifications

Pioneer® Quantum Ultra™ 24,000 BTU 23 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Heat Pump Full Set Product Specifications

  • System Kit
    • Power Supply: 208~230V, 60Hz, 1Ph
    • Cooling Rated Capacity: 23,000 BTU/h
    • Cooling Capacity Range: 4,700~25,000 BTU/h
    • Cooling SEER2: 23.0 BTU/W.h
    • Cooling EER2: 12.0 BTU/W.h
    • Heating Rated Capacity: 25,000 BTU/h
    • Heating Capacity Range: 4,700~26,500 BTU/h
    • Heating HSPF2 (Region IV): 9.5 / 8.2 BTU/W.h
    • Heating C.O.P.2 (47°F/5°F): 3.41 / 1.8 W/W
    • Refrigerant Type: R454b
    • Recommended Room Size: 750~1,000 Sq.F
    • Minimum Room Size: 62 sq ft
    • Minimum Installation Height: 6 ft
    • Piping Diameter: 1/4 x 5/8"
    • AHRI Reference: 217048753

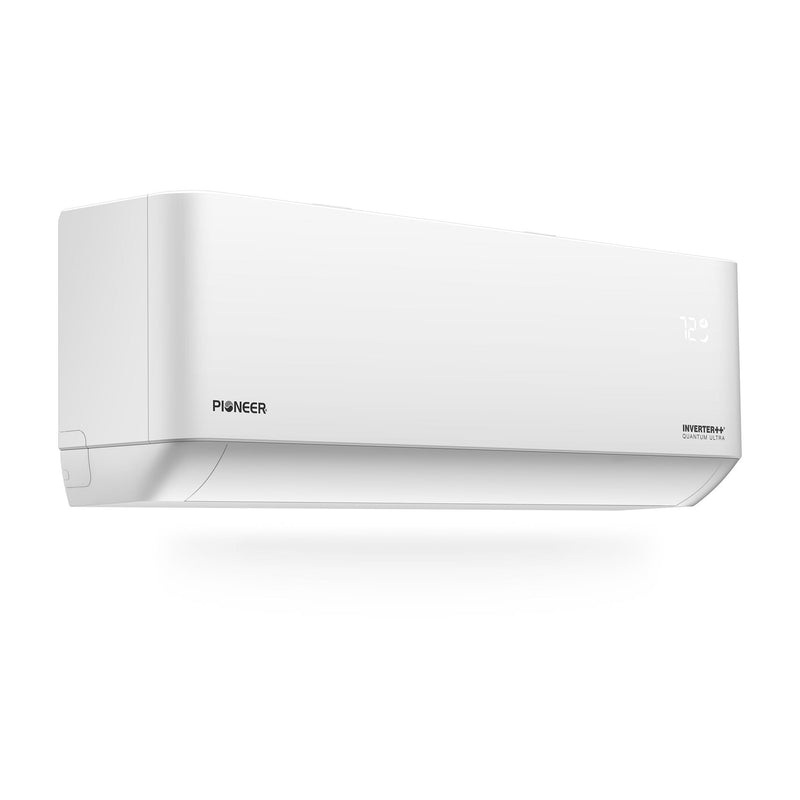

  • Indoor Unit
    • Part Number: WT024GLSI24HLG
    • Air Flow (Turbo/Hi/Med/Lo/Mute): 735/676/529/423/394 CFM
    • Sound Level (Turbo/Hi/Med/Lo/Mute): 50/47/43/38/34 dB(A)
    • Product Dimensions (WDH): 43"-1/8 x 8"-3/4 x 13"-1/8 Inches
    • Carton Dimensions (WDH): 45"-7/8 x 11"-5/8 x 16" Inches
    • Net / Gross Weight: 30.9 / 35.3 lbs.

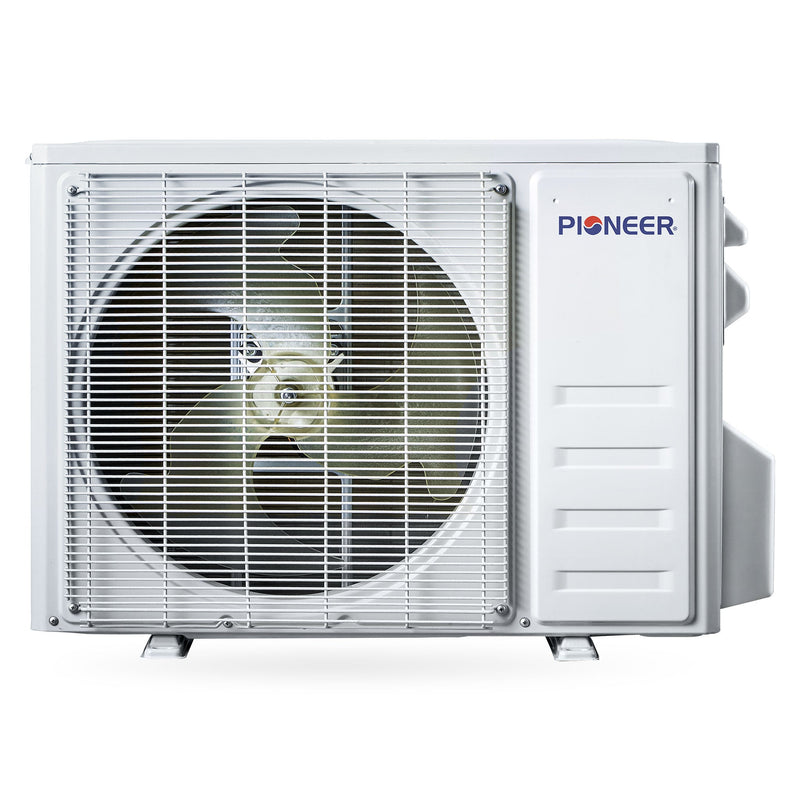

  • Outdoor Unit
    • Part Number: YN024GLSI24RPG
    • Breaker Needed: 20A (double-pole)
    • Sound Level: 54 dB(A)
    • Net Dimensions (WDH): 38"-1/2 x 16"-5/8 x 31"-5/8 Inches
    • Carton Dimensions (WDH): 40"-1/4 x 18"-7/8 x 31"-7/8 Inches
    • Net / Gross Weight: 104.7 / 113.5 lbs.

Dimension Chart

43⅛ 13⅛ 38½ 16⅝ 31⅝ ¾

Product Manual

Technical Brochure

User & Installation Manual

Service Manual

Disassembly Manual

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

  • Up to 5 years Warranty for Parts
  • Up to 5 years Warranty for Compressor
