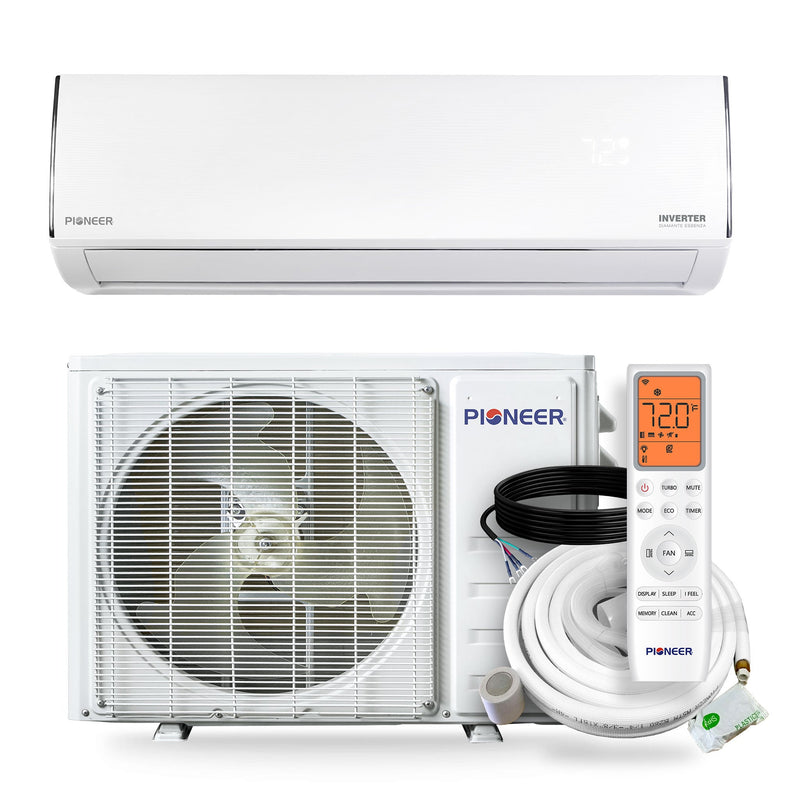

Pioneer® Diamante Essenza™ 24,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit

Pioneer Logo
Top Authorized Dealer
Manufacturer Warranty Included
SKU WYT024GLUI17RL
Save 30% Save 30%
Original price $1,749.00
Original price $1,749.00 - Original price $1,749.00
Original price $1,749.00
Current price $1,228.00
$1,228.00 - $1,228.00
Current price $1,228.00
Availability:
in stock, ready to be shipped

Get it between -

Profile Pic

Have a question? Talk to one of our trusted experts today!

Instant Live Chat: Chat IconChat Now

Call or Text us: Phone Icon 415-481-4075

Price Match Policy

Price Match

Here at OffGrid Living, we want to offer you the best prices online.

If you happen to find a lower price for the same product, we will guarantee to match their price or beat their price. Note, this does not apply to all products in the store. Please reach out to us via email or chat if you want a price match or price beat.

For the policy to apply, please send us a screenshot, link, or any other evidence of the product being priced lower than ours before making the purchase.

Refer to our Price Match Policy Rules.

Refunds & Returns Policy

At OffGrid Living, we are proud to have the best refund and return policies in the industry. If you’re not satisfied with your purchase for any reason, you may return it to us within 30 days for a refund.

If you have a problem with our order (there are missing components, damages, or the product is not functioning), please reach out to us as quickly as possible. Some of the problems can be resolved by going through the product manual or the product FAQs.

Refer to our Refunds & Return Policy for more details.

Shipping & Delivery

Order Processing

Once we receive your order, we will send you a confirmation email. Then we will process the order by confirming that the product is in stock and ready for shipment. If any of the items in your order are back-ordered, we will reach to you via email or phone and you may choose to either wait or receive a 100% refund.

Please allow 1-3 days for processing your order.

Shipping

We ship to the lower 48 continental United States only at this time.

Shipping times and shipping method will depend on the specific product and brand you purchase. If you have any shipping question, feel free to ask on the chat or email us at info@offgridlivingsolutions.com.

We will send tracking information by email the same day the shipping tracking number is created/available.

Before you sign the shipping bill, please THOROUGHLY INSPECT YOUR ITEM. Signing for the receipt of a damaged product removes the liability of the shipping company and OffGrid Living. Once you accept your shipment as non-damage, your item is your property.

Delivery time

Shipping Timeline listed above is an estimate. Please call or message the web chat for precise ETAs.

Pioneer® Diamante Essenza™ 24,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit

Description

Quantum Fresh™ High-Wall Series

Revolutionizing indoor comfort, the Quantum Fresh™ mini split collection blends advanced heating and cooling with the rejuvenating power of fresh air ventilation. These ultra-efficient, ductless heat pumps use inverter technology for precise climate control—while also drawing in outdoor air, filtering it, and blending it with indoor return air to help replenish oxygen and reduce stale buildup in your space.

IMPORTANT

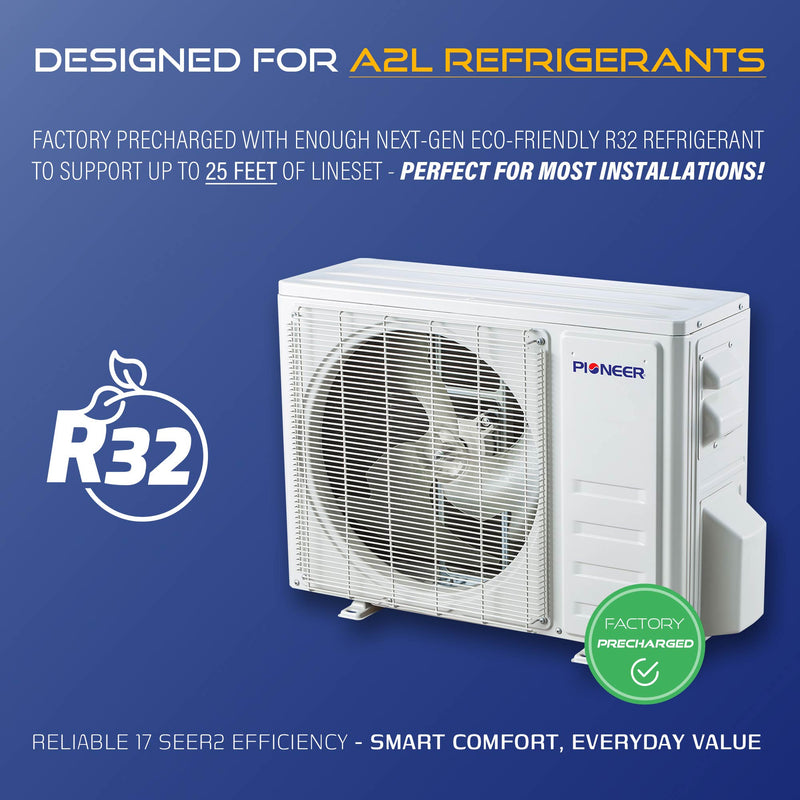

The outdoor unit is pre-charged with
R32 Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option unless you are providing one yourself.

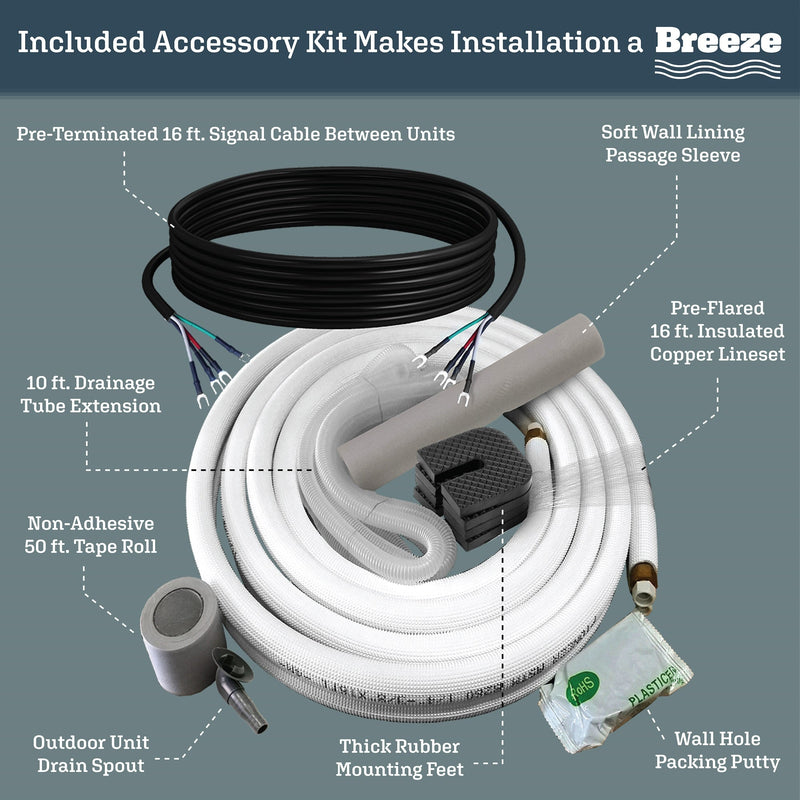

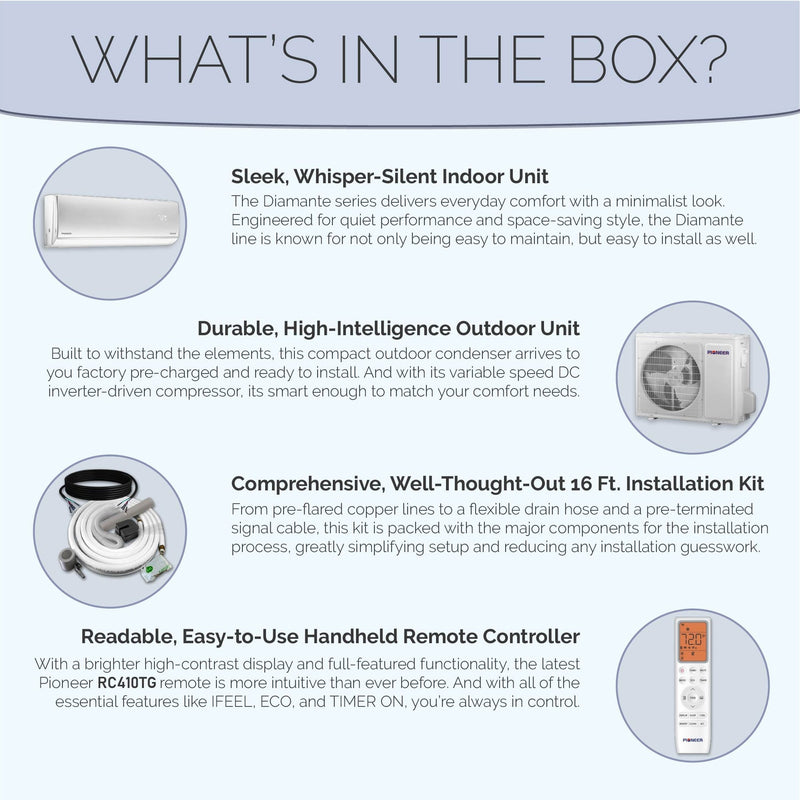

What's Included in Your Purchase

  • Indoor Unit
  • Outdoor Unit
  • Wireless Remote Control
  • Remote Control Wall Holder
  • Remote Control Batteries
  • Customizable Length Copper Lines
  • Customizable Length Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual

Summary

  • Standard Efficiency Diamante Essenza Ductless Mini Split Heat Pump System
  • Cooling capacity: 23,000 BTU/H with 17 SEER2 / 9.5 EER2 efficiency
  • Heating capacity: 22,400 BTU/H with 9.5 HSPF2 / 3.3 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • High Wall-Mounted Ductless Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R-32 Refrigerant
  • Standard Ambient Range Operation (As low as 5°F in Heating / As high as 122°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

 Product Specifications

Pioneer® Diamante Essenza™ 24,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit Product Specifications

  • System Kit
    • Power Supply: 208~230V, 60Hz, 1Ph
    • Cooling Rated Capacity: 23,000 BTU/h
    • Cooling Capacity Range: 5,120~24,500 BTU/h
    • Cooling SEER2: 17.0 BTU/W.h
    • Cooling EER2: 9.5 BTU/W.h
    • Heating Rated Capacity: 22,400 BTU/h
    • Heating Capacity Range: 5,120~24,500 BTU/h
    • Heating HSPF2 (Region IV): 9.5 / 8.5 BTU/W.h
    • Heating C.O.P.2 (47°F/5°F): 3.3 / 1.8 W/W
    • Refrigerant Type: R-32
    • Recommended Room Size: 600~950 sq ft
    • Minimum Room Size: 41 sq ft
    • Minimum Installation Height: 6 ft
    • Piping Diameter: 1/4-1/2"
    • AHRI Reference: 217048737
  • Indoor Unit
    • Part Number: WT024GLUI17HLD
    • Air Flow (Turbo/Hi/Med/Lo/Mute): 676 / 629 / 505 / 412 / 352 CFM
    • Sound Level (Turbo/Hi/Med/Lo/Mute): 50 / 48 / 46 / 40 / 37 dB(A)
    • Product Dimensions (WDH): 39-3/4 x 8-3/4 x 12-3/8 Inches
    • Carton Dimensions (WDH): 43-1/8 x 11-3/4 x 15-3/8 Inches
    • Net / Gross Weight: 26.5 / 33.1 lbs
  • Outdoor Unit
    • Part Number: YN024GLUI17RPD
    • Breaker Needed: 20A (double-pole)
    • Sound Level: 56 dB(A)
    • Net Dimensions (WDH): 34 x 13-3/4 x 23-5/8 Inches
    • Carton Dimensions (WDH): 35-1/2 x 15-7/8 x 26-7/8 Inches
    • Net / Gross Weight: 70.5 / 82.7 lbs

Dimension Chart

39¾ 12⅜ 34 13¾ 23⅝ ¾

Product Manual

Technical Brochure

User & Installation Manual

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

  • Up to 5 years Warranty for Parts
  • Up to 5 years Warranty for Compressor

Product FAQ's
