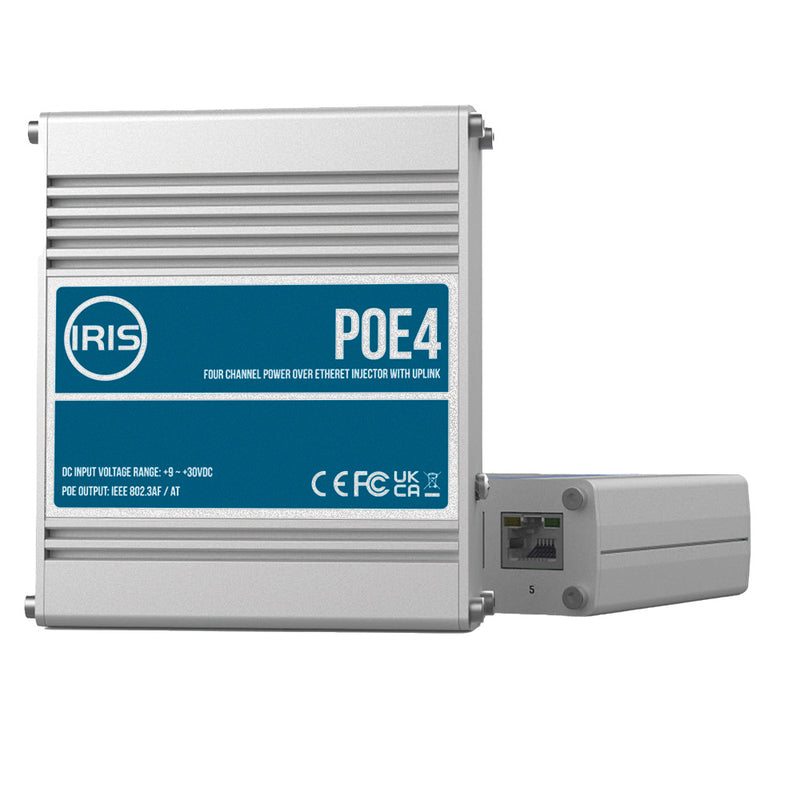

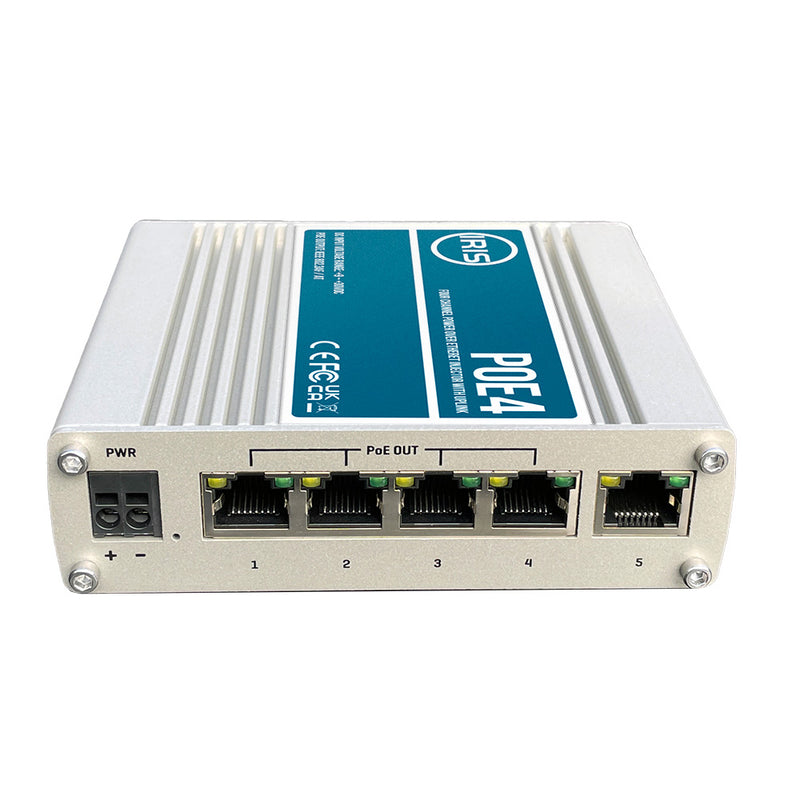

Iris Four Channel Uplink Power Over Ethernet Switch - IEEE802.3af Ā 3at Compliant - 9-30VDC Input - 48VDC Output [POE4V2]
The new PoE4v2 from Iris Innovations is a four-channel plus uplink power over Ethernet switch that operates over a wide DC input voltage range of 930VDC making it perfect for powering IEEE802.3af/3at devices from battery sources such as boats and vehicles.
The PoE4v2 outputs 48 VDC to your PoE device with a power budget of 60W in total and up to 30W per port, providing power to up to 4 devices at 15W each, 2 devices at 30W each, or 1 device at 30W, and further 2 devices at 15W.
The unit features a passive uplink port to enable connections to other network switch equipment, routers, or modems.
The PoE4v2 simplifies your installation as only a single network cable is required to connect and power your devices, reducing cost and adding convenience.
Features:
- Compact and robust housing
- Wide input voltage range of 930VDC
- Perfect for boats and vehicles
- 60W power budget
- IEEE802.3af / 3at compliant
- Up to 30W per channel
- Plug and play operation - no configuration required
- 48VDC PoE output voltage to your devices
- Provides power to devices up to a 100-meter cable length
- Simplifies installations
Product Specifications
Iris Four Channel Uplink Power Over Ethernet Switch - IEEE802.3af Ā 3at Compliant - 9-30VDC Input - 48VDC Output [POE4V2] Product Specifications
Specifications:
- Weight & Dimensions: 0.350 Kg / 115 mm x 32 mm x 95 mm
- Material: Aluminium, soft anodized
- PoE Ports / Standard: Ports 14 IEEE802.3af / 802.3at + 1 Uplink Port (non PoE)
- Total PoE Budget: 60W across 4 PoE Ports
- Maximum Cable Length: 100 Meters
- Approvals / Standards CE, UKCA, FCC, IC, REACH, RoHS, WEEE / EN IEC 62368:12020+A11:2020 EN60945:2002 Section 9 & 10
- Input Voltage Range: 9 30 VDC
- Output Voltage: 48 VDC
- Power Consumption Idle: 0.8W / Max: 2.2W / PoE Max: 106W
- Environmental: IP30 - Install in a dry dust free environment. Do not expose to moisture.
Product Manual
Product WarrantyĀ
Iris Innovations Warranty
Limited Warranty
DEFINITIONS:
āIrisā refers to Iris Innovations Limited, Iris Innovations LLC or any of its subsidiaries.
WARRANTY COVERAGE
This product is warranted to be free from defects in materials or workmanship for two years from the dateĀ of purchase.
Within this period, Iris will, at its sole option, repair or replace any components that fail in normal use at noĀ charge to the customer for parts or labour, provided that the customer shall be responsible for anyĀ transportation cost, or any associated costs that arise as a result of international customs clearanceĀ processes.
EXCEPTIONS
This warranty does not apply to the following:
ā¢ Cosmetic damage such as scratches, nicks and dents
ā¢ Consumable parts, such as batteries or removable data storage, unless damage has occurred due to aĀ defect in materials or workmanship of the product.
ā¢ Damage caused by accident, abuse, misuse, water, flood, fire, or other acts of nature or externalĀ causes.
ā¢ Damage that has occurred due to poor installation practices.
ā¢ Damage caused by service performed by unauthorised service providers .
ā¢ Damage to a product that has been modified in any way, including painting, without the writtenĀ permission of Iris.
ā¢ Damage to a product that has been connected to power or data cables not supplied by Iris or notĀ suitable for the intended purpose
ā¢ Product is only warranted if sold to the original customer within 5 years from manufacture
ā¢ Iris will refuse any warranty where the product has been resold, sold or acquired via an unauthorisedĀ dealer, online auction or acquired dubiously.
Iris cameras and camera systems are intended to be used as an aid to travel, situational awareness and onĀ water safety and therefore must not be used for any purpose requiring precise measurement of direction,Ā distance, location or topography.
RETURN SHIPPING / WARRANTY SERVICE
To obtain warranty service contact your local authorised Iris vendor. If you purchased directly from Iris then contact your local Iris branch. You will be provided shipping instructions and an RMA tracking number. Please note, the RMA tracking number is a reference number generated to allow you to track the progress of the repair and does not relate to any shipping reference. You will need to provide the product serial number and a copy of the original sales receipt / invoice which is required as proof of purchase for warranty repairs. The product serial number and/or invoice reference will be used to determine whether the item is still covered within its original warranty period, or extended warranty period if applicable. Providing theĀ goods are covered by the warranty term you will be issued with your RMA reference number. Securely packĀ the device along with a copy of the RMA form you will be issued. Please note - failure to securely pack theĀ goods when returning may also result in the warranty becoming invalid as damage caused through poorlyĀ packaged shipments is not covered by the warranty. Please ensure, when returning any goods to us, theyĀ are appropriately packed so as not to cause any damage which may invalidate your warranty. Iris are notĀ responsible for any products that are lost during shipping and recommends consignments are adequatelyĀ insured.
When your RMA reference is issued you will be provided a return shipping address in accordance with yourĀ location. The costs of returning items for warranty repair are not covered by the warranty, although Iris mayĀ arrange collection at its discretion depending on the circumstances. The same applies to any customsĀ charges that may arise as a result of having to ship goods internationally for repair.
Upon receipt of the goods, Iris will, at its option, repair or replace (with a new or newly-overhauledĀ replacement product) the device or software or offer a full refund of the purchase price.
If, upon inspection, Iris deem the goods to be in working order and in condition satisfactory to its age, Iris will notify the customer with details of their findings. Iris reserve the right to apply an inspection fee in this circumstance.
If, upon inspection it is clear that any damage has occurred as a result of any of the exceptions listed in the section āExceptionsā, the warranty claim will be rendered void. We will notify the customer and advise theĀ cost to cover the inspection, replacement or repair of the goods as well as a return shipping cost. In this circumstance, Iris reserve the right to retain the goods until the costs quoted to remedy the warranty claim,Ā be it the inspection cost only or the inspection cost plus repair/replacement costs are paid in full.
Iris will endeavour to process warranty return claims as soon as possible so as not to inconvenience theĀ customer, however firm turn around times cannot be given.
LIMITATIONS OF LIABILITY
In no event shall Iris be liable for any loss for any incidental, special, indirect or consequential damagesĀ including any loss of profit or loss of opportunity whether or not caused by Irisās breach of this warrantyĀ document, whether resulting from the use, misuses, or inability to use Iris products. Iris are not liable for anyĀ costs relating to the removal and replacement of its products for and after warranty repair.
All costs associated with the return of goods for warranty service, including (without limitation) taxes, travel or transport, Product de-installation or re-installation (including but not limited to transducer de-installationĀ and re-installation costs), launch or docking fees, hauling, shipping or towing fees, communication charges, accommodation or subsistence, customs, or any other associated costs arising from the replacement of aĀ Product, are the Customerās responsibility.
Where products are controlled by export restrictions it is the customers sole responsibility to ensure the correct, legally binding export procedures are followed and Iris accepts absolutely no responsibility for anyĀ legal issues arising from the incorrect and/or unlawful shipment of controlled goods.
Where Iris have repaired or replaced controlled goods they will be returned to the customer using the correct, legally binding export control procedures of the territory from which they will be shipped. If it is necessary for Iris to obtain an export licence to return the goods, Iris are not responsible tor the timeframe it takes in order to obtain the licence and should the licence application be denied by the issuing authority Iris cannot be held responsible. Iris also reserve the right to levy charges in order to cover the time taken to apply for and management the application of any necessary export licences.
Products repaired or replaced under warranty will be warranted only for the remaining balance of the applicable original limited warranty period.
