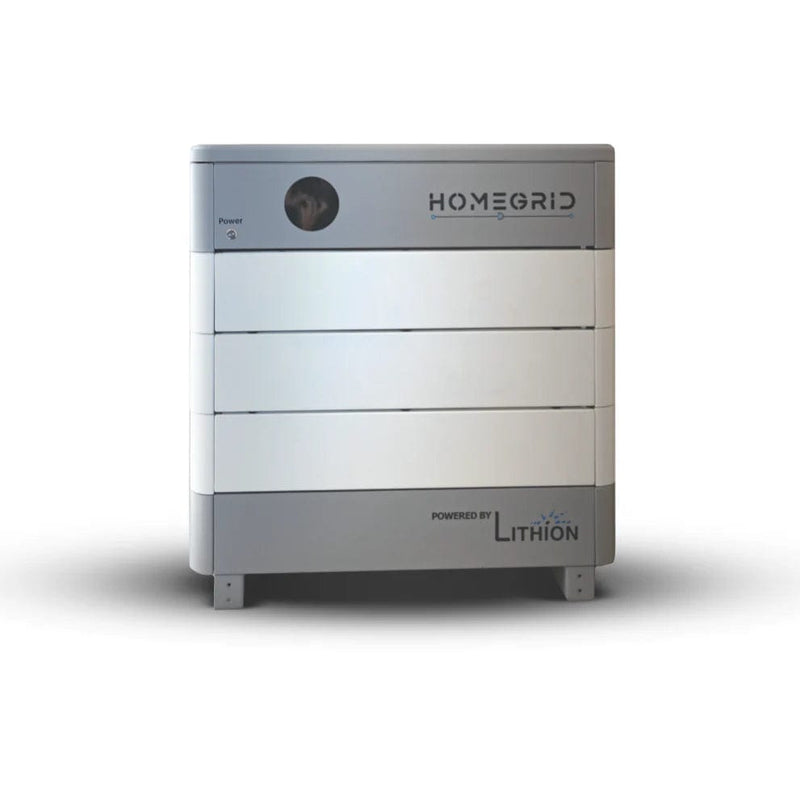

HomeGrid STACK'D 14.4kWh Lithium Home Battery System - 3X
Description
STACK'D SERIES
With the highest output and capacity range available, the Stack’d Series battery is the right solution for residential and small commercial storage projects. From small off-grid cabins, to peak rate TOU (time-of-use) offset, family homes in suburbia, and small commercial projects, the HomeGrid Stack’d Series battery is the proven best choice.S
- Output: up to 14.4 kW continuous
- Surge: up to 24 kW (10 sec)
- Capacity: up to 38.4 kWh per Stack (576 kWh total)
- Install: <30 minutes
- Heated modules and Outdoor Case available
- High-Voltage BMS coming soon
USA MADE. 10-Year Warranty. Strong. Powerful. Stackable.
Modular

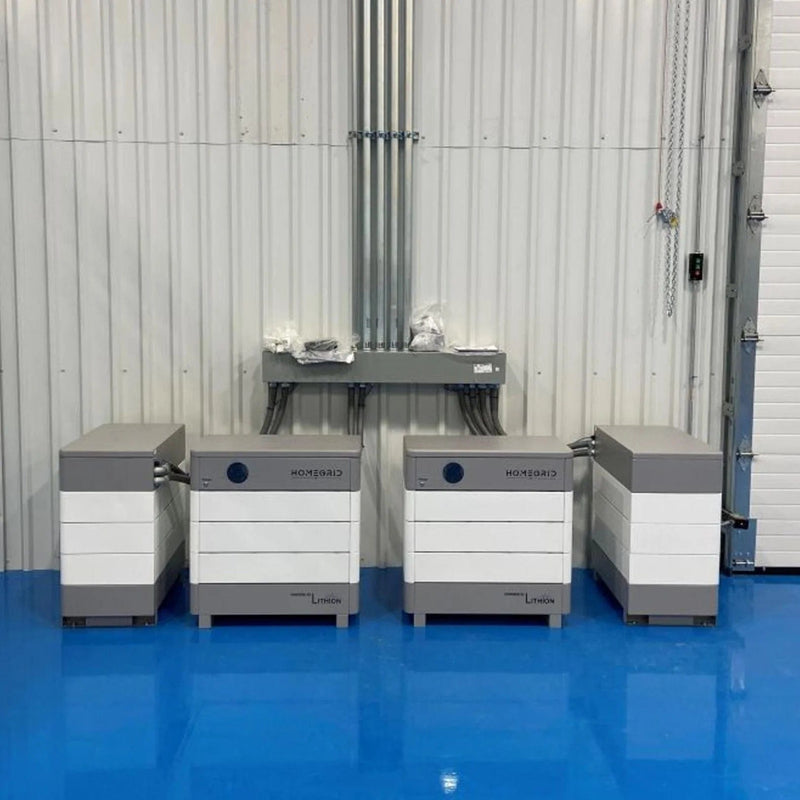

Feel the need to start small and expand in the future? Our Stack’d Series allows you to expand your capacity by allowing up to 8 modules in each stack. That equals a range of 9.6 kWh to 38.4 kWh per unit. You can run up to 10 Stacks in parallel. Up to 15 Compact Series (5 kWh) batteries can be run in parallel.
Whole-Home Backup
The competitors claim they can back up your entire home, but including central A/C and other large appliances is often a no-go. With up to 16.8 kW surge and 14.4 kW continuous power in our Stack’d Series, we can back up anything you’re using in your home. We also offer our Compact Series for smaller applications.
Safety
By pairing lithium-iron-phosphate battery technology with a low voltage 48v system and our IP55 water/dust resistance, we have one of the safest batteries on the market. Our proprietary BMS (Battery Management System) ensures ideal battery health, and we offer a 10-year, full-refund warranty.
Product Specifications
HomeGrid STACK'D 14.4kWh Lithium Home Battery System - 3X Product Specifications
Product Manual
Stack'd Install Guide
Stack'd Series Single Installation Video
Stack'd Series Parallel Installation Video
Stack'd Series Full Manual
Stack'd Series Specification Sheets
Product Warranty
HomeGrid Battery Warranty
Product FAQs
HomeGrid Product FAQs
1) Who is HomeGrid For?
There are two primary ways that customers of any size can benefit from owning a battery:
First, you can use the battery for backup power. If the grid goes down, you’re still covered. If disaster strikes, having a battery will allow you to continue to have electricity in your home or business, even if your utility company can’t provide it. You can choose to back up vital circuits (lights, wifi, etc), or back up your entire home. Several entirely off-grid projects are already supported by Homegrid systems.
The second reason is that you can actually save money by getting a battery. Even though solar can produce a lot of net power, it stops when the sun goes down. A battery allows you to store the excess power from solar during the day and use it to power your home or business at night.
HomeGrid is perfect for customers who:
Are grid-connected but experience power outages or need to maintain power for vital circuits.Many customers have systems in place that they need to keep online. Homegrid is a primary power supply that completely insulates the home from any utility outages. We can support all loads in a home or business, regardless of whether the grid is up or not. For residences, HomeGrid can deliver up to 14.4 kW of continuous power and 16.8 kW of peak power per unit, effectively replacing a 200 Amp utility service. For businesses, we have options all the way up to 100kW of continuous power with MWh capacities.
Have no utility power or choose to live off the grid. Homegrid systems are perfect for off-grid living. We can connect an inverter and solar/wind/water power to keep electricity running no matter what.
Want to eliminate demand charges and arbitrage time-of-use utility power rates? On its own, our battery systems can help offset high demand charges for homes and businesses. They can also be used for time-of-use price arbitrage, and when paired with solar/wind we can drastically reduce or eliminate electricity bill on a massive scale.
Want solar but cannot or do not wish to net-meter. HomeGrid does not require grid-tie which allows you to have solar even if your utility does not permit grid-tied solar. HomeGrid also enables you to have solar if you simply do not want to net-meter.
Need more power, but utility line upgrades are expensive. Some customers have an existing utility connection, but experience higher peak loads than the utility connection can deliver. Those customers can use a HomeGrid battery to provide the needed power and avoiding costly utility line upgrades.
Experience poor power quality and need to protect sensitive electronic equipment. Some customers experience unstable grid power with low line voltage or power spikes, which can damage sensitive electronics. The Homegrid systems provide a quality-controlled, consistent power supply.
2) How can I control HomeGrid?
Each battery has a display that shows vital data for the battery. Our residential batteries are inverter-agnostic, meaning that we are compatible with most inverter systems on the market. This gives our homeowners and installers a high degree of flexibility in the equipment they use. Control of the battery output is delegated to the inverter of choice, many of which have fantastic user interfaces and apps. Our larger products on the commercial scale have their own user interfaces built in.
3) What is HomeGrid?
Homegrid is a battery manufacturer based out of Henderson, Nevada. Our product applications range from powering tiny homes and cabins to utility-scale power storage and everywhere in between. A Homegrid setup can use and store energy from solar, wind, the grid, a generator, or any other power source.
4) Can HomeGrid work without internet?
All Homegrid products will work perfectly without the use of internet. Most inverters on the market will have user interfaces that are improved with an internet connection, but this is not typically needed.
5) Can HomeGrid Products start without any external power?
Yes. Homegrid batteries hold their charge for a very long time. We ship the battery with an existing state of charge. The moment a battery is connected to your system and turned on, the system begins to operate.
6) Can I use HomeGrid products off the grid?
Yes. Our batteries are perfect for off-grid use. Our LFP (lithium iron phosphate) formula means that our lifespan is much longer compared to other battery types. Our batteries are made to stand up to daily cycles for 25 years, making them the best choice for off-grid reliability.
It also means that we are safer! Other formulas can explode or leak acid if they are damaged or punctured, but LFP won’t. You wouldn’t want the device that powers your home to burn it down
