Blue Sea 3121 - SMS Panel Enclosure w/ELCI (16A) Ā 3 Blanks - 230V AC [3121]

Description

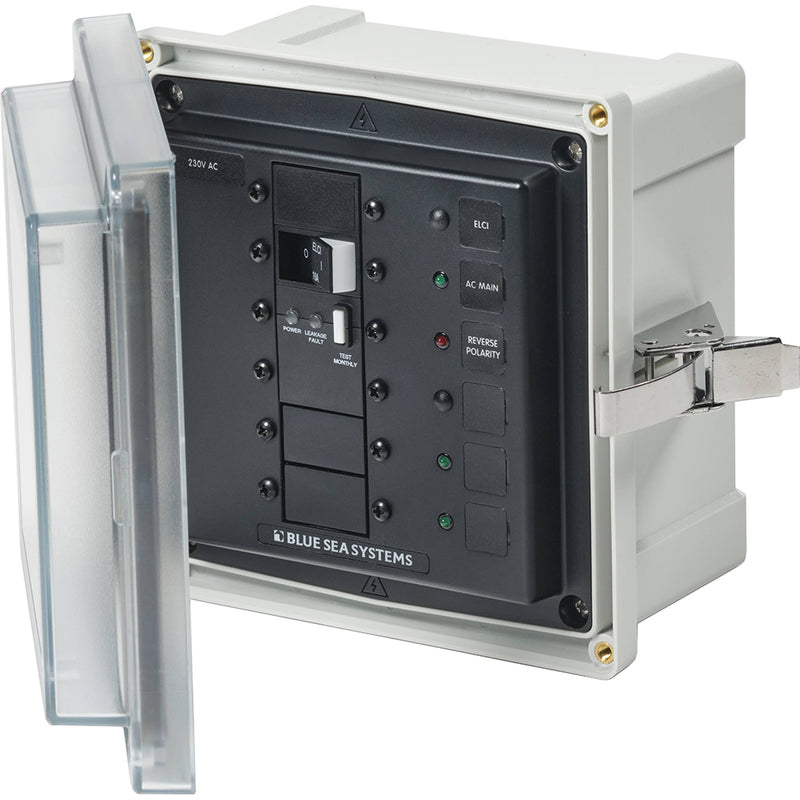

The 3121-panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices. Ā Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.

Features:

  • Blank apertures for custom breaker loadingĀ
  • Glass-filled polycarbonate base
  • Clear cover allows easy view of circuit breaker status
  • Overlapping cover for strength and increased gasket protection
  • Oversized, formed in place seamless PUR gasket
  • Easily removable stainless steel hinge pin for unobstructed installation
  • Stainless steel latch secures cover without penetrating the enclosure
  • Blank circuit positions accommodate Carling Technologiesā„¢ A and C Series Flat Rocker and ELCI Main circuit breakers
  • Includes waterproof glands
  • LED lights for backlighting and ON indication

In the Box:

  • 3121 Enclosure
  • Glands x 5
  • Labels
  • Mounting hardware
  • Instruction manual

Product Specifications

Blue Sea 3121 - SMS Panel Enclosure w/ELCI (16A) Ā 3 Blanks - 230V AC [3121] Product Specifications

Specifications Details
Circuit Breaker Type 1 Ɨ ELCI Main 230V, 16A, 30mA (3091) + 3 Ɨ Blank
AC/DC AC
Voltage 230V
Cover Screws & Hardware 10-32 stainless steel
Enclosure Size (H Ɨ W Ɨ D) 152 Ɨ 152 Ɨ 102 mm6.0" Ɨ 6.0" Ɨ 4.0"
Exterior Overall Dimensions (H Ɨ W Ɨ D) 192 Ɨ 188 Ɨ 120 mm7.6" Ɨ 7.4" Ɨ 4.7"
Glands Included 2 Ɨ (3124), 3 Ɨ (3125)
Labels Included 1 Ɨ AC Main, 1 Ɨ Reverse Polarity, 1 Ɨ ELCI, 30 Basic AC (4206)
Panel Voltage —
LEDs Installed 1 Ɨ Red Reverse Polarity 230V AC (8166)3 Ɨ Green ON 230V AC (8134)
Mounting Hardware Ƙ 1/4", #12, (6 mm)
Temperature Range -35°C to 66°C
Box Dimensions 7"H Ɨ 9"W Ɨ 10"L WT: 3.9 lbs
UPC 632085031213

*Sold as an Individual

Product Manual

Quick Guide (pdf)

Brochure (pdf)

Product Warranty

Blue Sea Systems Product Warranty

Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers, P12 Remote Displays, BatteryLink Chargers, Sure Eject AC Disconnects, M2 OLED Digital Meters and Mini OLED Digital Meters are warranted for a period of five years from the date of first purchase.Ā

All other Digital Meters are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Please contactĀ Customer Service for an RMA number prior to shipping any product back to Blue Sea Systems.
