Blue Sea 7701100 ML Solenoid 12V 500A w/Deutsch Connector [7701100]

Blue Sea Systems Logo
Top Authorized Dealer
Manufacturer Warranty Included
SKU OGL-81398
Save 35% Save 35%
Original price $278.99
Original price $278.99 - Original price $278.99
Original price $278.99
Current price $179.99
$179.99 - $179.99
Current price $179.99
Availability:
Low stock

Get it between -

Profile Pic

Have a question? Talk to one of our trusted experts today!

Instant Live Chat: Chat IconChat Now

Call or Text us: Phone Icon 415-481-4075

Price Match Policy

Price Match

Here at OffGrid Living, we want to offer you the best prices online.

If you happen to find a lower price for the same product, we will guarantee to match their price or beat their price. Note, this does not apply to all products in the store. Please reach out to us via email or chat if you want a price match or price beat.

For the policy to apply, please send us a screenshot, link, or any other evidence of the product being priced lower than ours before making the purchase.

Refer to our Price Match Policy Rules.

Refunds & Returns Policy

At OffGrid Living, we are proud to have the best refund and return policies in the industry. If you’re not satisfied with your purchase for any reason, you may return it to us within 30 days for a refund.

If you have a problem with our order (there are missing components, damages, or the product is not functioning), please reach out to us as quickly as possible. Some of the problems can be resolved by going through the product manual or the product FAQs.

Refer to our Refunds & Return Policy for more details.

Shipping & Delivery

Order Processing

Once we receive your order, we will send you a confirmation email. Then we will process the order by confirming that the product is in stock and ready for shipment. If any of the items in your order are back-ordered, we will reach to you via email or phone and you may choose to either wait or receive a 100% refund.

Please allow 1-3 days for processing your order.

Shipping

We ship to the lower 48 continental United States only at this time.

Shipping times and shipping method will depend on the specific product and brand you purchase. If you have any shipping question, feel free to ask on the chat or email us at info@offgridlivingsolutions.com.

We will send tracking information by email the same day the shipping tracking number is created/available.

Before you sign the shipping bill, please THOROUGHLY INSPECT YOUR ITEM. Signing for the receipt of a damaged product removes the liability of the shipping company and OffGrid Living. Once you accept your shipment as non-damage, your item is your property.

Delivery time

Shipping Timeline listed above is an estimate. Please call or message the web chat for precise ETAs.

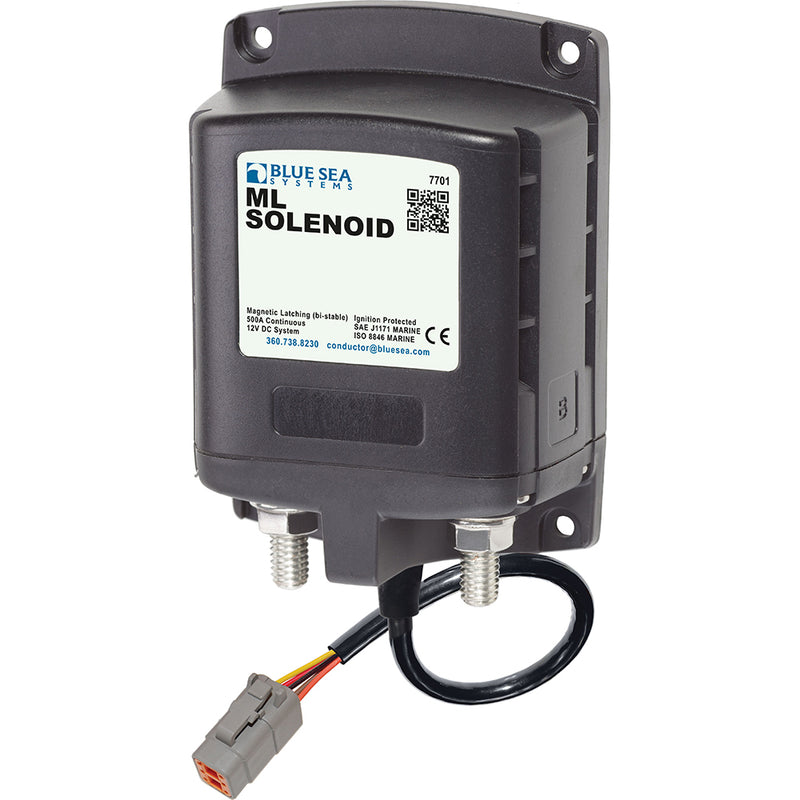

Blue Sea 7701100 ML Solenoid 12V 500A w/Deutsch Connector [7701100]

500 Amp magnetic latching (bi-stable) solenoid provides switching under load where manual control is not required.

Features:

  • 500 Ampere continuous rating for engine, inverter, house loads, and emergency battery combine
  • Magnetic latching draws no current in "ON" or "OFF" state, only draws current when changing state of switch
  • Silver alloy contacts provides high reliability for switching live loads
  • 3/8" -16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • 7/8" (22mm) stud length accepts multiple cable terminals
  • Label recesses for circuit identification
  • Remote Control Contura Switch included in retail package or sold separately if purchased by OEM in bulk

Product Specifications

Blue Sea 7701100 ML Solenoid 12V 500A w/Deutsch Connector [7701100] Product Specifications

Specifications Details
Control Circuit Connection Deutsch DTM / Amphenol ATM (retail units: tinned wires)
Nominal Voltage 12V DC
Manual Control No
Coil Function Bi-Stable – can be controlled with SPST/SPDT switch for normally open relay
Mounting #10
Amperage Operating Current (Continuous) 0A
Terminal Stud Torque 140 in-lb (15.82 Nm)
Continuous Rating 500A
Intermittent Rating (5 min) 700A
Cable Size to Meet Ratings 2 × 4/0 AWG
Stud Material Tinned Copper
Terminal Ring Diameter Clearance 1.18 in (29.97 mm)
Terminal Stud Length 0.875 in (22.23 mm)
Terminal Stud Size 3/8" - 16 (M10)
Weight 1.75 lb (0.79 kg)
