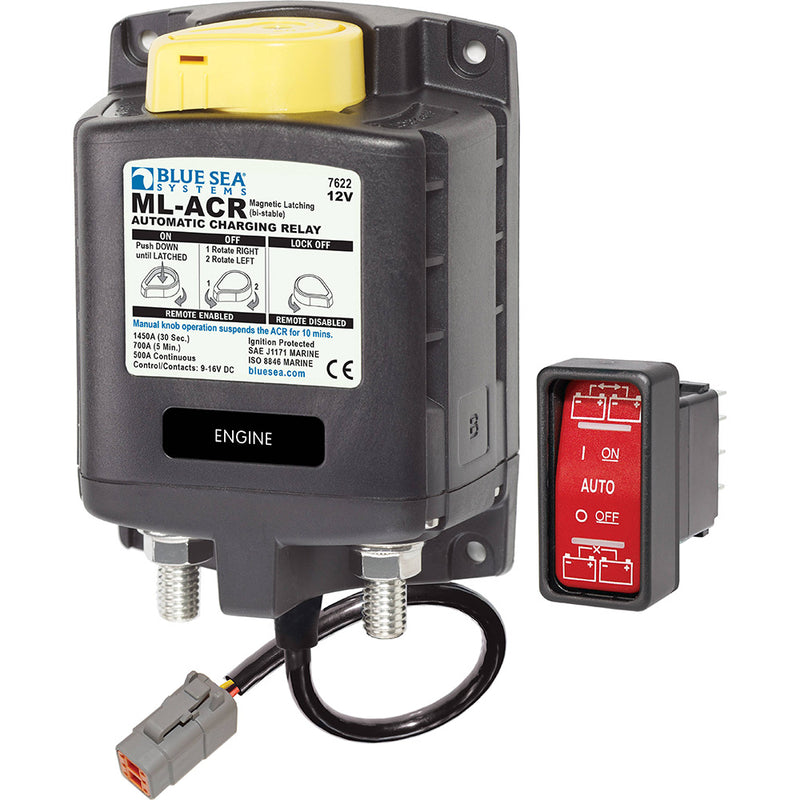

Blue Sea 7622100 ML ACR Charging Relay 12V 500A w/Manual Control Deutsch Connector [7622100]

Blue Sea Systems Logo
Top Authorized Dealer
Manufacturer Warranty Included
SKU OGL-81426
Save 38% Save 38%
Original price $467.99
Original price $467.99 - Original price $467.99
Original price $467.99
Current price $289.99
$289.99 - $289.99
Current price $289.99
Availability:
in stock, ready to be shipped

Get it between -

Profile Pic

Have a question? Talk to one of our trusted experts today!

Instant Live Chat: Chat IconChat Now

Call or Text us: Phone Icon 415-481-4075

Price Match Policy

Price Match

Here at OffGrid Living, we want to offer you the best prices online.

If you happen to find a lower price for the same product, we will guarantee to match their price or beat their price. Note, this does not apply to all products in the store. Please reach out to us via email or chat if you want a price match or price beat.

For the policy to apply, please send us a screenshot, link, or any other evidence of the product being priced lower than ours before making the purchase.

Refer to our Price Match Policy Rules.

Refunds & Returns Policy

At OffGrid Living, we are proud to have the best refund and return policies in the industry. If you’re not satisfied with your purchase for any reason, you may return it to us within 30 days for a refund.

If you have a problem with our order (there are missing components, damages, or the product is not functioning), please reach out to us as quickly as possible. Some of the problems can be resolved by going through the product manual or the product FAQs.

Refer to our Refunds & Return Policy for more details.

Shipping & Delivery

Order Processing

Once we receive your order, we will send you a confirmation email. Then we will process the order by confirming that the product is in stock and ready for shipment. If any of the items in your order are back-ordered, we will reach to you via email or phone and you may choose to either wait or receive a 100% refund.

Please allow 1-3 days for processing your order.

Shipping

We ship to the lower 48 continental United States only at this time.

Shipping times and shipping method will depend on the specific product and brand you purchase. If you have any shipping question, feel free to ask on the chat or email us at info@offgridlivingsolutions.com.

We will send tracking information by email the same day the shipping tracking number is created/available.

Before you sign the shipping bill, please THOROUGHLY INSPECT YOUR ITEM. Signing for the receipt of a damaged product removes the liability of the shipping company and OffGrid Living. Once you accept your shipment as non-damage, your item is your property.

Delivery time

Shipping Timeline listed above is an estimate. Please call or message the web chat for precise ETAs.

Blue Sea 7622100 ML ACR Charging Relay 12V 500A w/Manual Control  Deutsch Connector [7622100]

Description

500 Amp magnetic latching (bi-stable) relay automatically combines batteries during charging and isolates batteries when discharging and when starting engine.

Features:

  • Manual control switch provides an added level of safety allowing control with or without power, and offering LOCK OFF capability for servicing
  • Automatically manages the charging of two large battery banks
  • Allows paralleling of battery banks for emergency starting
  • 500 Ampere continuous rating to support high-output alternators
  • Magnetic Latch (ML)—ACR draws very low current (<40mA to monitor terminal voltage) in the "ON" or "OFF" states, and draws moderate current for very short time when changing state
  • Dual sensing—senses charge on both battery banks
  • Start Isolation (SI)—can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics
  • Engine Isolation (EI)—can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output
  • Senses charging on two battery banks
  • LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, or in Start or Engine isolation
  • 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • 7/8" (22mm) stud length accepts multiple cable terminals
  • Silver alloy contacts provide high reliability for switching live loads
  • Label recesses for circuit identification

Product Specifications

Blue Sea 7622100 ML ACR Charging Relay 12V 500A w/Manual Control  Deutsch Connector [7622100] Product Specifications

Specifications Details
Control Circuit Connection Deutsch DTM / Amphenol ATM (retail units: tinned wires)
Nominal Voltage 12V DC
Manual Control Yes (provides added safety with LOCK OFF capability)
Engine Isolation Condition Yes – Two engines running:• One relay open, one relay closed• Engine 1 & 2 batteries isolated to protect electronics
Mounting #10
Start Assist Condition Yes – Relay closed combining batteries to share power for low start battery
Start Isolation Condition Yes – Relay open isolating batteries to protect sensitive electronics
Amperage Operating Current 13mA @ 25°C nominal VDC
Amperage Operating Current (Changing State) <7.0A
Terminal Stud Torque 140 in-lb (15.82 Nm)
Continuous Rating 500A
Intermittent Rating (5 min) 700A
Cranking Rating (30 sec) 1450A DC
Cable Size to Meet Ratings 2 × 4/0 AWG
Live Current Switching 300A @ 12V DC
Switching Cycles 100,000
Terminal Ring Diameter Clearance 1.18 in (29.97 mm)
Terminal Stud Length 1.50 in (38.1 mm)
Terminal Stud Size 3/8" - 16 (M10)
Relay Contact Position Voltages Combine 30 sec: 13.5VCombine 90 sec: 13.0VOpen 10 sec: 12.35VOpen 30 sec: 12.75VOpen High: 16.2V
