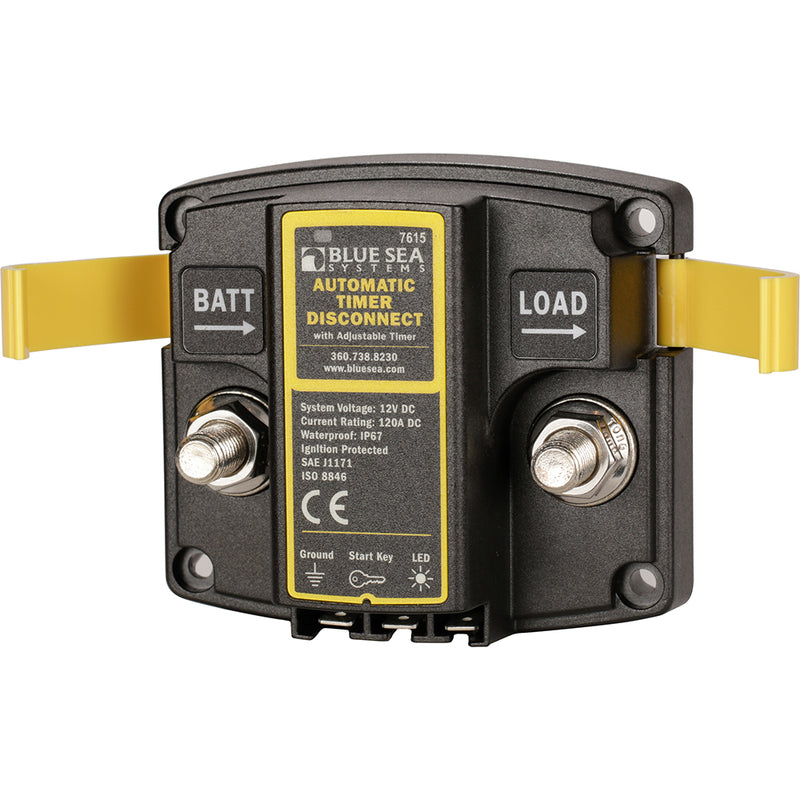

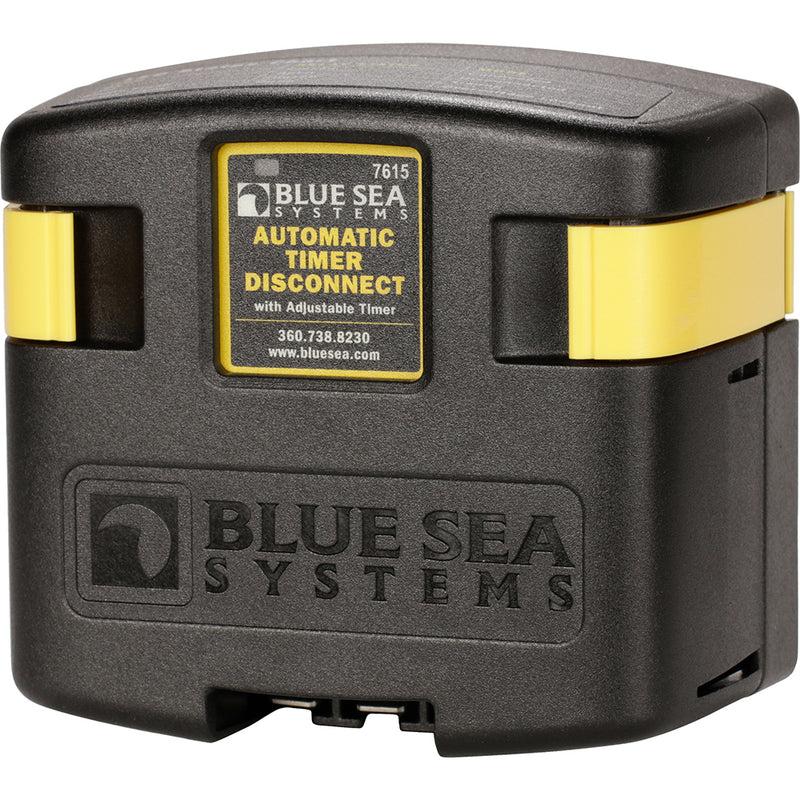

Blue Sea 7615 ATD Automatic Timer Disconnect [7615]

Description

Adjustable time or voltage based battery disconnect automatically shuts off devices to preserve battery power

Features:

  • 12V signal triggers relay to connect battery power to devices. When signal is removed the timer is activated and will disconnect devices after a preset time
  • Disconnect can be triggered based on time, low voltage, or removal of 12V signal
  • Low voltage will disconnect if time hasn_t been reached to preserve battery power
  • Time and voltage options can be turned off to allow 12V signal based disconnect
  • Clip-on cover insulates terminal connections
  • One-piece stainless flange nuts ensure safe and secure connections
  • Integrated LED indicates status

Product Specifications

Blue Sea 7615 ATD Automatic Timer Disconnect [7615] Product Specifications

Specification Details
Nominal Voltage 12V DC
Amperage Operating Current 175 mA (closed), 4 mA (open)
Continuous Rating 120A
Intermittent Rating 210A (5 min)
Terminal Stud Size 3/8"-16 (M10)
Terminal Stud Torque 140 in-lb (15.82 Nm)
Cable Size to Meet Ratings 1 AWG (50 mm²)
Maximum Cable Size 1/0 AWG (50 mm²)
Charge Sense Connect 13.0V (3 sec)
Charge Sense Disconnect 12.75V (10 sec)
Low Voltage Disconnect 11.0V, 11.5V, 12.0V (all 10 sec)
Disconnect Time Options 5 sec, 15 min, 30 min, 1 hr, 1.5 hr, 2 hr, 4 hr
Input Voltage Range 9.5–16V
Overvoltage Lockout 16.0V (5 sec)
Terminal Ring Diameter Clearance 1.12 in (28.45 mm)
Stud Material Tinned Copper
Weight 1.25 lb (0.57 kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Product Manual

Blue Sea Instructions

Owner's Manual (pdf)
