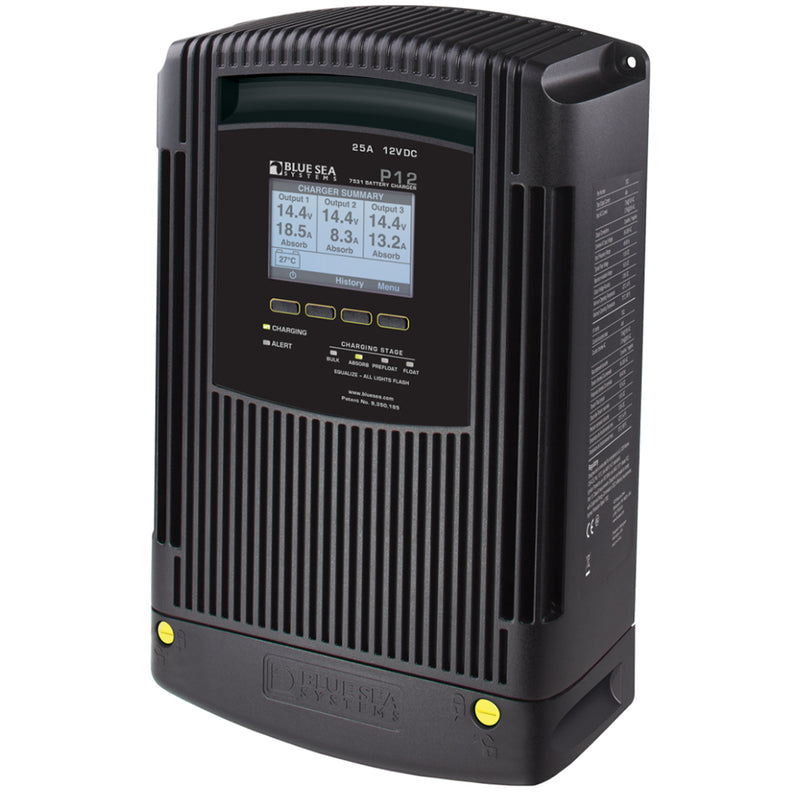

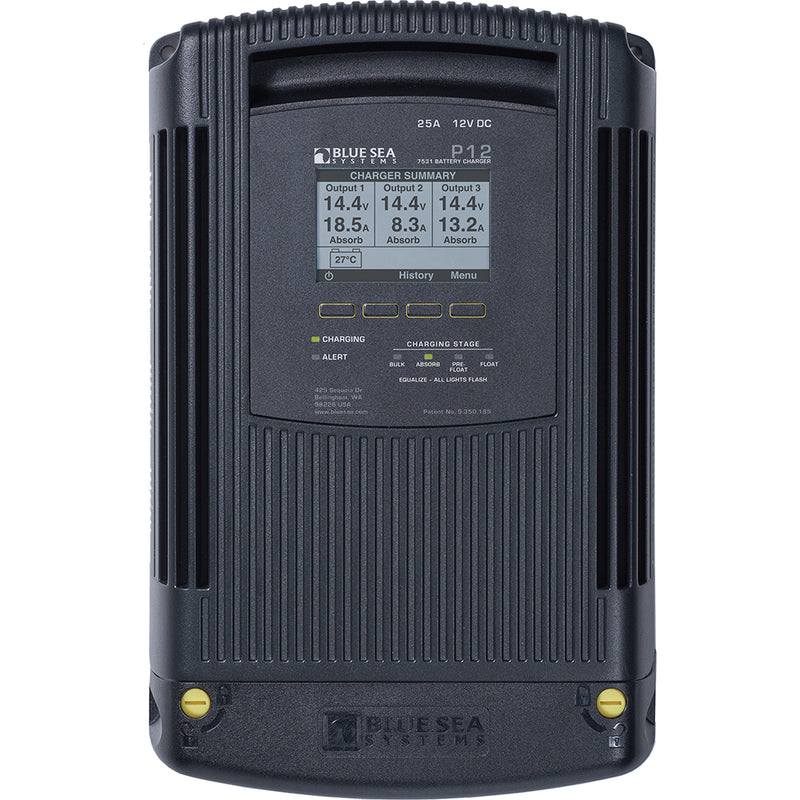

Blue Sea 7531 P12 Battery Charger - 12V DC 25A [7531]

Description

Four stage, three output, dry mount design, for use in harsh environments.

Features:

  • Rugged, finned aluminum case
  • PreFloat™ stage prevents over charging
  • Power factor corrected for efficient use of AC
  • Intuitive diagnostic screens
  • User defined charge profiles and customizable settings
  • Provides charging for up to three battery banks
  • Large, bright display
  • Multi-language: English, French, German, Italian, Spanish
  • Charge Coordination with Blue Sea Systems Automatic Charging Relays (ACR) controls ACR state ensuring proper float stage for each battery
  • Battery Temperature Compensation - adjusts charge voltage based on battery temperature
  • AC over and under voltage shut down and automatic restart
  • Over and under battery temperature protection - charger will not operate if battery temperature rises above or falls below a set value
  • DC over voltage and reverse polarity protection
  • Surge and short circuit protection

Product Specifications

Blue Sea 7531 P12 Battery Charger - 12V DC 25A [7531] Product Specifications

Attribute Details
Total Output Current 25A
Charging Banks 3
Charger Output - Amps 25A
Charger Output Voltage 12V DC
Charger Input - Voltage 120/240V AC
Input AC Current 4.5A @ 100V AC / 2.25A @ 200V AC
Universal AC Input Voltage 90-265V AC
AC Input Frequency 45-65Hz
Maximum Output Voltage 16V DC
Nominal Voltage 12V DC
Output Voltage Accuracy 0.05V
Typical Float Voltage 13.5V DC
Number of Outputs 1 negative / 3 positive
Stud Size M6
Ignition Protected Yes
Battery Types AGM / Flooded Lead Acid / Gel / TPPL (Thin Plate Pure Lead)
Recommended Battery Bank Sizes 330Ah Maximum (3 × Group 31) / 60Ah Minimum (2 × Group 27)
Screw Terminal Torque 10 in-lb (M3) / 15 in-lb (M4)
Stud Torque 80 in-lb (9.04 Nm)
Minimum Operating Temperature -20° C
Maximum Operating Temperature 70° C
Minimum Storage Temperature -30° C
Maximum Storage Temperature 80° C
Warranty 5 Year
Height 13.03" (330.96 mm)
Width 8.46" (214.88 mm)
Depth 3.66" (92.96 mm)
Weight 13.00 lb (5.9 kg)
Portable No
Box Dimensions 7"H x 11"W x 18"L
Shipping Weight 10 lbs
UPC 632085075316

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Product Manual

Owner's Manual (pdf)
Brochure (pdf)

Product Warranty

Blue Sea Systems Product Warranty

Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers, P12 Remote Displays, BatteryLink Chargers, Sure Eject AC Disconnects, M2 OLED Digital Meters and Mini OLED Digital Meters are warranted for a period of five years from the date of first purchase.

All other Digital Meters are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Please contact Customer Service for an RMA number prior to shipping any product back to Blue Sea Systems.

Product FAQs

N/A
