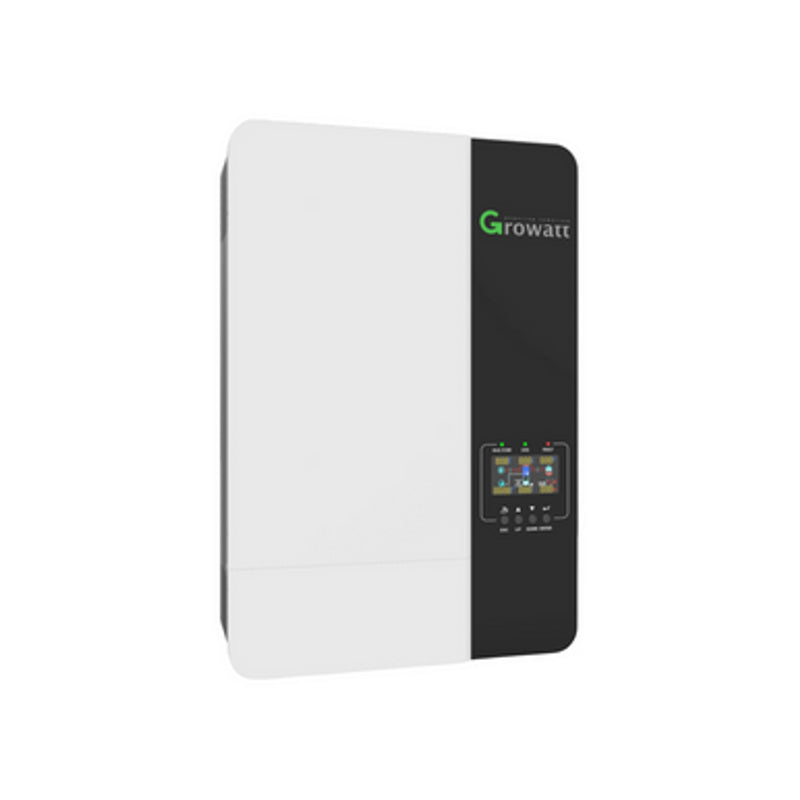

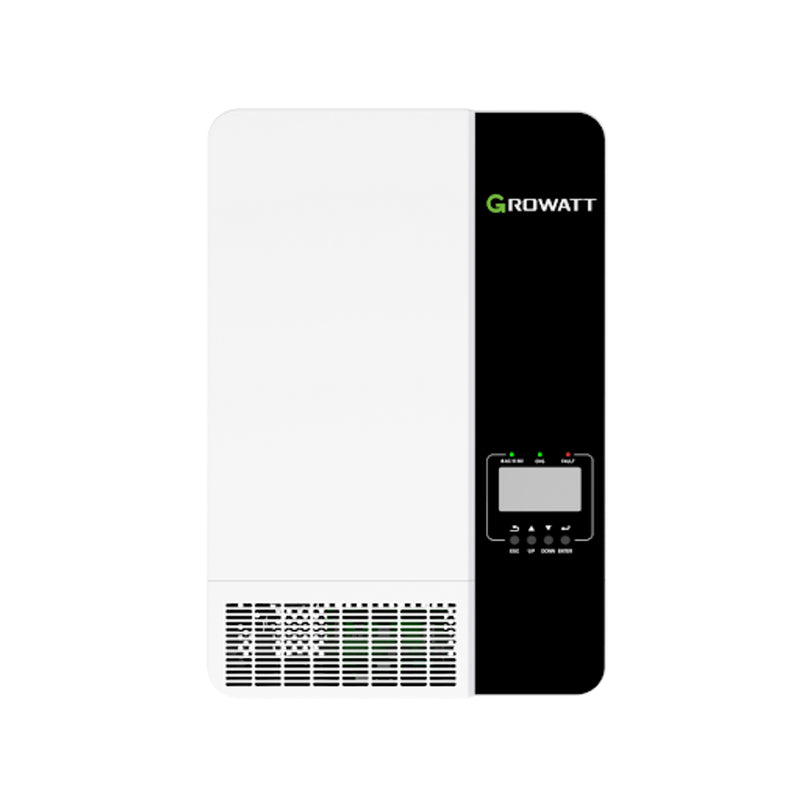

Growatt 5kW Stackable Off-Grid Inverter | SPF 5000US | UL 1741

Description

Growatt 5000-US multifunctional off-grid solar inverter, integrated with a MPPT solar charge controller, a high-frequency pure sine wave inverter, and a UPS function module all in one machine. Perfect for off-grid backup power and self-consumption applications.

Key Features:

  • Rated power 5KW, power factor 1
  • MPPT ranges 120V~430V, 450VDC
  • High-frequency inverter with small size and lightweight
  • Pure sine wave AC output
  • Solar and utility grid can power loads at the same time
  • With CAN/RS485 for BMS communication
  • Parallel operation up to 6 unit (only with battery connected)
  • WIFI/ GPRS remote monitoring (optional)

Included:
(1) Paralleling Kits
(1) Communication Cable

Please note: We recommend using this inverter with batteries.

Product Specifications

Growatt 5kW Stackable Off-Grid Inverter | SPF 5000US | UL 1741 Product Specifications

Specification Details
Rated Output Power 5,000W (5kW)
Surge Power 10,000W
Battery Voltage 48V nominal (operates between 40–60V)
AC Output Voltage 240V AC (requires ATS for 120V loads)
Max PV Input Power 6,000W
MPPT Operating Voltage 120–430V DC
Max Solar Charge Current 100A
AC Charge Current 80A
Parallel Capability Up to 6 units (requires battery connection)
Efficiency Up to 93% (peak)
Transfer Time 10ms typical, 20ms max
Dimensions (W x H x D) Not specified
Weight Not specified
Battery Compatibility Lithium and lead-acid batteries
Communication Ports CAN/RS485 for Battery Management System (BMS)
Monitoring Options Optional WiFi/GPRS remote monitoring via Growatt ShineLink

Product Manual

Growatt Data Sheet

Growatt User Manual

Product Warranty

Growatt Warranty

Service terms & conditions.

(1)Product coverage:Ā Including GrowattĀ PVĀ Inverters, Growatt Storage Inverters, GrowattĀ Smart Energy ManagementĀ Devices, Growatt Monitoring Software, EVĀ Chargers, PortableĀ PowerĀ StationĀ and Growatt BatteriesĀ and Accessories

(2)Country and Region coverage:Ā All country and regions, including China Hong Kong specialĀ administration region, Macao special administration region, Taiwan, excluding mainland ChinaĀ ONLY.Ā Warranty coverage is contingent upon the alignment of the country of sale, the country of installation, and the country of after-sales service.

(3)Warranty claim:Ā In general, serial number(S/N)must be provided in order to claim warranty.Ā Please store the original purchasing invoice/ installation documents or receipts carefully.Ā Customers need to present it for warranty claim if required.

(4)Warranty period:Ā The standard warranty period is from the date of installation on the installation certificate and no moreĀ than six months after the delivery date from Growatt.Ā A warranty extension may only be applied within a period of two years from the date of installation.

Growatt service commitment

(1) The service hotline for Growatt local service center varies, please check our local service centerĀ in your country/region. The service hotline in Shenzhen headquarter is +86 755 27471942. OurĀ service hotline offering general inquiry, technical support, etc.

(2) Service email address: service@ginverter.com. Customer is suggested to contact GrowattĀ service representative in your country/region directly.

(3) Warranty period and service mode. We offer different service solutions for different product, seeĀ details on below table


Note: If warranty period was specified on sales order, then warranty period would obey to salesĀ order.

(4) Installation and commissioning:Growatt don’t offer installation service, don’t offer onsiteĀ debugging service for monitoring device. Growatt can offer onsite commission service for big scaleĀ plant (inverter capacityļ¼ž500kw)
