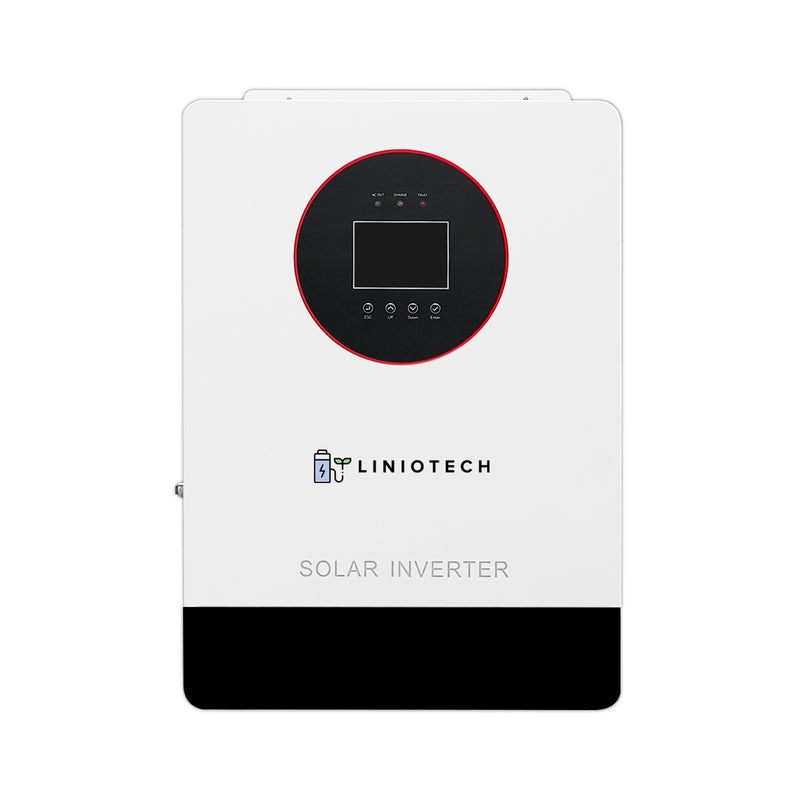

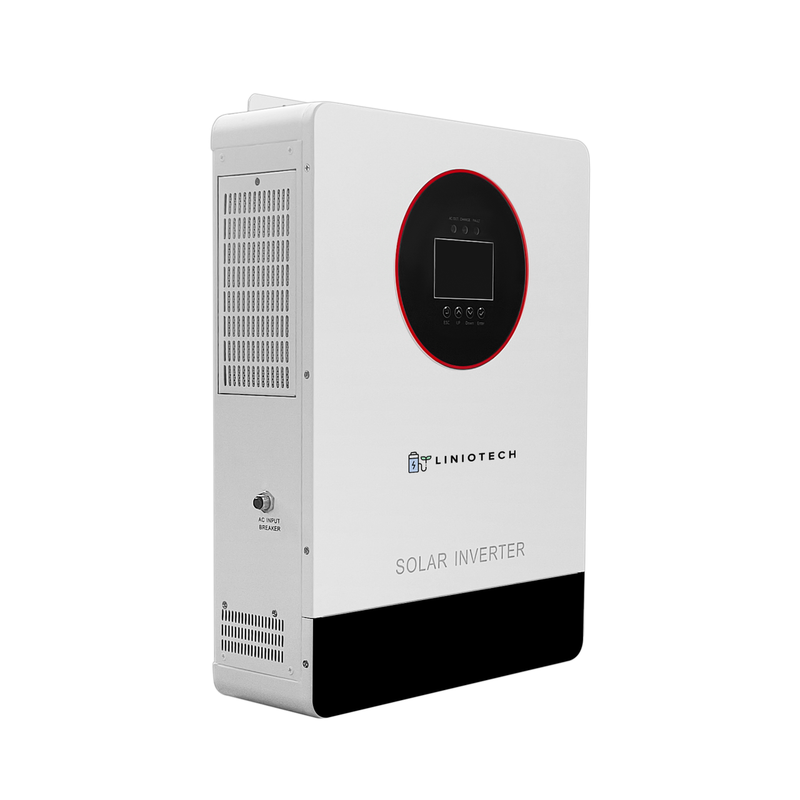

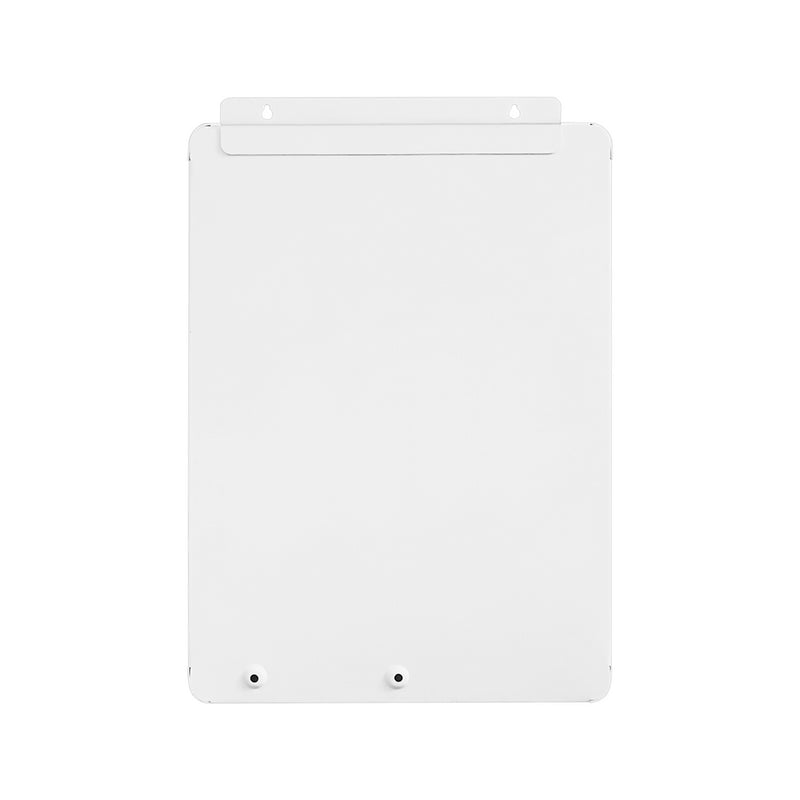

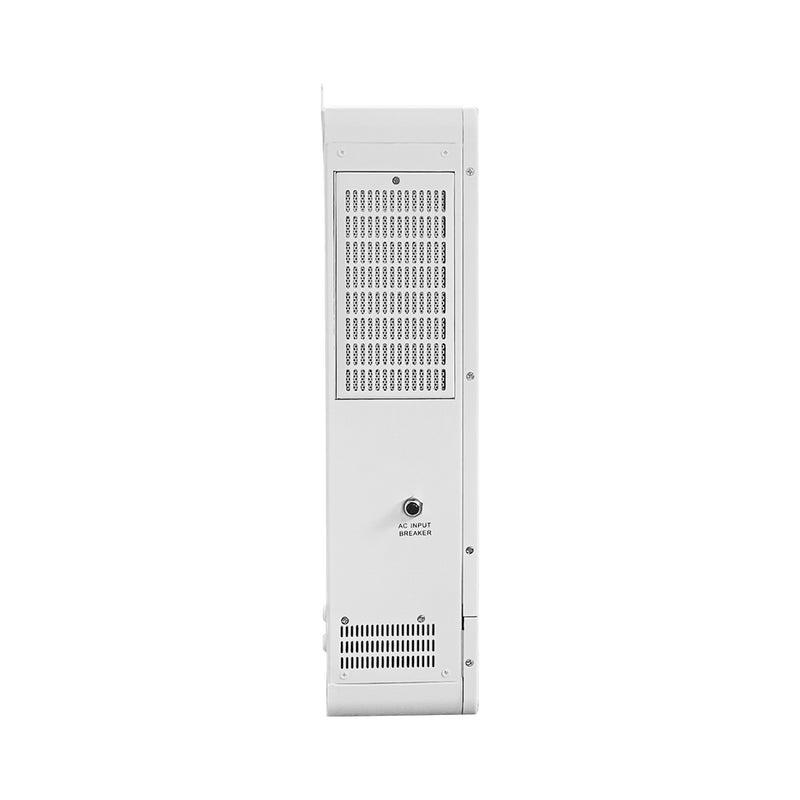

LINIOTECH 3600W Off-Grid Inverter | 4000W PV Input | 3600W Output | 300V VOC Input | 48V 120 Single Phase | All-In-One Solar Inverter

Liniotech Logo
Top Authorized Dealer
Manufacturer Warranty Included
SKU LNT3600-48
Original price $699.00 - Original price $699.00
Original price
$699.00
$699.00 - $699.00
Current price $699.00
Availability:
in stock, ready to be shipped

Get it between -

Profile Pic

Have a question? Talk to one of our trusted experts today!

Instant Live Chat: Chat IconChat Now

Call or Text us: Phone Icon 415-481-4075

Price Match Policy

Price Match

Here at OffGrid Living, we want to offer you the best prices online.

If you happen to find a lower price for the same product, we will guarantee to match their price or beat their price. Note, this does not apply to all products in the store. Please reach out to us via email or chat if you want a price match or price beat.

For the policy to apply, please send us a screenshot, link, or any other evidence of the product being priced lower than ours before making the purchase.

Refer to our Price Match Policy Rules.

Refunds & Returns Policy

At OffGrid Living, we are proud to have the best refund and return policies in the industry. If you’re not satisfied with your purchase for any reason, you may return it to us within 30 days for a refund.

If you have a problem with our order (there are missing components, damages, or the product is not functioning), please reach out to us as quickly as possible. Some of the problems can be resolved by going through the product manual or the product FAQs.

Refer to our Refunds & Return Policy for more details.

Shipping & Delivery

Order Processing

Once we receive your order, we will send you a confirmation email. Then we will process the order by confirming that the product is in stock and ready for shipment. If any of the items in your order are back-ordered, we will reach to you via email or phone and you may choose to either wait or receive a 100% refund.

Please allow 1-3 days for processing your order.

Shipping

We ship to the lower 48 continental United States only at this time.

Shipping times and shipping method will depend on the specific product and brand you purchase. If you have any shipping question, feel free to ask on the chat or email us at info@offgridlivingsolutions.com.

We will send tracking information by email the same day the shipping tracking number is created/available.

Before you sign the shipping bill, please THOROUGHLY INSPECT YOUR ITEM. Signing for the receipt of a damaged product removes the liability of the shipping company and OffGrid Living. Once you accept your shipment as non-damage, your item is your property.

Delivery time

Shipping Timeline listed above is an estimate. Please call or message the web chat for precise ETAs.

LINIOTECH 3600W Off-Grid Inverter | 4000W PV Input | 3600W Output | 300V VOC Input | 48V 120 Single Phase | All-In-One Solar Inverter

Description

Power Your Solar Energy System with the High-Performance Liniotech 3.6kW Off-Grid Inverter — Built for Efficiency, Durability & Intelligent Energy Management

The Liniotech LNT3600-48 is a premium 3600W off-grid solar inverter designed for high-efficiency power conversion in residential, commercial, or remote energy systems. Engineered with advanced MPPT charge controller technology, robust safety features, and intelligent battery management, this all-in-one hybrid solar inverter delivers stable, clean, and reliable energy from your solar panel array directly to your home or battery bank.

Key Features & Benefits:

  •  Pure Sine Wave Output (120V Single Phase) – Delivers smooth, reliable AC power safe for sensitive electronics and appliances.

  •  Built-In 4000W MPPT Solar Charge Controller – Automatically tracks the maximum power point to maximize solar efficiency and power output.

  •  Wide PV Input Voltage Range (Max 300VDC VOC) – Compatible with high-voltage solar arrays for flexible solar panel configurations.

  •  Supports 48V Lithium & Lead-Acid Batteries – Fully compatible with multiple battery types, including Liniotech 5.12kWh lithium batteries.

  •  Fast 80A Charging Current – Quickly recharge batteries to full capacity in as little as 2 hours (based on 5.12kWh battery).

  •  Battery-Free Operation Supported – System can run directly off solar power when battery is not present.

  •  One-Key Factory Reset – Reset to default settings with a single button.

  •  Smart Monitoring via WiFi, RS485, GPRS, USB – Real-time system diagnostics and control via mobile app (iOS & Android).

  •  Built-in Lithium Battery Wake-Up & Anti-Dust Kit – Designed to operate efficiently even in harsh and dusty environments.

  •  Stackable Design – Parallel up to 6 Units – Expand power capacity up to 21.6kW for larger off-grid systems or future upgrades.

Ideal for Off-Grid, Backup, and Remote Solar Energy Systems

Whether you're powering a residential solar system, off-grid cabin, mobile solar RV setup, or building an emergency backup power solution, the Liniotech 3.6kW all-in-one hybrid inverter offers unmatched performance, reliability, and expandability.





Product Specifications

LINIOTECH 3600W Off-Grid Inverter | 4000W PV Input | 3600W Output | 300V VOC Input | 48V 120 Single Phase | All-In-One Solar Inverter Product Specifications

⚙️ Technical Specifications:

  • Rated Output Power: 3600W / 3.6kW

  • Max PV Input Power: 4000W

  • Battery Voltage: 48VDC

  • Max PV VOC: 300VDC

  • Max PV Input Current: 22A

  • Max Charging Current: 80A (Adjustable 0A–100A)

  • Output Voltage: 120V AC ±5%

  • Frequency: 50Hz / 60Hz Auto Detection

  • Efficiency: ≥99% MPPT Charging Efficiency

  • Self-Consumption: <25W

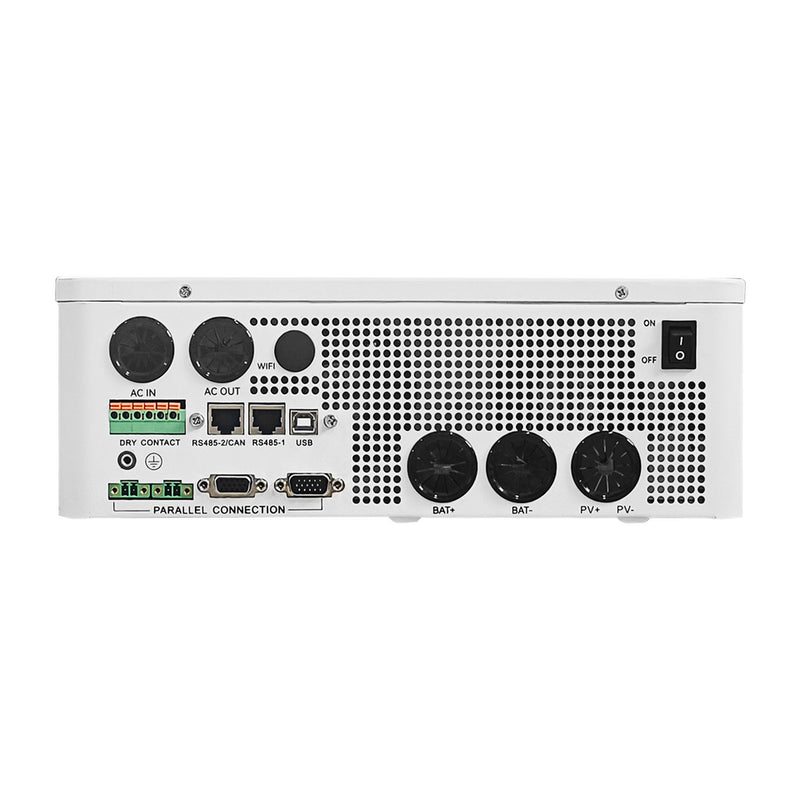

  • Communication Ports: RS485, USB, WiFi, GPRS, Dry Node

  • Supported Battery Types: LFP, AGM, GEL, Flooded (Multiple Brands Supported)


 Liniotech MPPT100-48HV – Built-In High Voltage Solar Charge Controller

This inverter incorporates the Liniotech MPPT100-48HV, a reliable and high-efficiency solar MPPT charge controller that intelligently regulates solar power to charge your batteries at optimal rates.

  • MPPT Voltage Range: 150–300VDC

  • Max Solar Panel Power: 4000W

  • Max String Current: 22A

  • Battery Voltage: 48V Nominal

  • Charging Voltage Range: 48V–60V (Default 56V)

  • Fast Charge Capability: Charge 5.12kWh Liniotech battery in ~2 hrs @ 80A

  • Built-In DC Disconnect & Battery Breakers for added safety

Product Manual

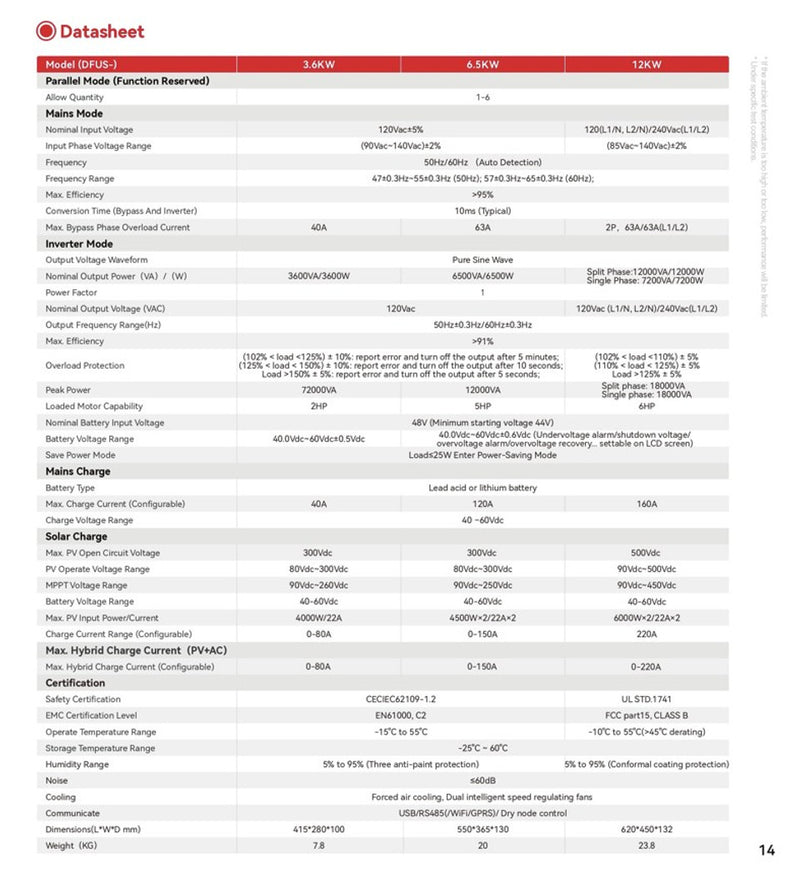

LINIOTECH 3600W Data Sheet

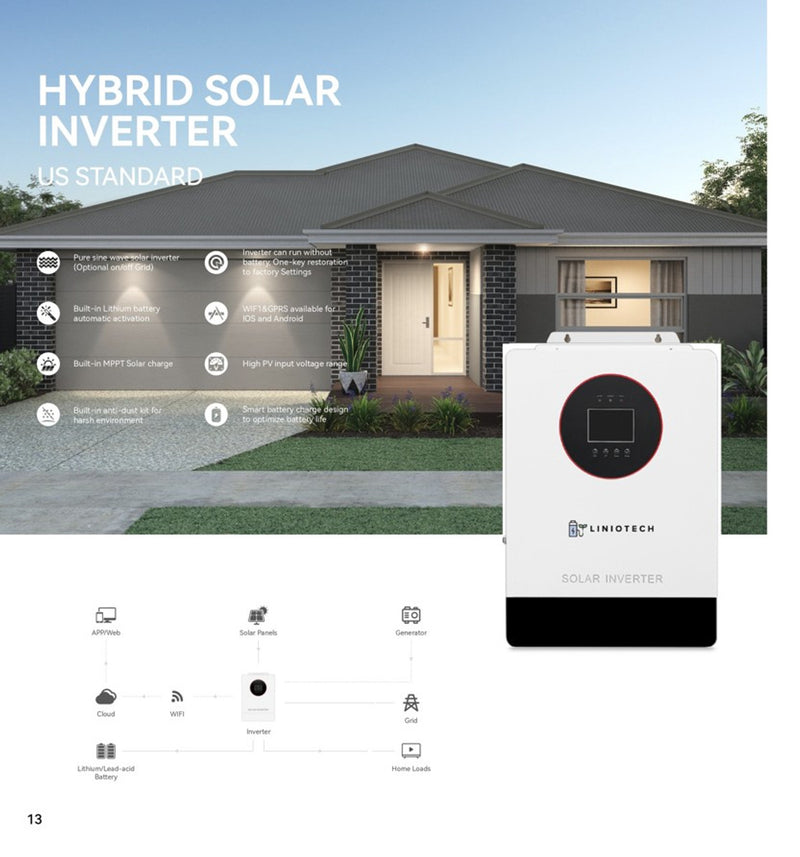

Liniotech Brochure

Product Warranty

3 years warranty!

Product FAQs

N/A
